The TP-1xl and TP-2xl Video Line Transmitter and Receiver
4
4.2 Your TP-1xl Video Line Transmitter

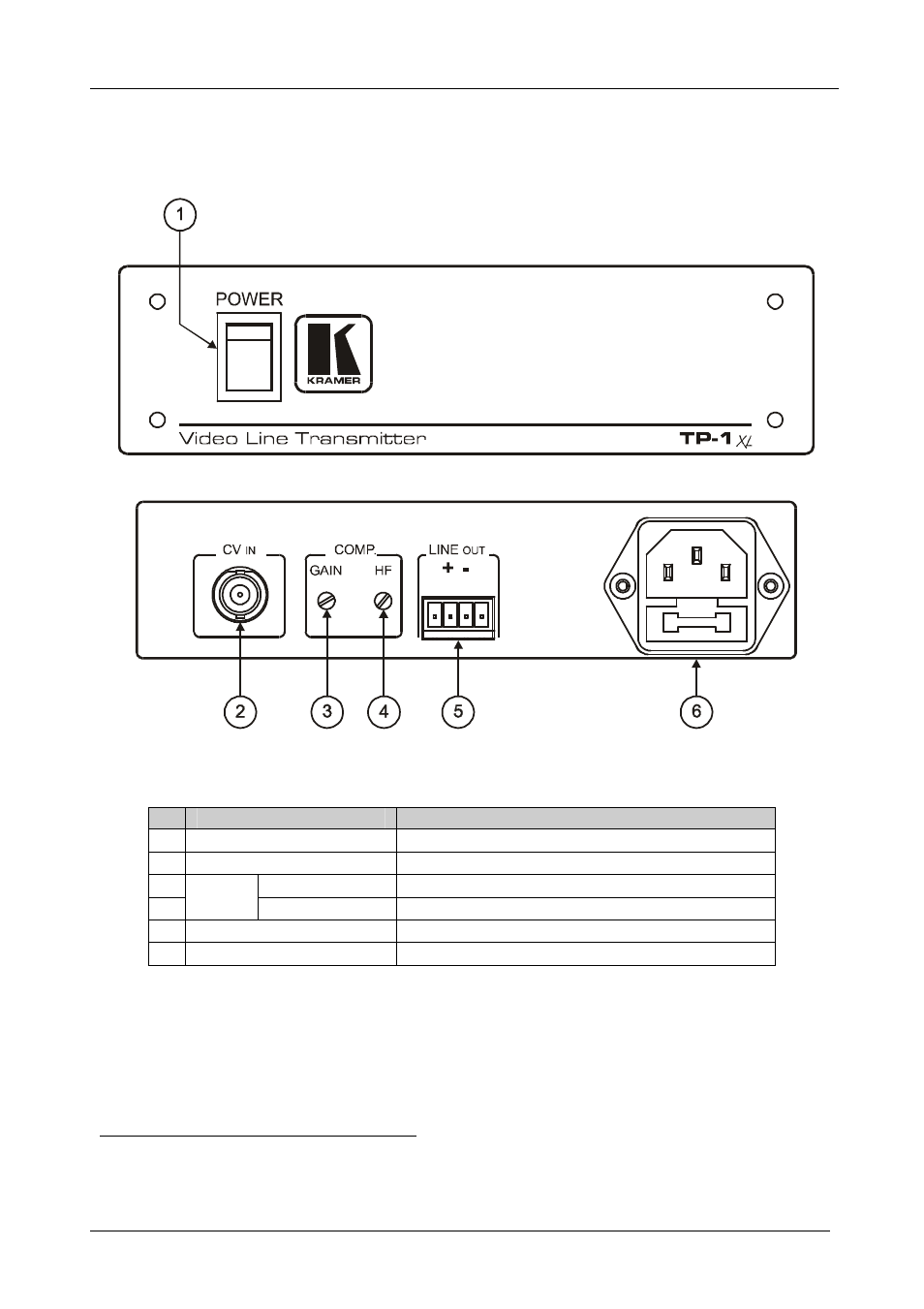

Figure 1 and Table 1 define the TP-1xl:
Figure 1: TP-1xl Video Line Transmitter
Table 1: TP-1xl Video Line Transmitter Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
2 CV IN BNC Connector Connect to the composite video source
3 GAIN Trimmer Turn to adjust the output signal level 1
4
COMP
HF Trimmer Turn to adjust the output signal equalization 1
5 LINE OUT Terminal Block 2 Connect to the LINE IN terminal block on the TP-2xl
6 Power Connector with Fuse AC connector enabling power supply to the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 The second and third blocks marked + and – (video + and video – respectively)
