The 711xl and 712xl Video-Audio Line Transmitter and Receiver
13
6.3 Your 712xl Video-Audio Line Receiver
Figure 8 and Table 5 define the
712xl:

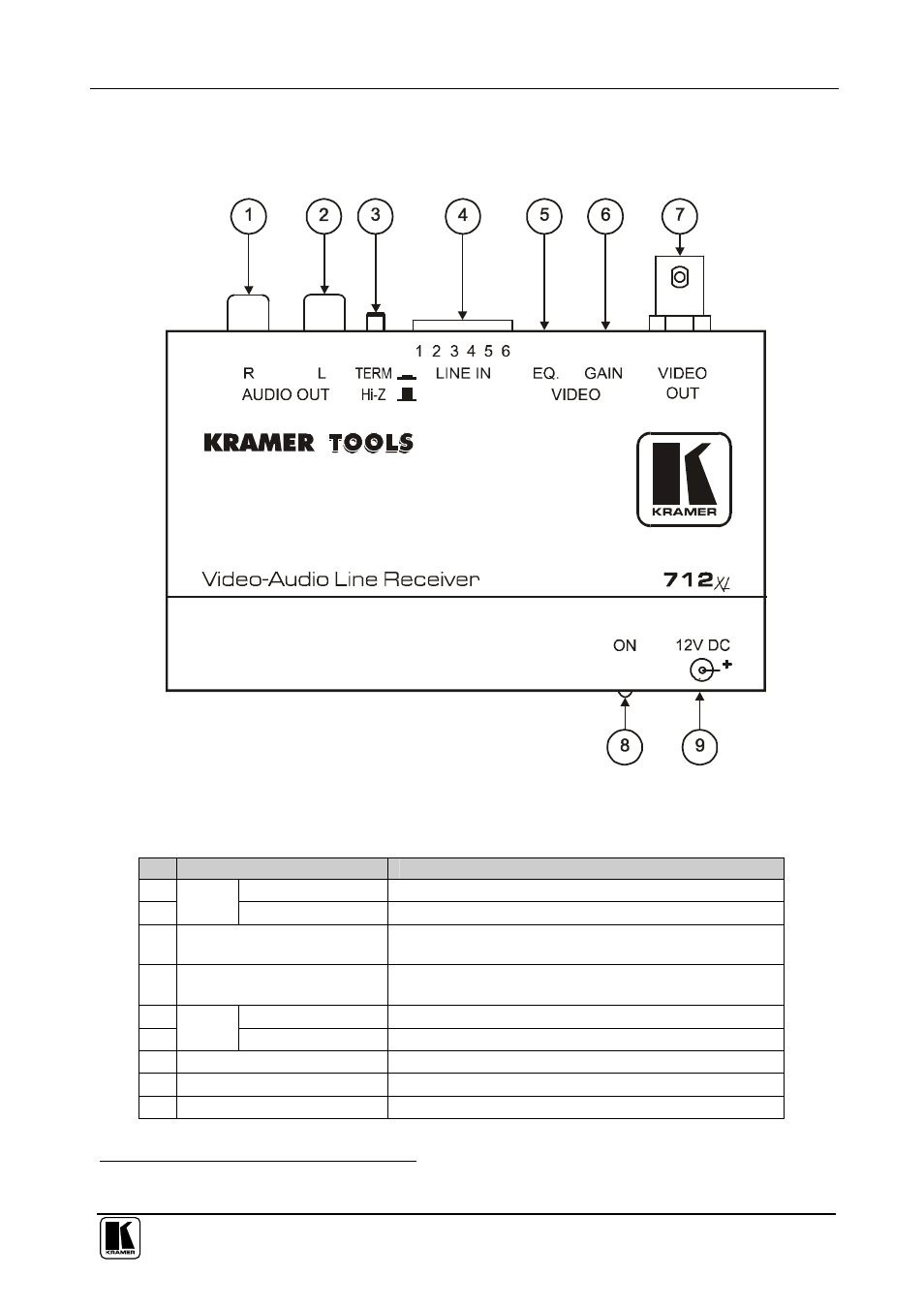

Figure 8: 712xl Video-Audio Line Receiver
Table 5: 712xl Video-Audio Line Receiver Features
#
Feature
Function
1
R RCA Connector
Connect to the right unbalanced stereo audio acceptor
2
AUDIO
OUT
L RCA Connector
Connect to the left unbalanced stereo audio acceptor
3
TERM Push Button
When pressed, terminates the unit that is the last in the
line (not looped)
4
LINE IN 6-pole Detachable
Terminal Block Connector
Connect to the LINE OUT 6-pole detachable block
connector of the 711xl (see section 6.4 for pin-out)
5
EQ. Trimmer
Turn to adjust the output signal equalization
1
6
VIDEO
GAIN Trimmer
Turn to adjust the output signal level
1
7
VIDEO OUT BNC Connector Connect to the composite video acceptor
8
ON LED
Lights when receiving power
9
12V DC
+12V DC connector for powering the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
