The 708 Video Audio Line Receiver
10
5.3 Connecting the 708 Video Audio Line Receiver
To connect the 708 as illustrated in the example in Figure 6, do the following:
1. Connect the VIDEO OUT BNC connector to a composite video acceptor
(for example, a display).
2. Connect the AUDIO OUT RCA connector to an unbalanced mono audio
acceptor (for example, an amplifier with speakers).
3. Connect a transmitter to the LINE IN RJ-11 connector.
4. If required, connect the LOOP RJ-11 connector to the LINE IN RJ-11
connector
2
of an additional 708 unit.
5. Connect a 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
6. If required, adjust the EQ (equalization) and VIDEO GAIN levels, by
inserting a screwdriver into each of the small holes and carefully rotating
them.
Display
Amplifier
From
the Transmitter

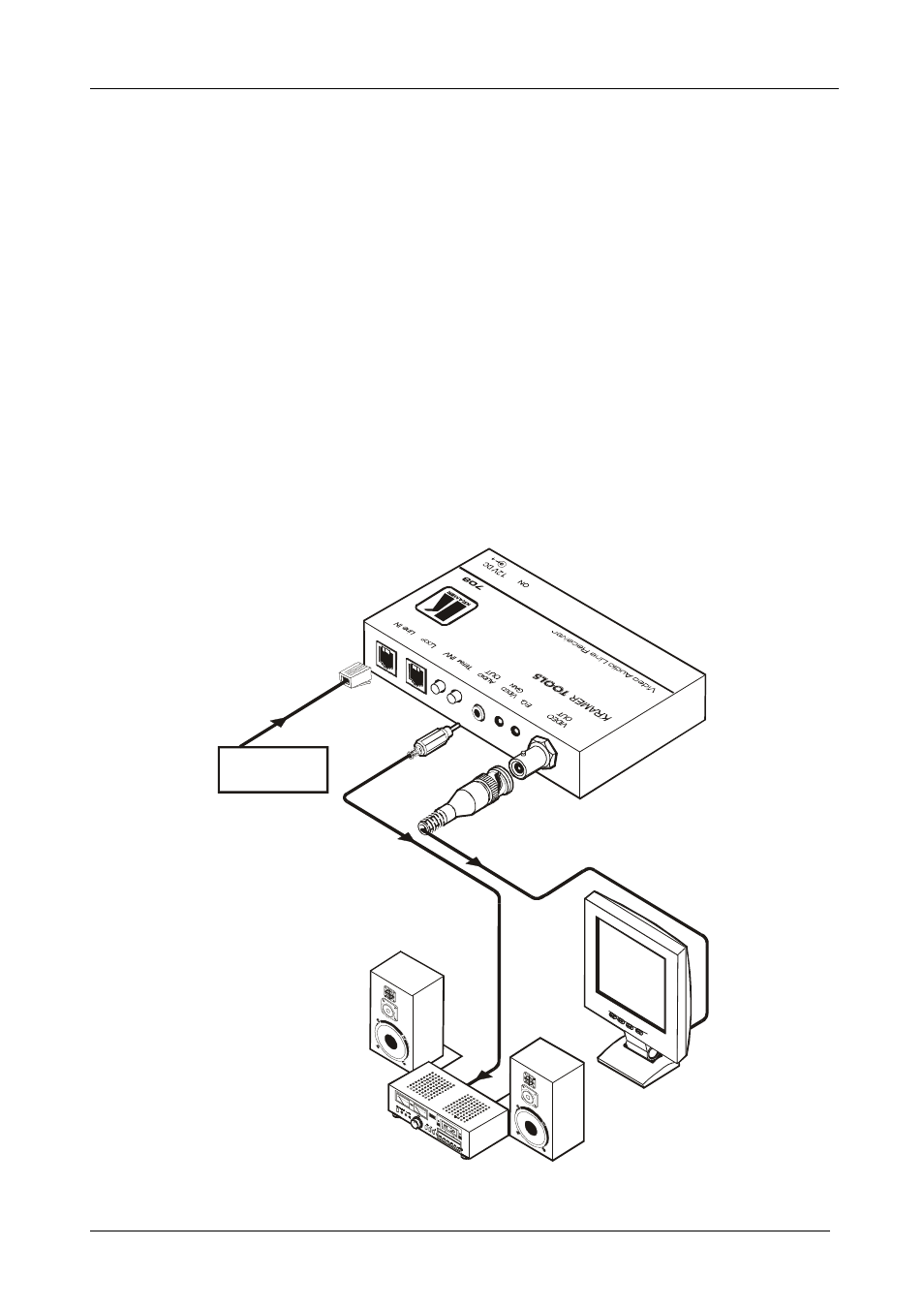

Figure 6: Connecting the 708 Video Audio Line Receiver
