The 707 and 708 Video Audio Line Transmitter and Receiver
5
4.1 Your 707 Video Audio Line Transmitter
Figure 1 and Table 1 define the
707:

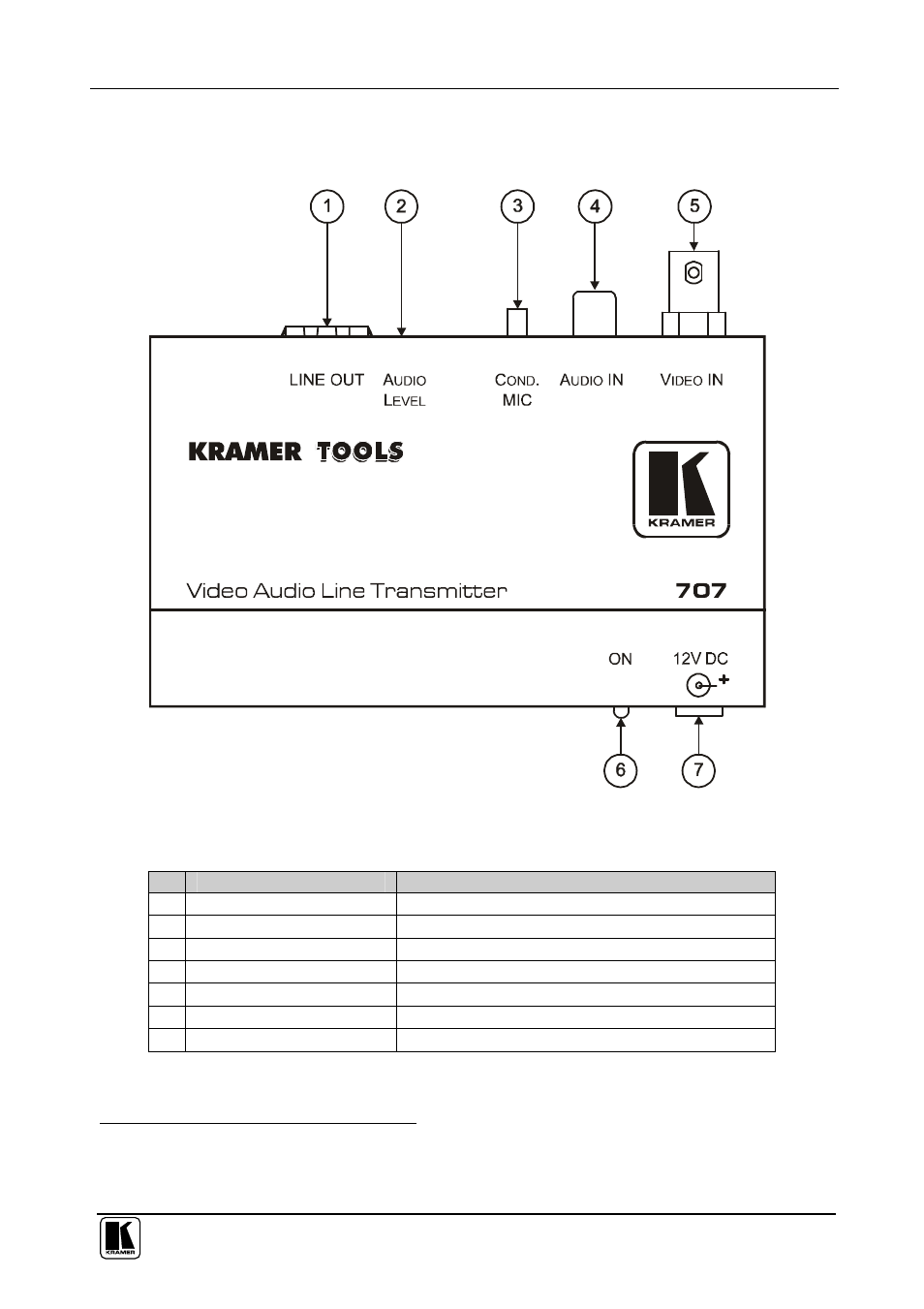

Figure 1: 707 Video Audio Line Transmitter
Table 1: 707 Video Audio Line Transmitter Features
#
Feature
Function
1
LINE OUT
RJ-11 Connector Connect to the LINE IN connector of the
708
2
AUDIO LEVEL
Trimmer
Turn to adjust the audio level
1
3
COND. MIC
Push Button
Press to provide power to the microphone
2
4
AUDIO
IN
RCA Connector
Connect to the unbalanced mono audio source
5
VIDEO IN
BNC Connector
Connect to the composite video source
6
ON
LED
Lights when receiving power
7
12V DC
+12V DC connector for powering the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
2 Press this button when a condenser microphone is used with the 707. For other audio sources, you do not need to press this
button
