The 709 and 710 Y/C Line Transmitter and Receiver
11
5.2 Your 710 Video-Audio Line Receiver
Figure 5 and Table 4 define the
710:

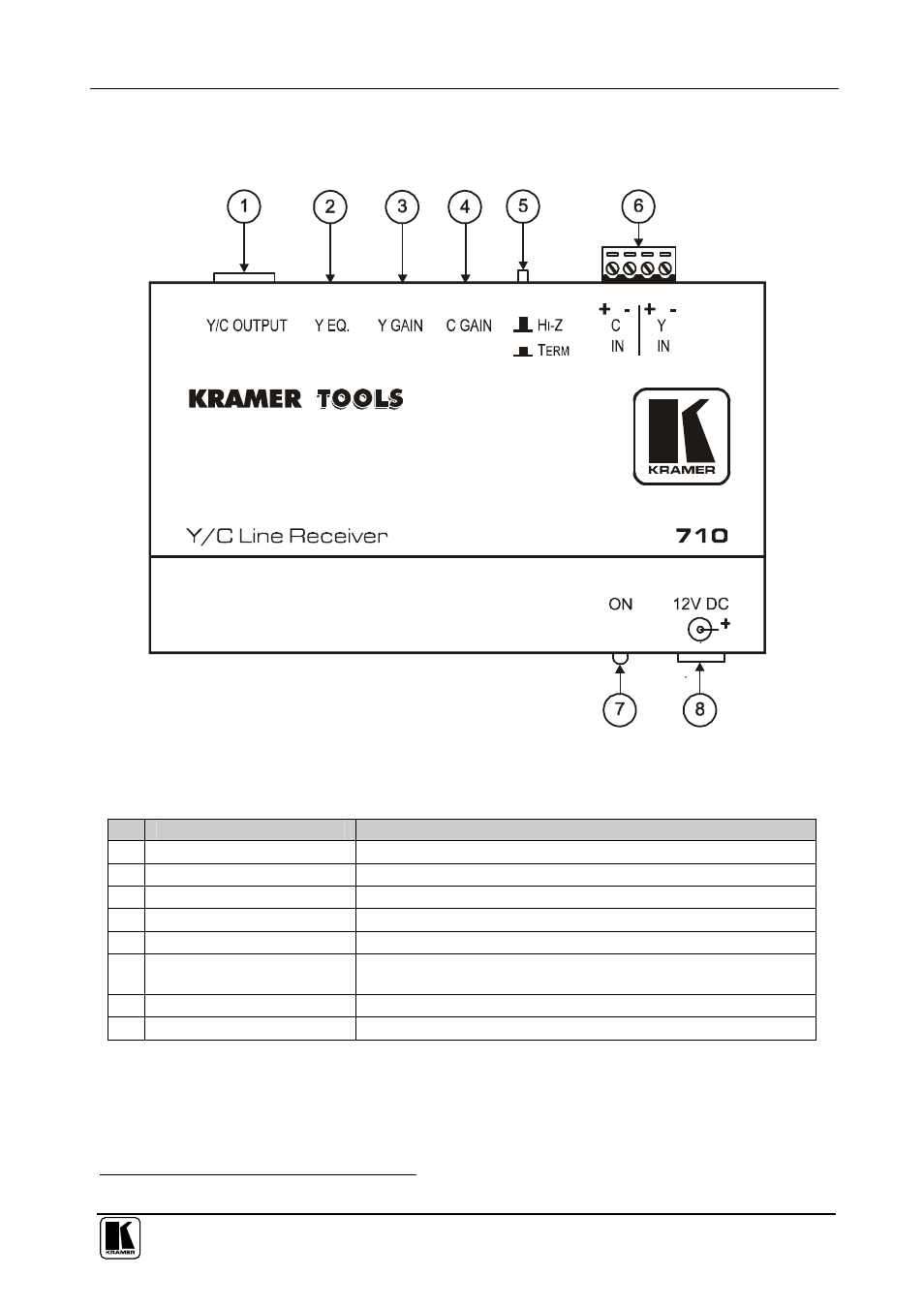

Figure 5: 710 Y/C Line Receiver
Table 4: 710 Y/C Line Receiver Features
#
Feature
Function
1
Y/C OUTPUT
4p
Connector Connect to the s-Video acceptor
2
Y EQ.
Trimmer
Turn to adjust the Y cable equalization
1
3
Y GAIN
Trimmer
Turn to adjust the Y gain
1
4
C GAIN
Trimmer
Turn to adjust the Chroma gain
1
5
Hi-Z / TERM
Push Button
Press to terminate the unit that is the last in the line (not looped)
6
C IN, Y IN
Terminal Block
Connector
Connect to the C OUT and Y OUT terminal block connector of the
709
7
ON
LED
Lights when receiving power
8
12V DC
+12V DC connector for powering the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
