The 711xl and 712xl Video-Audio Line Transmitter and Receiver
16
6.2 Your 712xl Video-Audio Line Receiver
Figure 9 and Table 6 define the
712xl:

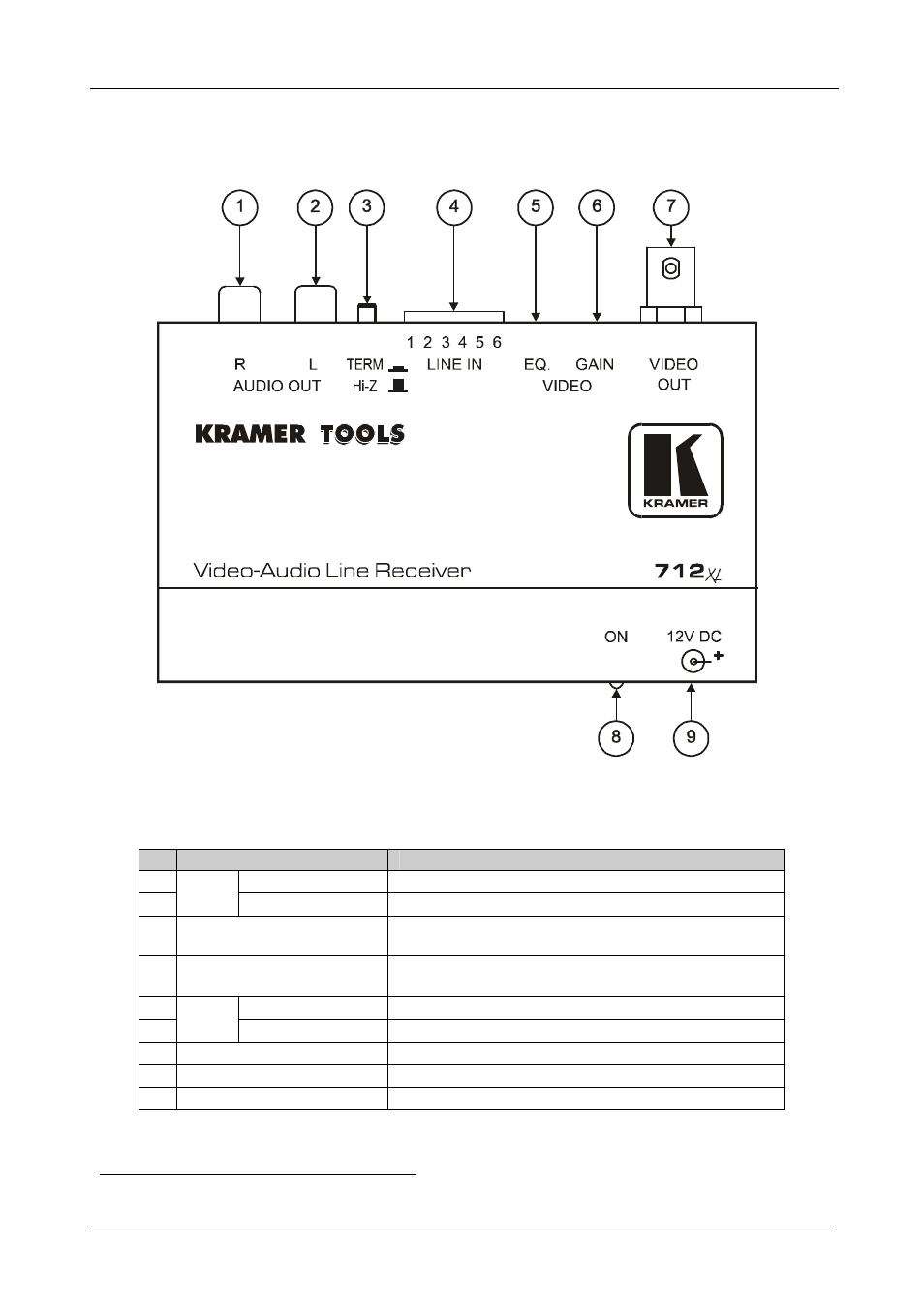

Figure 9: 712xl Video-Audio Line Receiver
Table 6: 712xl Video-Audio Line Receiver Features
#
Feature
Function
1
R
RCA Connector
Connect to the right unbalanced stereo audio acceptor
2
AUDIO
OUT
L
RCA Connector
Connect to the left unbalanced stereo audio acceptor
3
TERM
Push Button
When pressed, terminates the unit that is the last in the
line (not looped)
4
LINE IN
6-pole Detachable
Terminal Block Connector
Connect to the LINE OUT 6-pole detachable block
connector of the
711xl
(see section 6.3 for pin-out)
5
EQ.
Trimmer
Turn to adjust the output signal equalization
1
6
VIDEO
GAIN
Trimmer
Turn to adjust the output signal level
1
7
VIDEO OUT
BNC Connector Connect to the composite video acceptor
8
ON
LED
Lights when receiving power
9
12V DC
+12V DC connector for powering the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
