The 711xl and 712xl Video-Audio Line Transmitter and Receiver
15
6.1 Your 711xl Video-Audio Line Transmitter
Figure 8 and Table 5 define the 711xl:

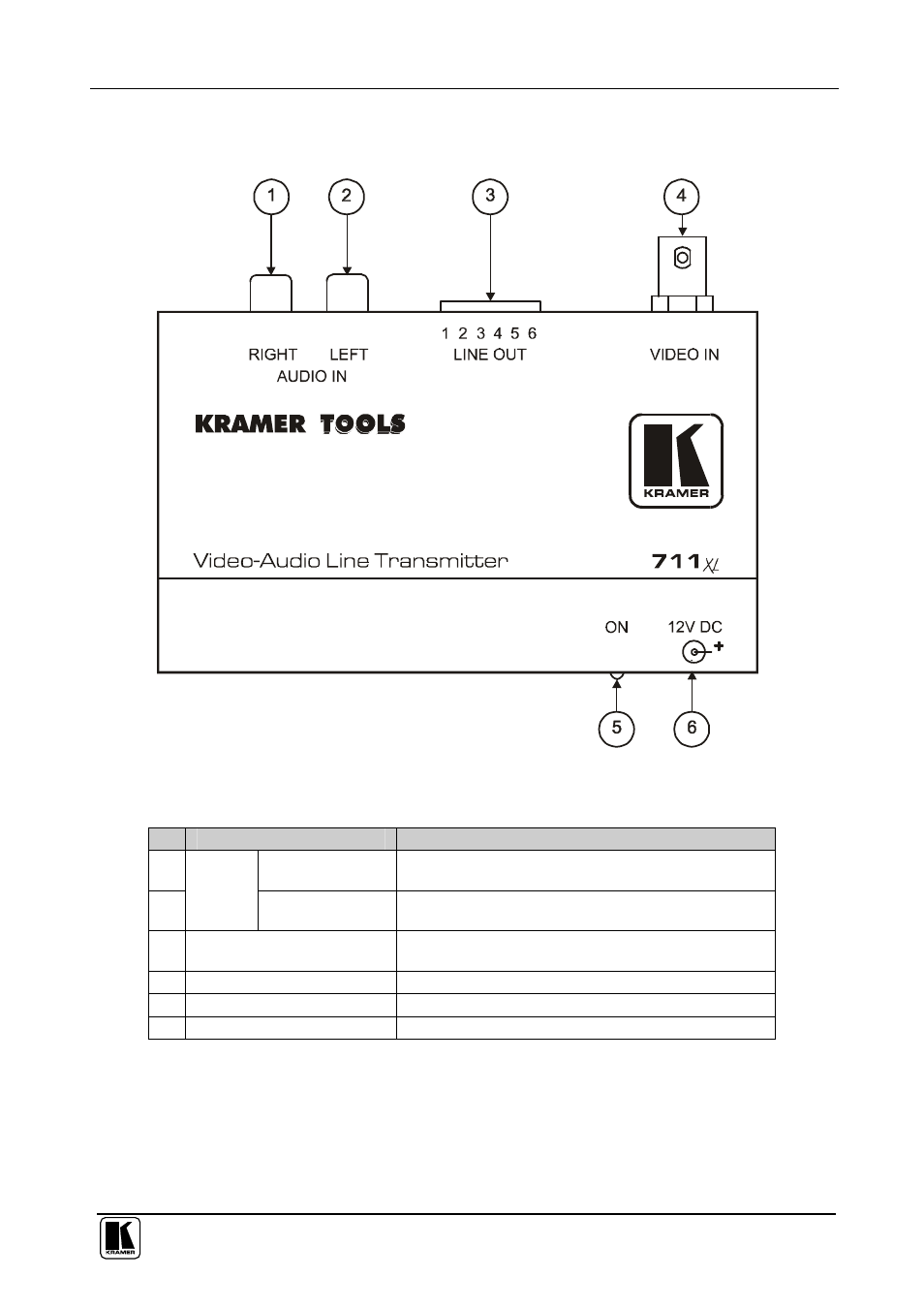

Figure 8: 711xl Video-Audio Line Transmitter
Table 5: 711xl Video-Audio Line Transmitter Features
# Feature Function
1 RIGHT RCA
Connector
Connect to the right unbalanced stereo audio source
2
AUDIO
IN
LEFT RCA
Connector
Connect to the left unbalanced stereo audio source
3 LINE OUT 6-pole Detachable
Terminal Block Connector
Connect to the LINE IN 6-pole detachable block
connector of the 712xl (see section 6.3 for pinout)
4 VIDEO IN BNC Connector Connect to composite video source
5 ON LED Lights when receiving power
6 12V DC +12V DC connector for powering the unit
