The 709 and 710 Y/C Line Transmitter and Receiver
10
5.1 Your 709 Y/C Line Transmitter

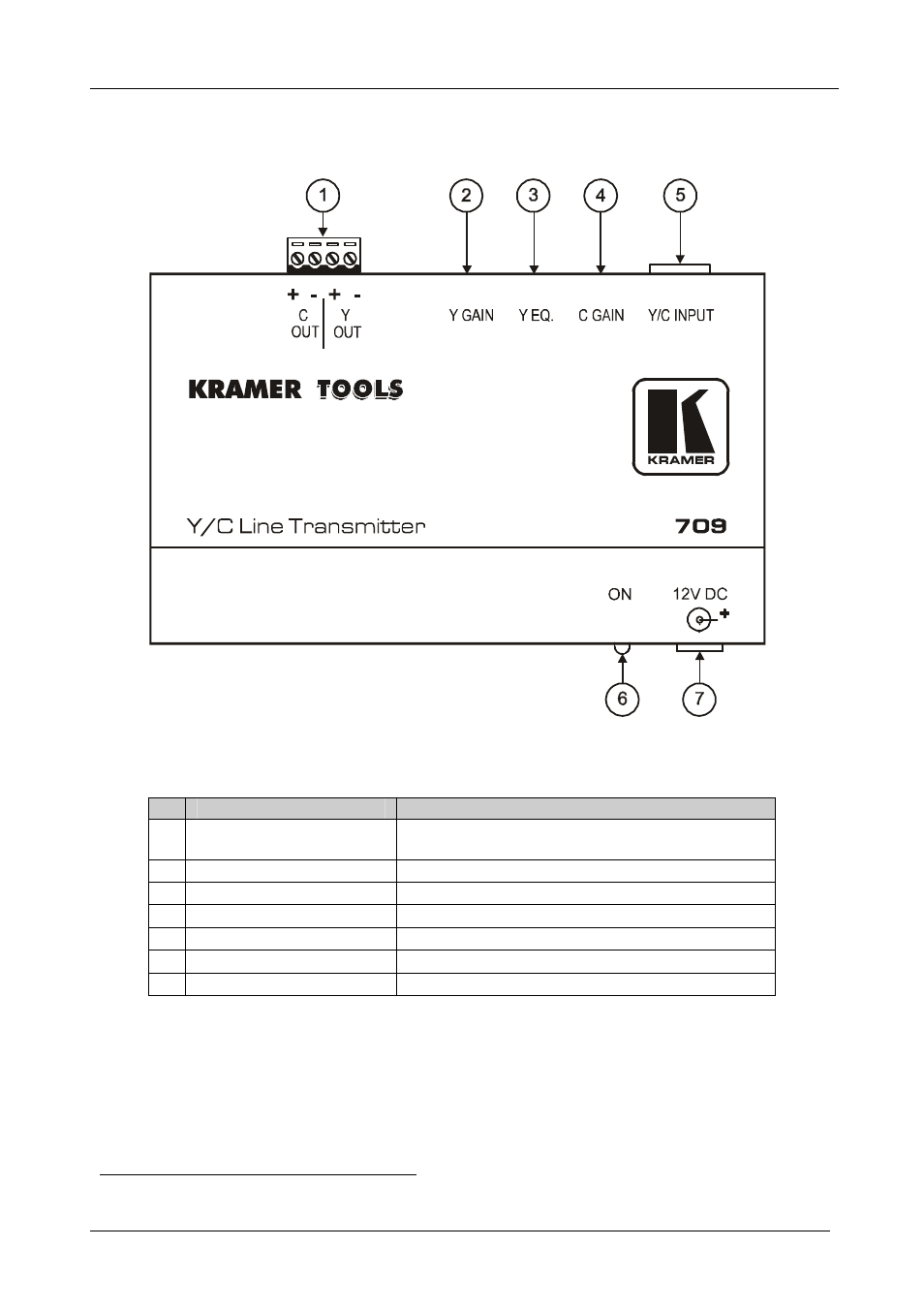

Figure 4 and Table 3 define the 709:
Figure 4: 709 Y/C Line Transmitter
Table 3: 709 Y/C Line Transmitter Features
# Feature Function
1 C OUT, Y OUT Terminal
Block Connector
Connect to the C IN and Y IN terminal block
connector of the 710
2 Y GAIN Trimmer Turn to adjust the Y gain 1
3 Y EQ. Trimmer Turn to adjust the Y cable equalization 1
4 C GAIN Trimmer Turn to adjust the Chroma gain 1
5 Y/C INPUT 4p Connector Connect to the s-Video source
6 ON LED Lights when receiving power
7 12V DC +12V DC connector for powering the unit
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level
