Defining and Connecting the Wall Plates
24
7.2.3
Defining the SV-306 (England and Europe)
The SV-306 is a single-gang wall plate and has a terminal block at the
rear.
defines the front and rear views of the SV-306.

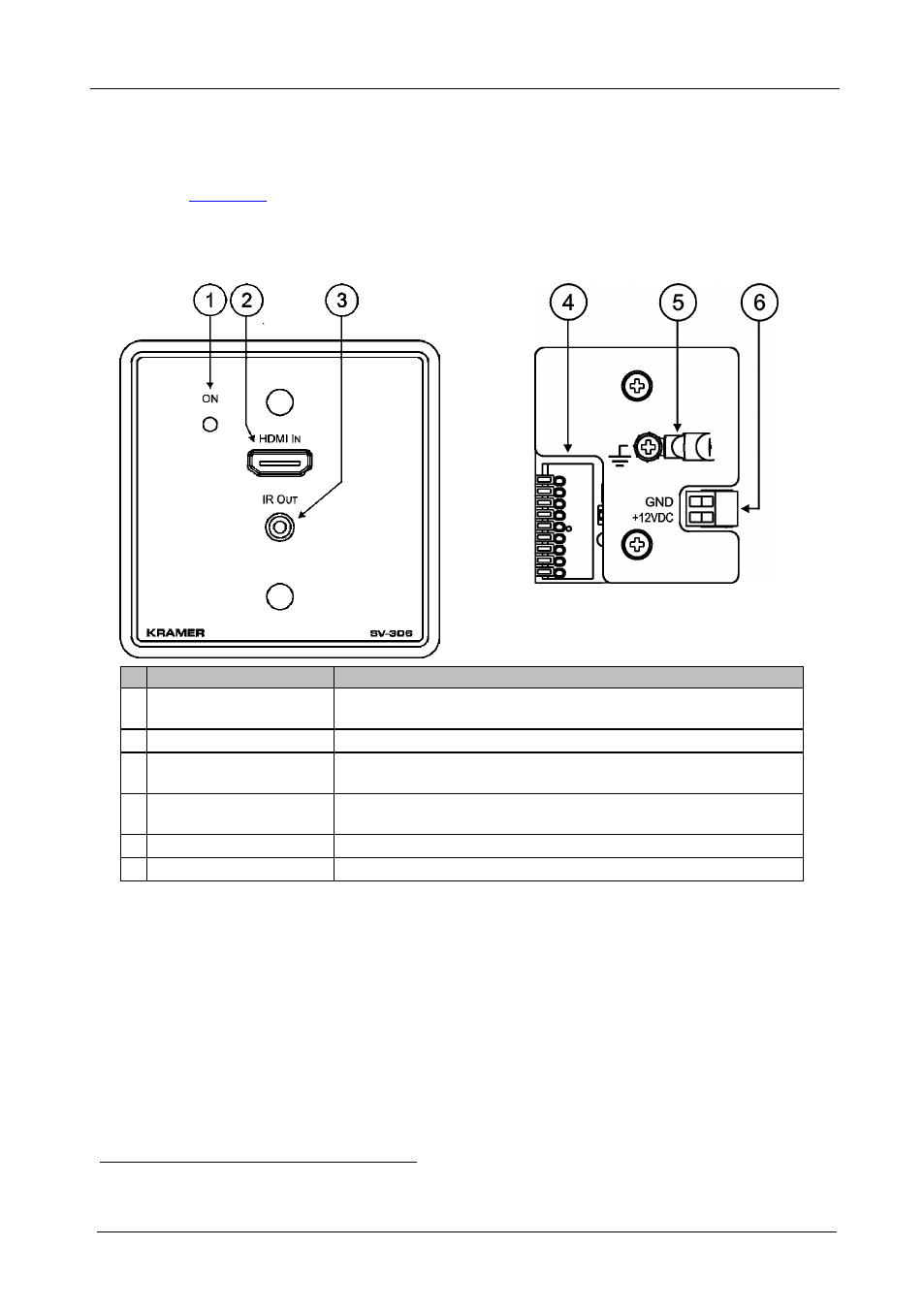

Table 13: Defining the SV-306 (England and Europe)
1
SV-306 Front View
SV-306 Rear View
#
Feature
Function
1
ON LED
Lights red when receiving power (when no signal is detected); lights
green when receiving a signal
2
HDMI IN Connector
Connect to the HDMI digital source
3
IR OUT 3.5mm Mini
Connector
Connect to a machine via an IR Emitter
4
Terminal Block
Connect to SV-552. Note that the SV-306 requires BC-DGKat524 or
BC-DGKat-623 cable for connection
5
GROUND Connection
Ring tongue terminal and grounding screw
6
GND +12V Terminal Block Connect to an optional 12V power supply
The SV-306 provides EDID PassThru (passes EDID signals from source to
display) and HDCP support.
1 When mounting in Belgium and Germany, use the standard WP Adapter
