Defining and Connecting the Wall Plates
22
7.2 Defining the Wall Plates (England and Europe
1
)
This section defines the England and European version of the following wall
plates:
• SV-301xl (
Section 7.2.1
• SV-302 (
)
Section
7.2.2
• SV-306 (
)
Section 7.2.3
7.2.1 Defining the SV-301xl (England and Europe)
)
The SV-301xl is a single-gang wall plate. The SV-301xl has a terminal block
at the rear.
Table 11 defines the front and rear views of the SV-301xl.

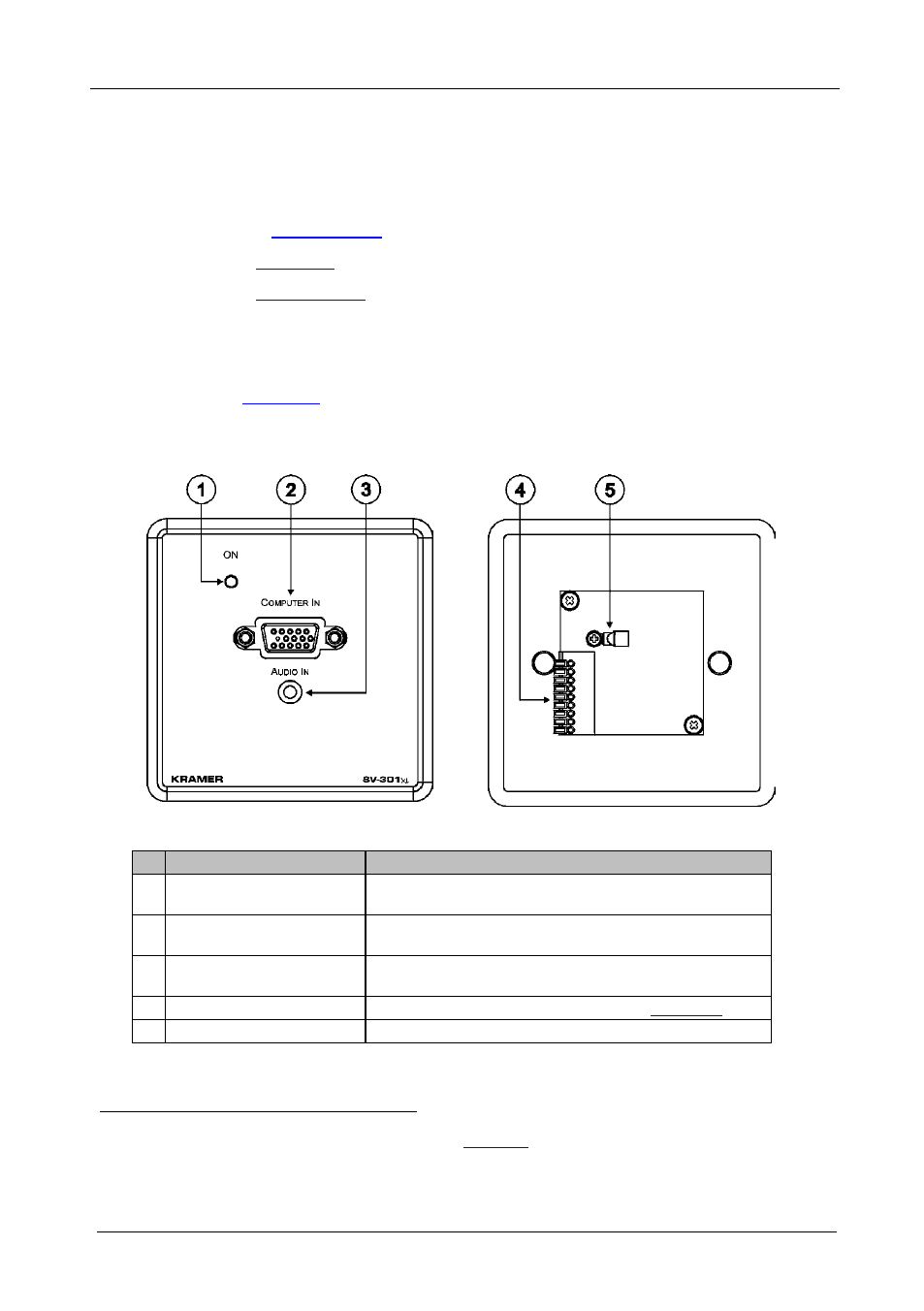

Table 11: Defining the SV-301xl (England and Europe)
2
SV-301xl Front View SV-301xl Rear View
3
# Feature Function
1 ON LED Lights red when receiving power (when no signal is detected);
lights green when receiving a signal
2 COMPUTER IN 15-pin HD
Connector
Connect to the computer graphics source
3 AUDIO IN 3.5mm Mini
Connector
Connect to the unbalanced stereo audio source
4 Terminal Block Connect to SV-552 using STP cabling (see Section 8.1
5
)
GROUND Connection Ring tongue terminal and grounding screw
1 The European versions are equipped with easy terminals, see Section 8.2
2 When mounting in Belgium and Germany, use the standard WP Adapter
3 Some models may have a DC IN connector for connecting to a 12V DC power supply
