Controlling the VS-42HC
18

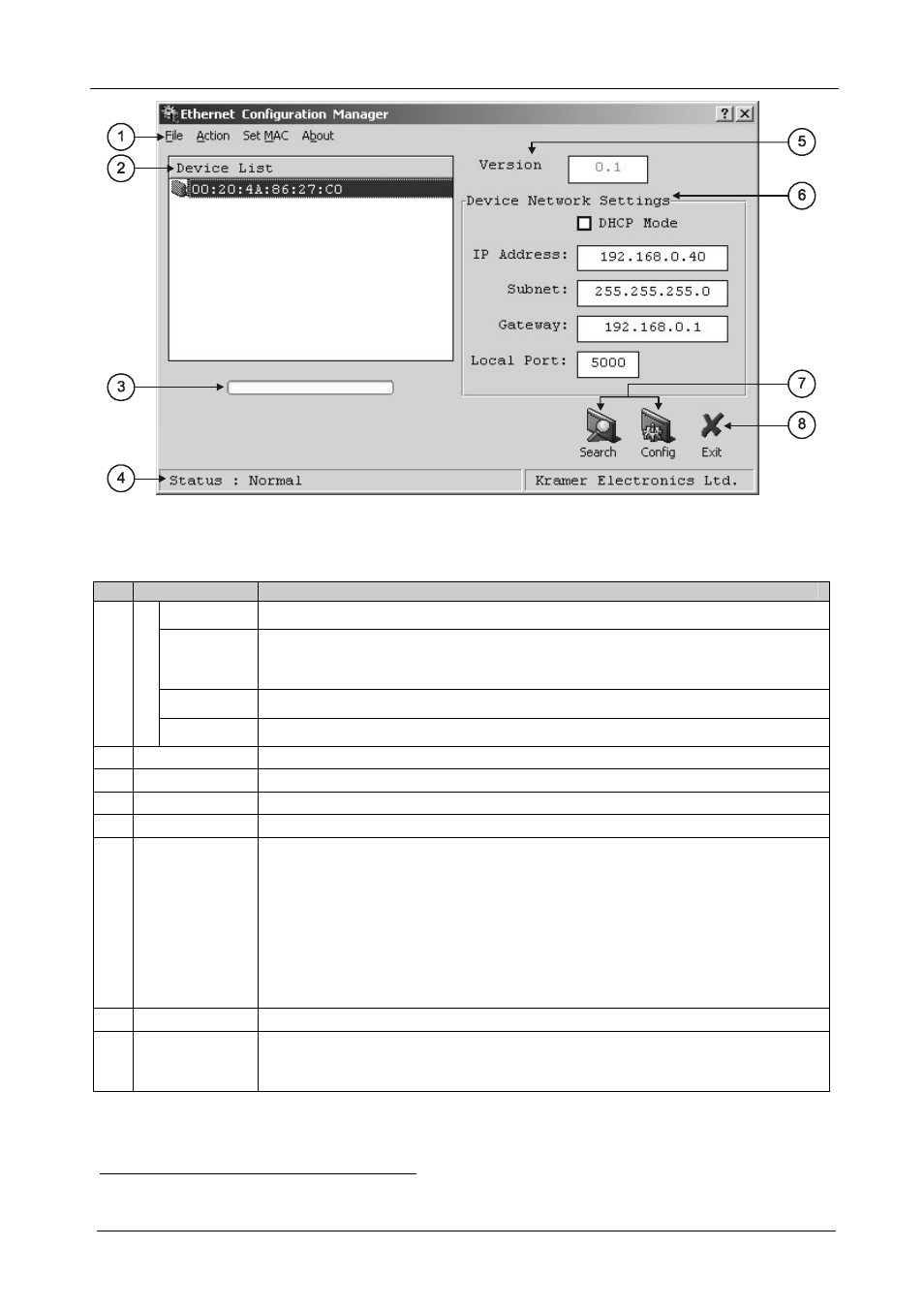

Figure 11: The Ethernet Configuration Manager Window
Table 9: Ethernet Configuration Manager Window Functionality
# Feature Function
File The Exit command closes the Configuration Manager application
Action The Search Board command seeks the VS-42HC device that connects to the PC via
the ETHERNET port, and displays it and its corresponding settings;
The Config command adjusts the VS-42HC according to the displayed data
Set MAC 1 For factory use only (click the Password command to enter the password)
1
M
en
u
ba
r
About Displays software information, including the software version
2 Device List Displays the MAC Address
3 Progress Bar Shows the progress
4 Status Bar Shows the status
5 Version Displays the firmware version
6 Device Network
Settings Area
DHCP 1 Mode Check Box: When selected, configures the Ethernet port to obtain an IP
address automatically from the DHCP server. When cleared, manual configuration of
the Ethernet port is required to obtain an IP address (Static IP)
IP Address : A 32-binary digit number obtained from your Network Administrator that
identifies the Ethernet port that is currently being configured
Subnet : A 32-binary digit number obtained from your Network Administrator, which
combined with the IP Address, identifies which network your device is on
Gateway : A network position serving as an entry to another network or to the Internet
(only relevant in the Active Routing mode)
7 Exit Button Closes the Configuration Manager application
8 Action Buttons Search : seeks the devices that connect to the PC via the ETHERNET port, and
displays them and their corresponding settings
Config : adjusts the according to the displayed data
1 See the definition in Table 1
