28 VP-81SIDN - Operating the VP-81SIDN Remotely
# Feature Function
9 Output Volume Slider Click, hold and move the slider up (higher) or down (lower) to
adjust the output volume (see
Section 9.2 )
10 Mute on/off Button Click to mute/unmute the output volume (see Section 9.2 )
Note: When a change is made on the device (for example, a different output is
selected), the change is reflected almost immediately in the main window of the
Step-in Software, and visa versa.

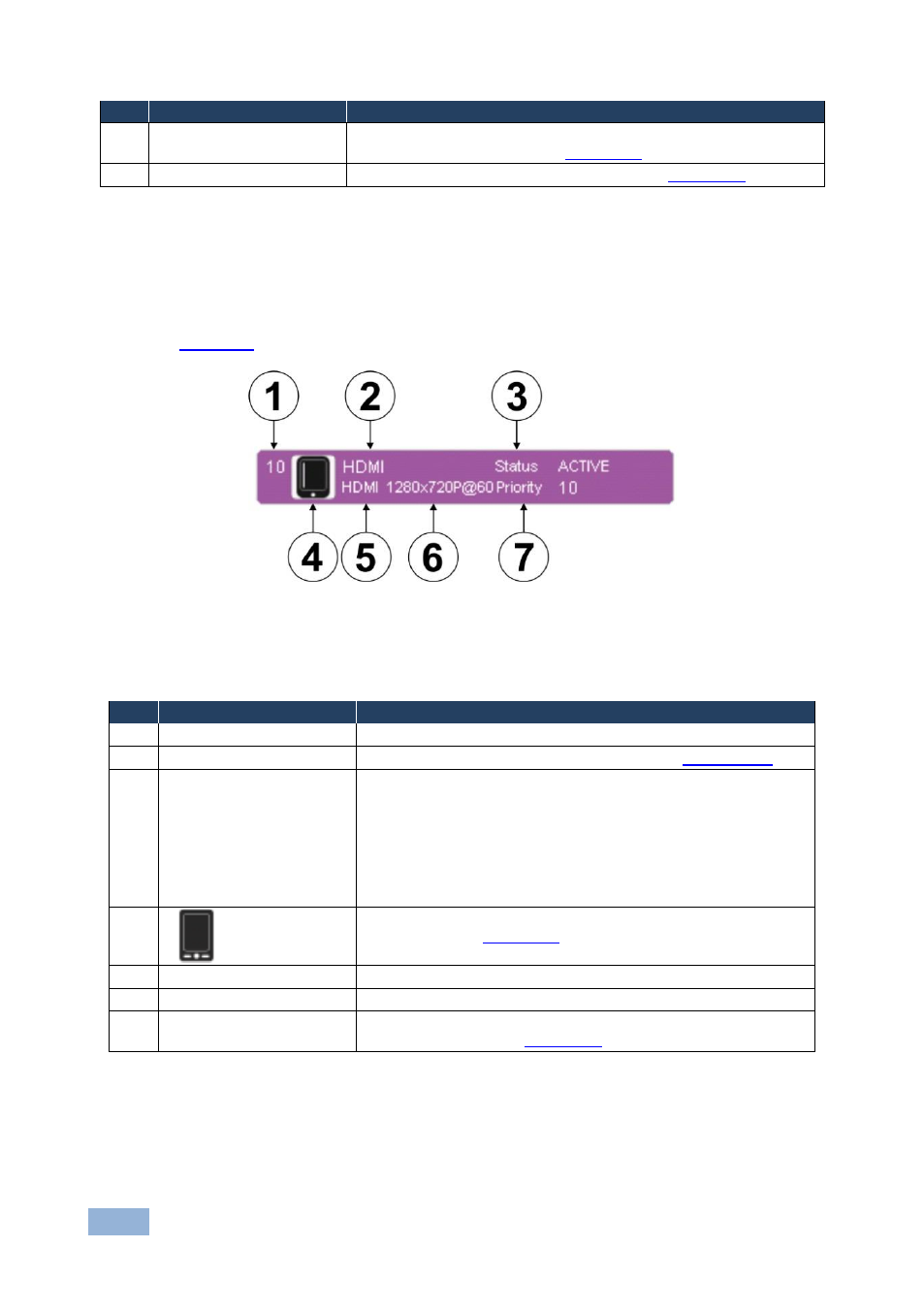

Figure 13 shows a typical input button.
Figure 13: Typical Input Button
The following table describes the Button characteristics.
# Feature Description
1 10 Input (1 –10) or output (1–2) channel number
2 HDMI Label User-selectable button label, Admin only (see Section 9.1.1 )
3 Status ACTIVE Indicates the status of the connection and signal on the
channel:
TIMEOUT
—no cable
MUTE — cable present, no signal detected
WAIT — cable and signal present but channel is not selected
ACTIVE —cable and signal present and channel is selected
(only one channel at a time)
4 User-selectable icon selected to be displayed on the button,
Admin only (see
Section 9.4 )
5 HDMI Video input type: VGA, HDMI, DP, DVI
6 1280x720p@60 Video resolution, i=interlace/p=progressive, refresh rate
7 Priority 10 Slider Slider for adjusting the priority (1, lowest –10, highest) of the
input, Admin only (see Section 9.3 )
