VP-1608 - Flash Memory Upgrade 29
9. Click Run. After each stage of the operation is completed, the check-box for
that stage becomes colored green (see also the blue progress indicator on
the status bar).
When the operation is completed, all 4 check-boxes are colored green and
the status bar message: Memory Verify Pass appears:
If an error message: “Not Finished” shows, click Run again.

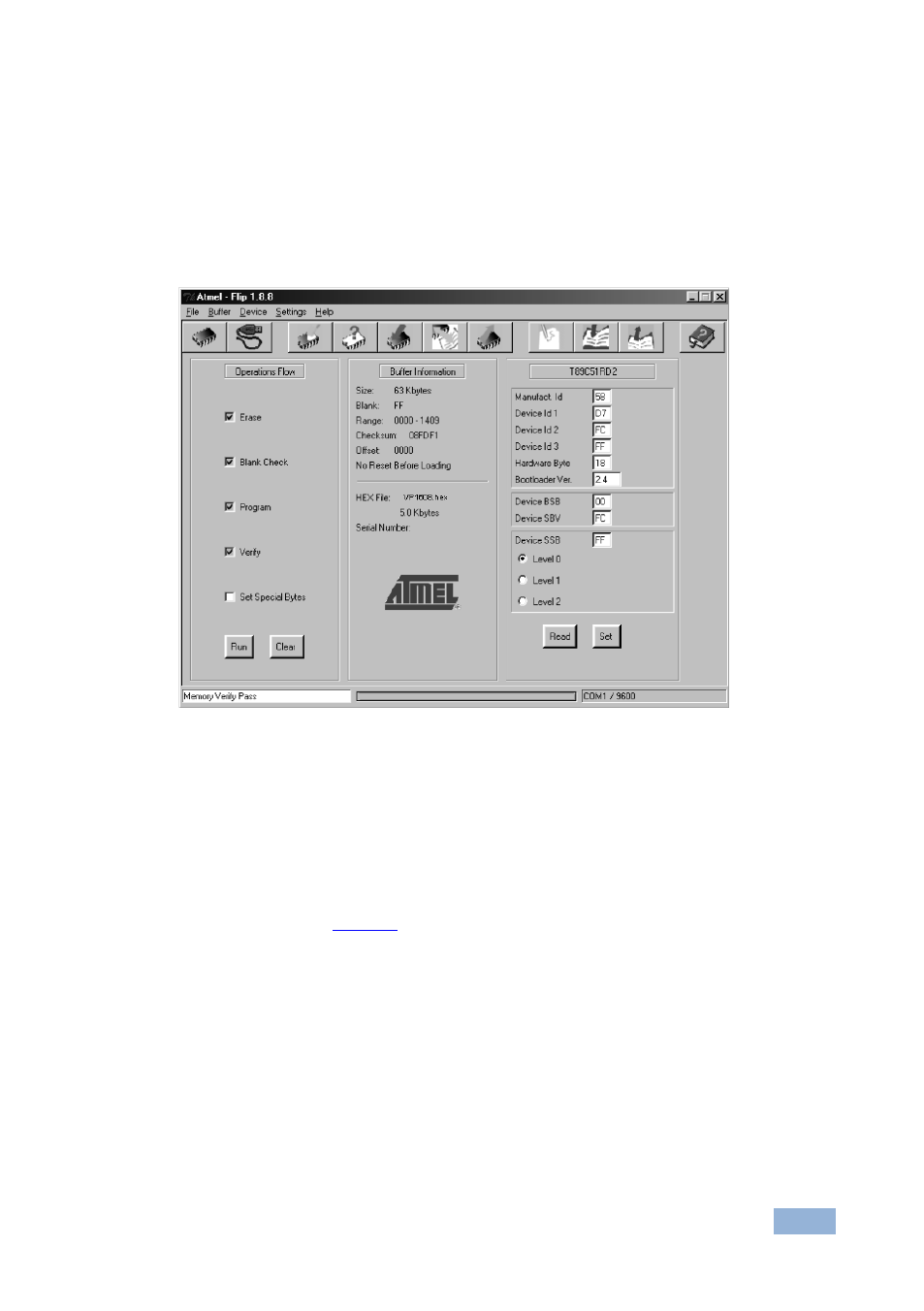

Figure 19: Atmel – Flip Window (Operation Completed)
10. Close the “Atmel – Flip” window.
11. Disconnect the power on the VP-1608.
12. Set both the underside switches: Flash Program switch 1 and Flash Program
switch 2 (see Figure 3 ) to Normal.
13. Connect the power on the VP-1608.
Upon initialization, the new VP-1608 software version shows in the INPUT
STATUS 7-segment Display.
