Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5 Transmitter
11

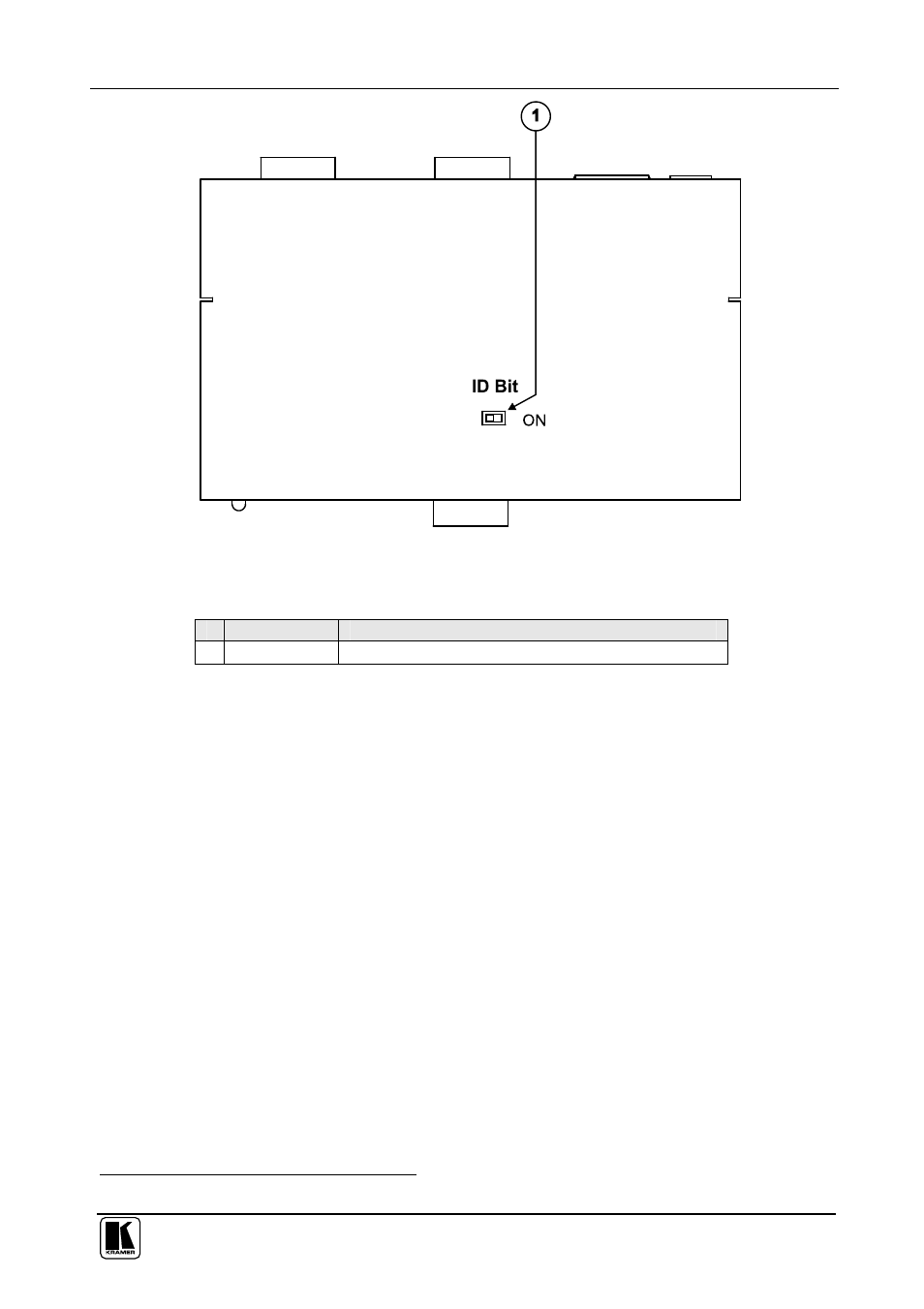

Figure 5: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside)
Table 5: VP-300T 1:2 XGA DA/ CAT 5 Transmitter (Underside) Features
# Feature Function
1 ID Bit Switch Slide to the right to set to ON 1 ; to the left to set to OFF
7 Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5
Transmitter
This section describes the front and rear panels of the VP-5T/VP-5THD
1:4 VGA/UXGA Distributor / CAT 5 Transmitter (see section 7.1), and the
underside (see section 7.2).
7.1 Your VP-5T/VP-5THD 1:4 VGA/UXGA Distributor / CAT 5
Transmitter
The VP-5T/VP-5THD is a high-performance distributor for computer
graphics signals, accepting one input, providing necessary buffering and
isolation, and distributing the signal to its identical 4 outputs, as well as
transmitting it over UTP CAT 5 cable to its appropriate receiver.
In particular, the
VP-5T:
Features front panel EQ. control
Has switches on the underside for ID Bit control
1 The default. Enabling the notebook or laptop to output a VGA signal to an external VGA monitor
