14

VM-28H, VM-216H - Using the VM-28H/VM-216H

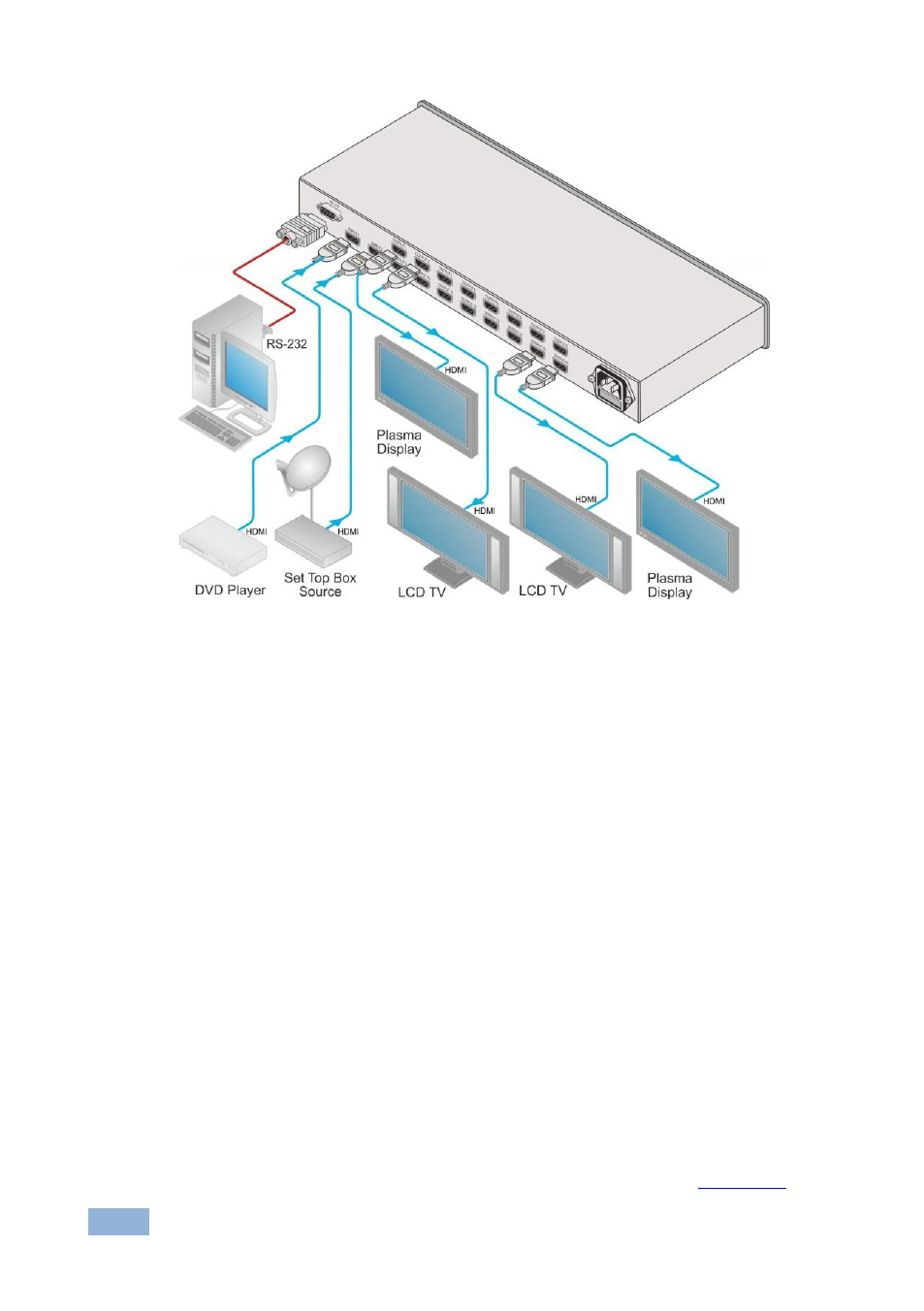

Figure 3: Connecting a VM-216H 2 Input 1:16 HDMI Distributor

5.2

Connecting the VM-28H/VM-216H via RS-232

You can connect to the VM-28H, VM-216H via an RS-232 connection using, for

example, a PC. Note that a null-modem adapter/connection is not required.

To connect to the VM-28H, VM-216H via RS-232:

Connect the RS-232 9-pin D-sub rear panel port on the VM-28H, VM-216H

unit via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to

pin 5 need to be connected) to the RS-232 9-pin D-sub port on your PC

5.3

Operating the VM-28H/VM-216H

To operate the VM-28H/VM-216H:

1. Turn ON the POWER.

2. Select the desired input.

3. Press the EDID button to acquire or change the EDID data (see

Section

5.4

).
