Physical installation, Physical, Installation – Muxlab LongReach 16 Active CCTV Hub User Manual
Page 8

© MuxLab Inc.
LongReach 16 Active CCTV Receiver Hub Installation Guide
Page 8
3.4.
Physical Installation
The LongReach 16 has three mounting options; desktop, 19” rackmount or
wallmount. The product comes with two (2) mounting brackets and four (4)
rubber stand-offs to allow it to be configured for either option. The product is
factory set for rackmounting.
1. If the product is to be rackmounted in a relay rack, select the final
destination for the product and install the unit using standard rackmount
screws.

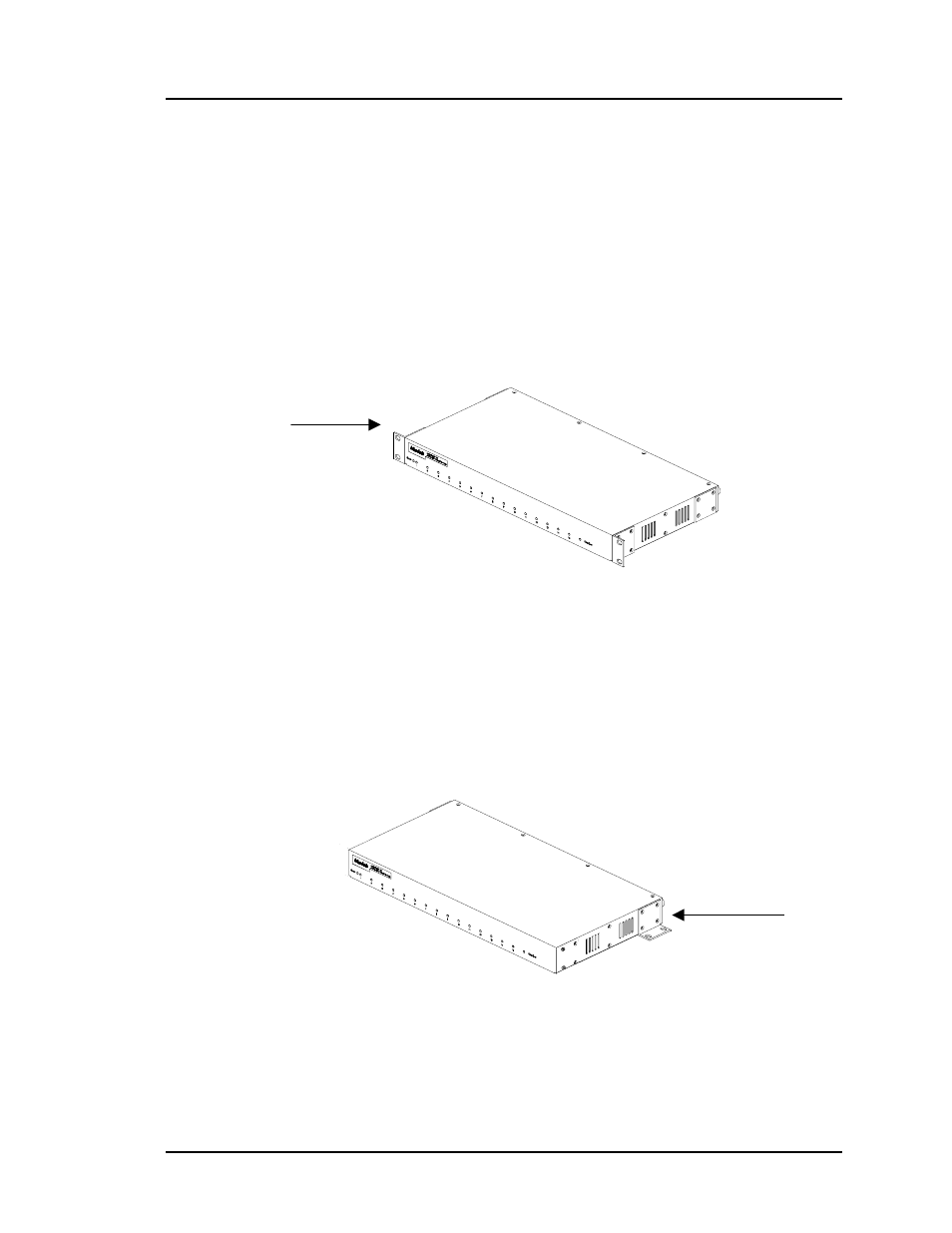

Figure 5: Rack-mount brackets
2. If the product is to be installed on a desk, then remove the rackmount
brackets with a standard Philips screwdriver and store the brackets for
future use. Peel the backing off the rubber standoffs and affix them to the
corners underneath the base of the unit.
3. If the product is to be wallmounted, remove the rackmount brackets and
install them in the wallmount position on the product as shown below.
Figure 6: Wall-mount brackets
4. Install the product on the wall using the proper mounting hardware.
