R356 Controller & Driver
Page 11
Version 1.06
RMS Technologies
2/17/2010
USB-485 converter card

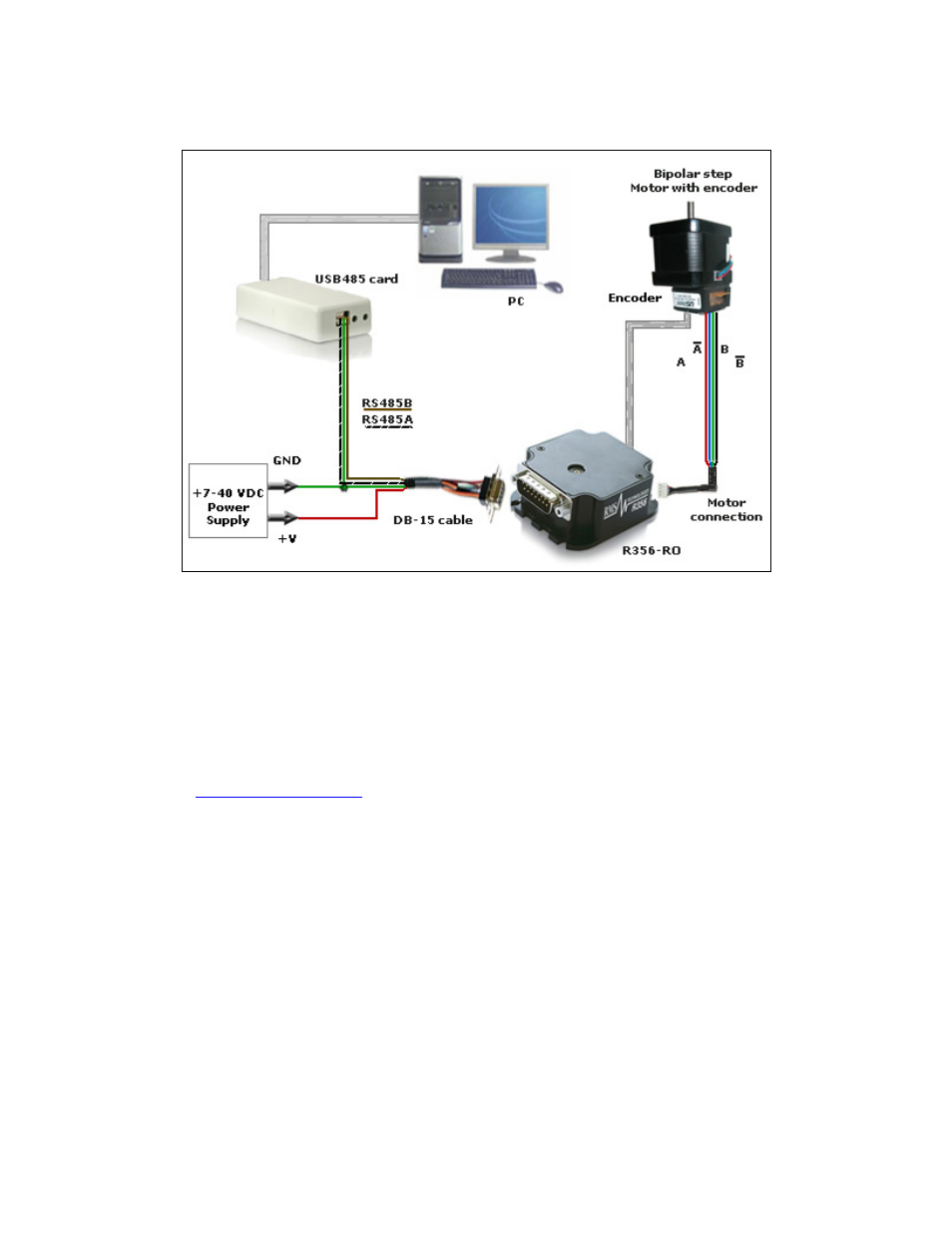

Figure 6: Connection using USB
1. The USB converter card connects to the R356 using the DB-15 cable that is
provided to you. The white 3-Pin connector is placed onto the converter card.
2. Connect the motor and optional encoder to the R356.
3. Your power supply will be connected to the R356 directly. The USB card is
powered via the PC. R356’s pin 9, Red wire is +12-40VDC, pin 1, Green
wire is Ground. The USB485 converter card’s green wire needs to
also connect to the Power supply ground.
4. Connect the USB card to your PC using the USB cable provided to you. You
will need to download driver files (2 of them). You can find them at:
www.rmsmotion.com
5. Turn your power supply on and follow instructions for using HyperTerminal.
