6. CONNECTION SPECIFICATIONS
DO NOT PLUG IN POWER UNTIL EVERYTHING IS CONNECTED.
Quick Start
RS232-485 converter card

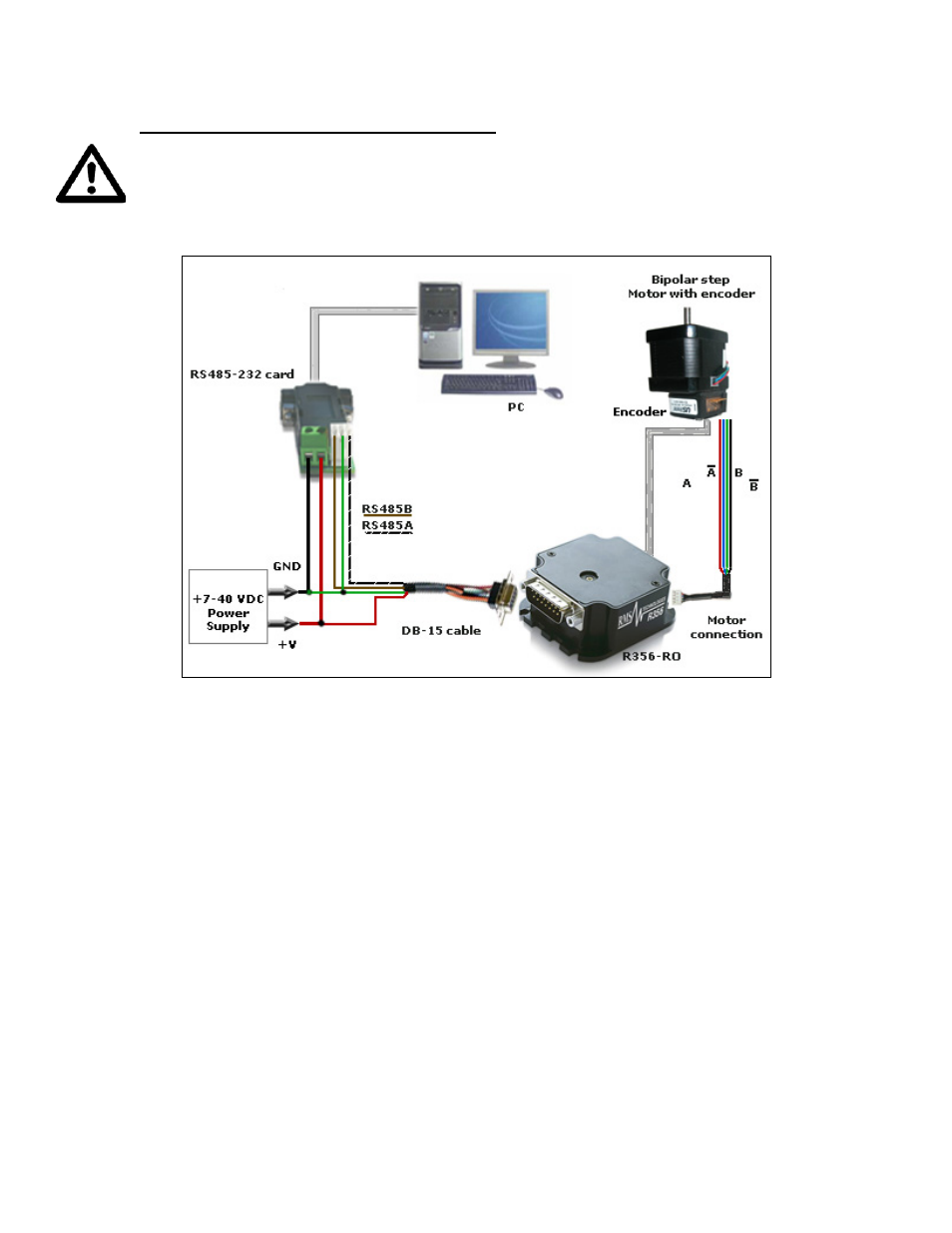

Figure 5: Connection using RS232
1. The RS232 converter card connects to the R356 using the DB-15 cable that is
provided to you. The 3-Pin connector is placed onto the converter card.
R356’s pin 9, Red wire is +12-40VDC, pin 1, Green wire is Ground.
The converter card’s green wire needs to also connect to the Power
supply ground.
2. Your power supply will be connected to the RS232 card where the green
header is located. + is for +12-40VDC, - is for the Power Supply
Ground.
3. Connect the motor and optional encoder to the R356.
4. Connect the RS232 card to your PC with a male to female DB-9 cable.
5. Turn your power supply on and follow instructions for using HyperTerminal.
