e. Wall hanging hole
20. Special notes for multi bolt pattern insert:
a. Limited slip circumferential holes are provided in main plate.
b. Additional insert plates are available.
21. Proceed with your preferred corner weight, alignment process including:
a. Erect strings parallel to the vehicle centerline either at hub centerline or at
the ground plane. The preferred method is to attach the strings to the
chassis by fabricating string holders at the front and rear of the vehicle.
These string holders should mount in a location where normal racing
contact will not compromise consistent string position.
b. Set caster angles by wheel turn or direct measurement.
c. Set camber angles.
d. Set corner weights or wedge %’s. Note that there is no need to roll the car
fore and aft for suspension settling.
e. Set wheel toe by measurement to parallel strings

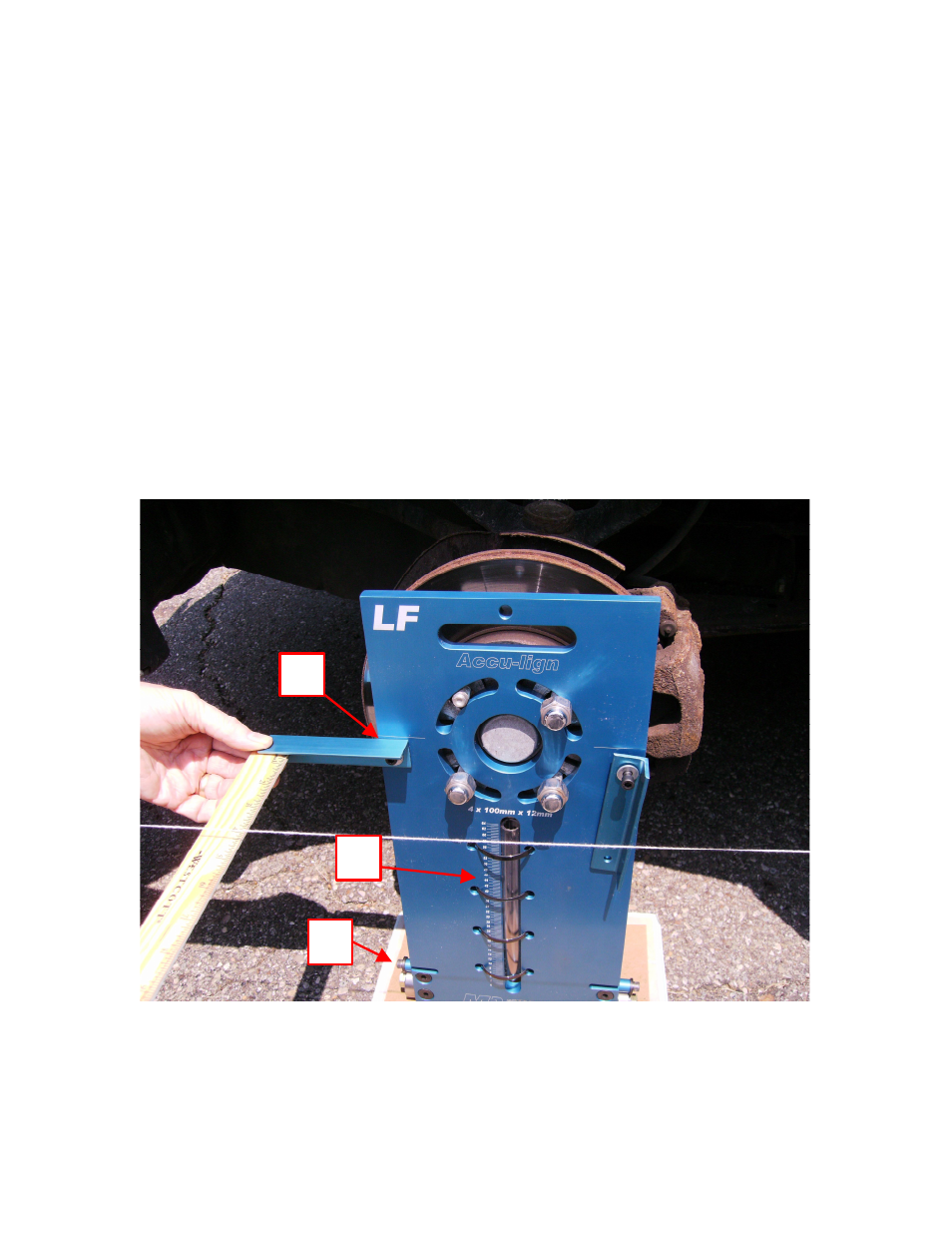

Figure 2
B
C
A
