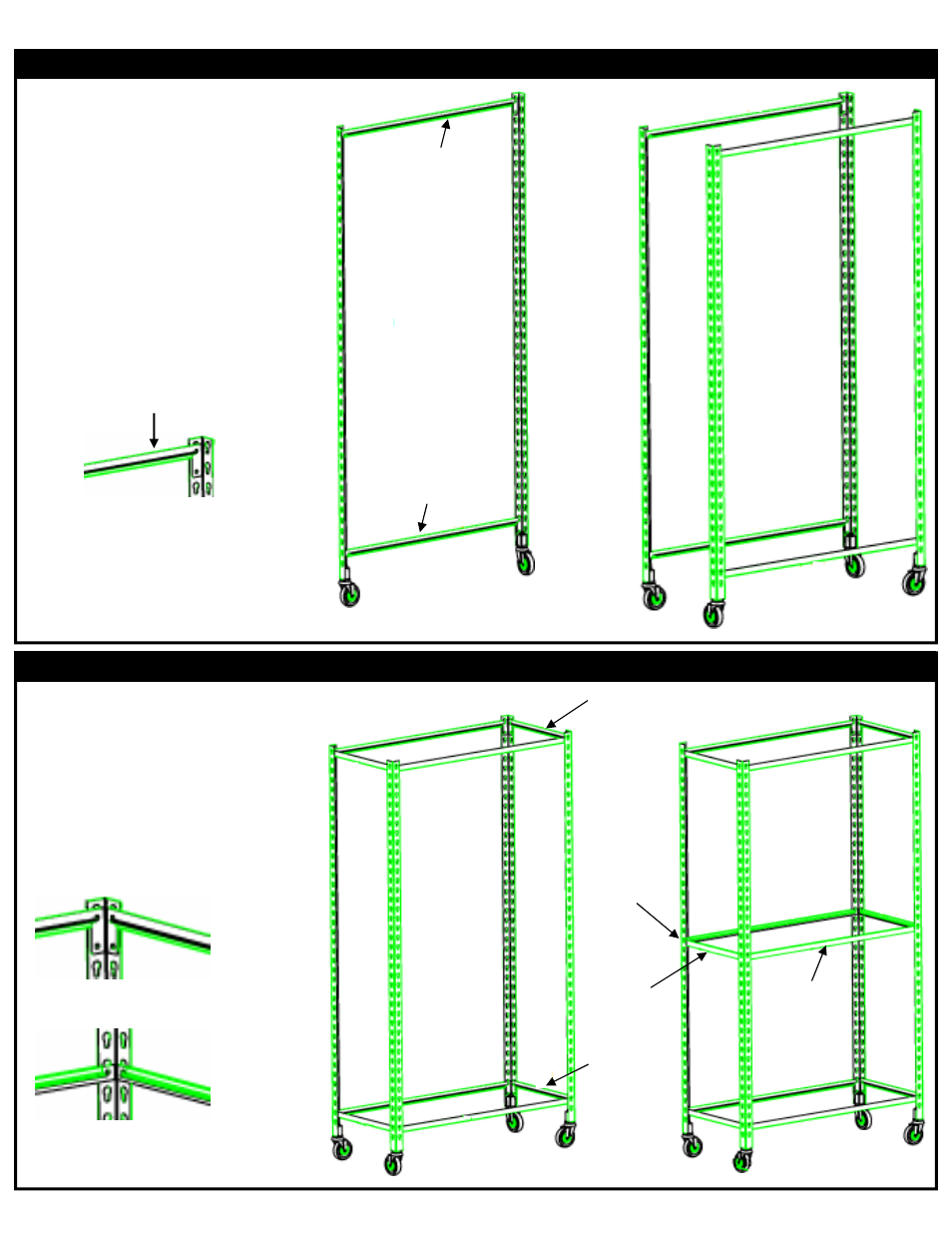

Step 2 Step 2 Step 2
Assemble the front and back frames.
Using 2 of the 33” Double-Rivet
Beams assemble the front frame as
shown. Insert the rivets on the
Beams into the slots on the Posts
and gently tap down until they are
fully seated.
Repeat the process to build a
matching back frame.
Assemble the
front frame Repeat to assemble
the rear frame
Step 3 Step 3 Step 3
Insert rivets
and tap down
Use the 33” long,
2 Rivet Beams
Connect the front frame to the rear
frame, using the 2 Rivet, 15”
braces.
Add the center supports, using the
1 Rivet, 33” long Beams and 1
Rivet, 15” long Braces. Install in
the 20th holes from top of Post.
Use the 15” long, 2 Rivet Braces for the
top and bottom connections
Use the 33” long, 1 Rivet Beams and the
15” long, 1 Rivet Braces for the center
connections
15” long,
1 Rivet Brace 33” long,
1 Rivet Beam
15” long,
2 Rivet Brace
15” long,
2 Rivet Brace
33” long,
2 Rivet Beam
33” long,
2 Rivet Beam
20th hole
from post
top
