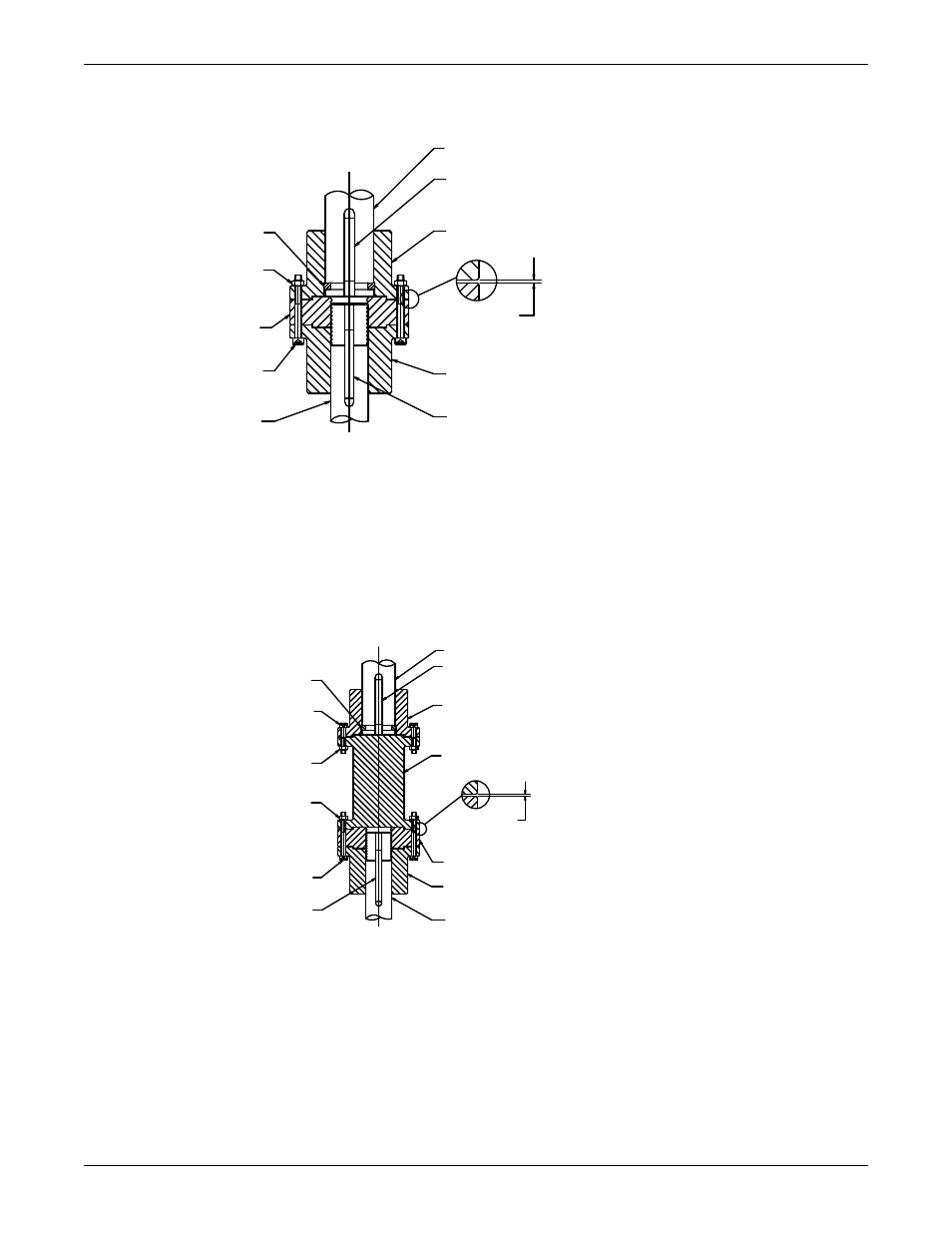

At location A in these two figures, measure the impeller adjustment before you tighten the coupling
capscrews:
1
2
3
A
4
5 6
7
8
9
10
1. Driveshaft
2. Driver key, supplied by the motor vendor
3. Driver hub
4. Pump hub
5. Pump key
6. Headshaft
7. Capscrew
8. Adjusting plate
9. Hex nut
10. Split ring
Figure 11: Adjustable coupling (Type A)
FIGURE 11A-4 (735) HEX NUT
1
2
3
4
A
5
6
7
8
9
10
11
12
13
1. Driveshaft
2. Driver key, supplied by motor vendor
3. Driver hub
4. Spacer
5. Adjusting plate
6. Pump hub
7. Headshaft
8. Pump key
9. Capscrew
10. Hex nut
11. Hex nut
Installation (Continued)
