An ASSA ABLOY Group company 48

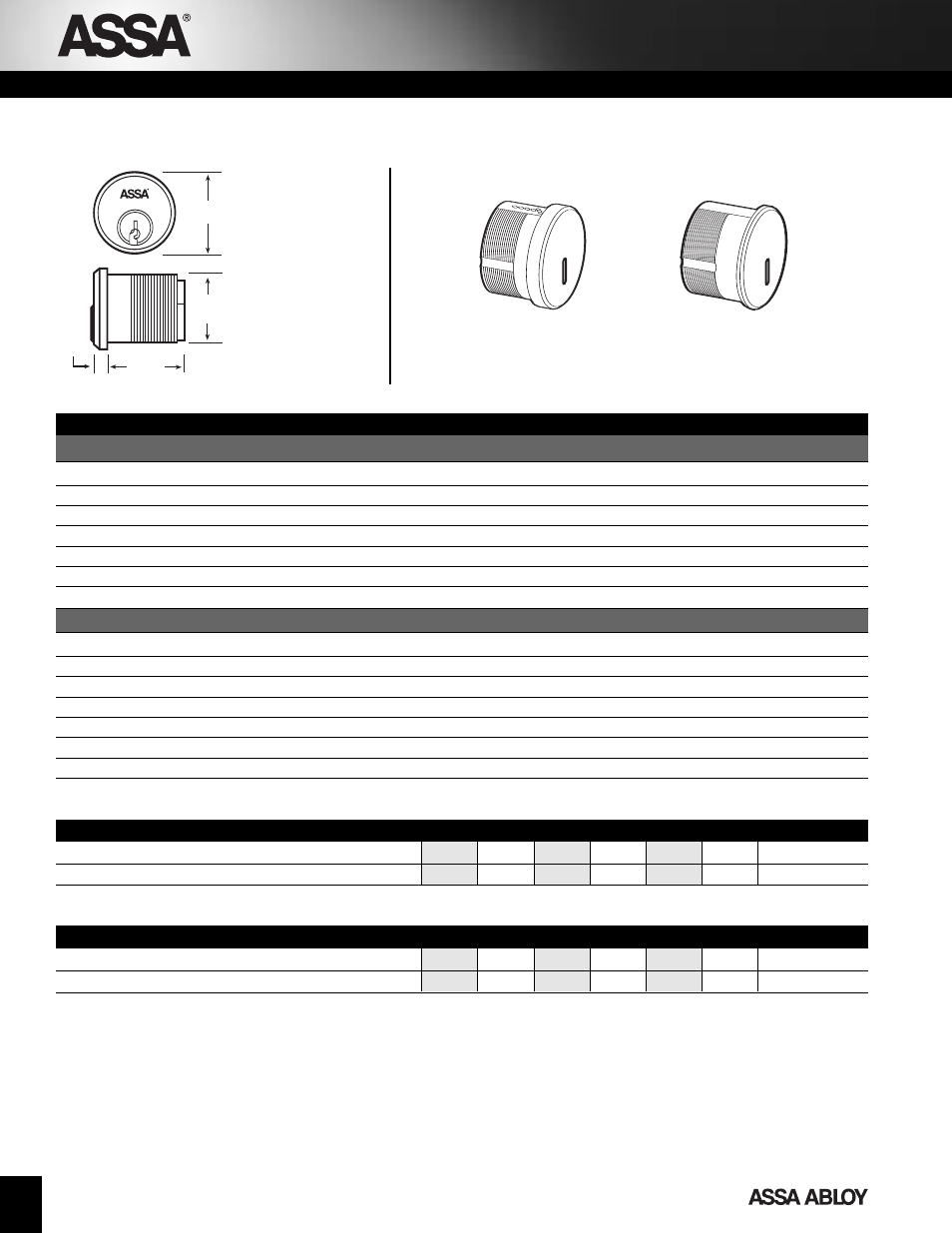

ASSA Mogul Cylinders
TWIN V-10, TWIN EXCLUSIVE, TWIN PRO, TWIN MAXIMUM, CLIQ
BL
HT
BD
HD
Mortise Cylinder Key:
HD – Head Diameter
HT – Head Thickness
BL – Body Length
(Includes Cam)
BD – Body Diameter
High Security Mogul Component Parts
Mogul Cylinder Parts
Model No. Description PRICE
Twin V-10
354051 1-1/8" Mogul Cylinder Shell 54.50
357672 1-1/2" Mogul Cylinder Shell 56.00
250861 1-1/8" Mogul Cylinder Plug 33.50
250894 1-1/2" Mogul Cylinder Plug 33.50
354993 Cam Adaptor for 1-1/2" Cylinder 9.50
809339 Mogul Cylinder Plug Cover Plate 8.25
907035 Mogul Chamber Screw Wrench .75
Twin Exclusive
354051 1-1/8" Mogul Cylinder Shell 54.50
357672 1-1/2" Mogul Cylinder Shell 56.00
354050 1-1/8" Mogul Cylinder Plug 33.50
250893 1-1/2" Mogul Cylinder Plug 33.50
354993 Cam Adaptor for 1-1/2" Cylinder 9.50
809339 Mogul Cylinder Plug Cover Plate 8.25
907035 Mogul Chamber Screw Wrench .75
1-1/2" Dummy Cylinder 1-1/8" Dummy Cylinder
ASSA Mogul Dummy Cylinders
Model Description HD HT BL BD R-A R-B Price
8551DUM 1-1/8" Mogul Dummy Cylinder 74.00
8551SSDUM 1-1/2" Mogul Dummy Cylinder 74.00
2.245 0.340 1.260 2.00 N/A N/A
2.245 0.120 1.590 2.00 N/A N/A
ASSA Mogul Interchangeable Core Housings
Model Description HD HT BL BD R-A R-B Price
80601 1-1/8" Mogul IC Housing 129.50
1-1/2" Mogul IC Housing 129.50
To order Interchangeable Cores separately – see page 62 for details.
2.245 0.340 1.260 2.00 N/A N/A
2.245 0.120 1.590 2.00 N/A N/A
