Goulds Pumps AF (Axial Flow) (6"-36) MXR Bearings" - Manual (Page 62)

60 AF (6-36) IOM
around the bearing housing (134) and elbow
(100), see Fig. 71.
22. Install V-belts and re-apply tension by adjusting
the slide base away from the pump. Adjust and
check the tension per the drive manufacturers
instructions, see Fig. 72.
23. Fasten the guard base (501) to the sub-base using
screws (502). Install the guard cover (500) using
screws (502), see Fig. 73.
24. Check impeller alignment and re-align if necessary
according to instructions on pg. 28 of section 3.
Direct Connect Configuration
25. Using a crane, lift the pump into place on the sub-
base. Be careful not to damage the pump by
striking any beams or walls that may be near the
pump. If any shims were found under the bearing
housing feet during disassembly replace them at

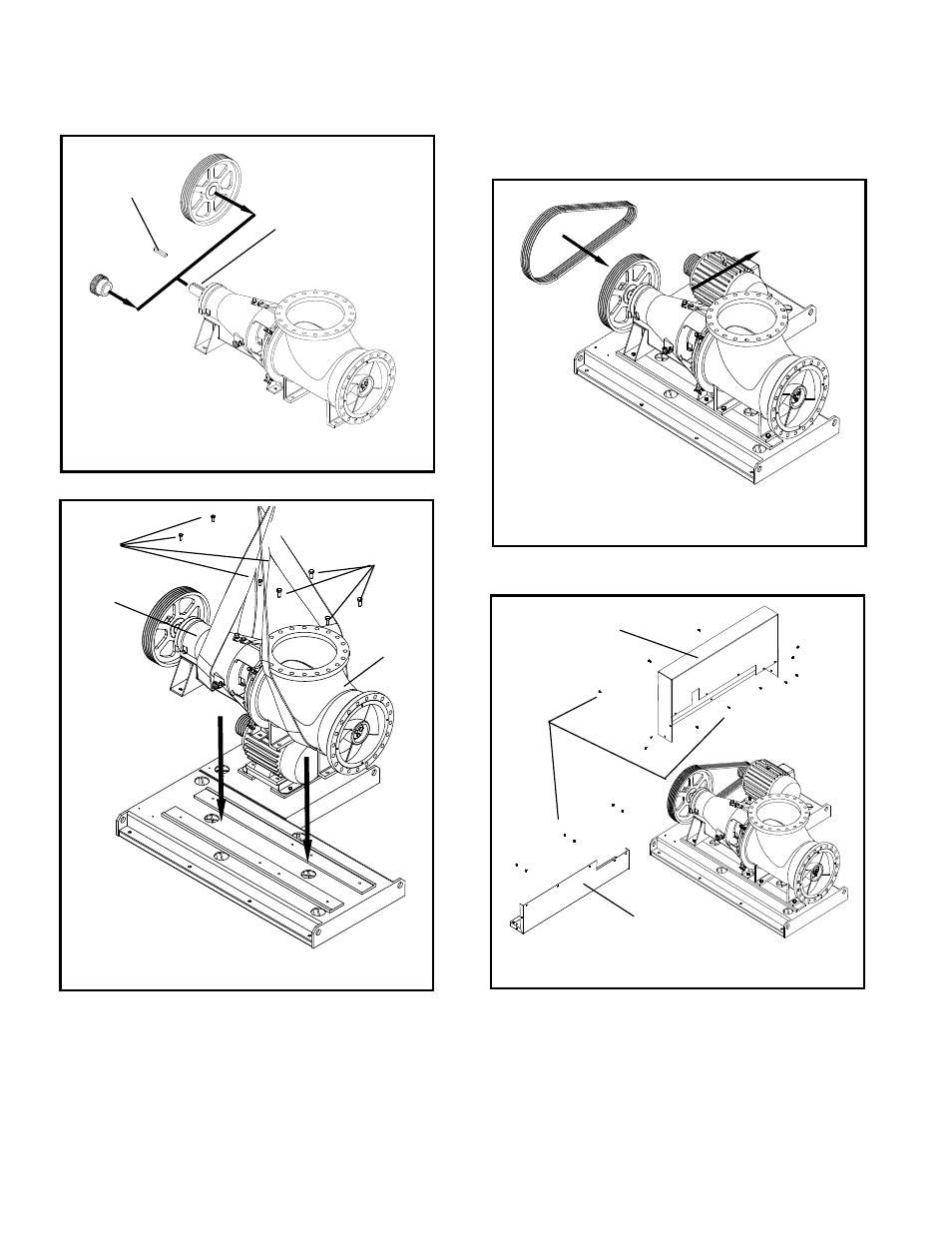

Fig. 70
400
122
Fig. 71
500A
500A
100
134
Fig. 72
SHIFT
SLIDE
BASE
INSTALL
BELTS
Fig. 73
500
501
502
