AF (6-36) IOM 47

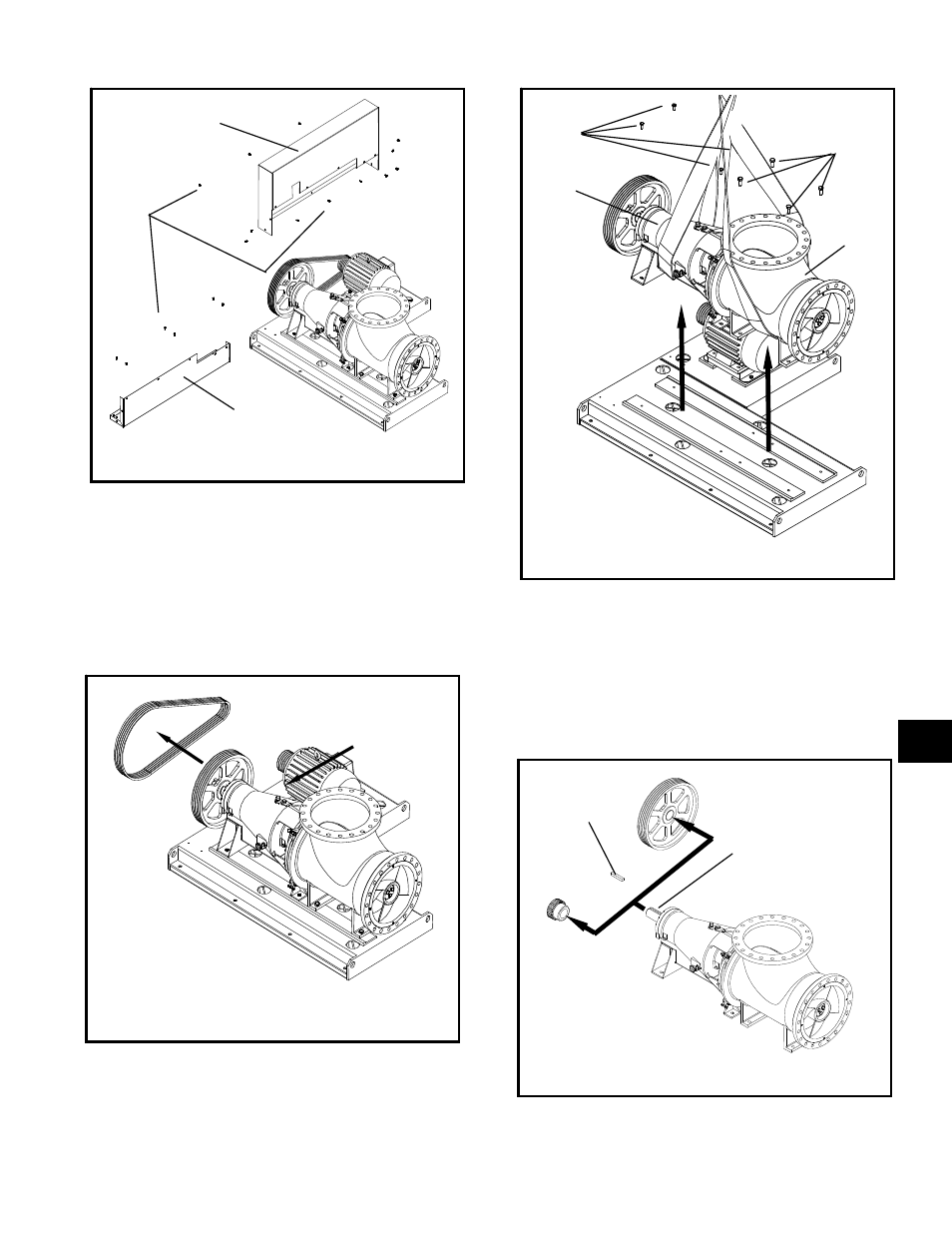

11. Remove the pump to sub-base bolts (372V) and
wrap lifting straps or chains around the bearing
housing (134C) and elbow (315A), see Fig. 34.
Using a crane, lift the pump vertically from the sub-
base. Be careful not to damage the pump by
striking any beams or walls that may be near the
pump. If any shims are found under the bearing
housing feet retain them for re-assembly later.
12. Depending on the drive type, remove the hub
fasteners that hold the coupling or pump sheave to
the shaft (122). Remove either a coupling half or
pump sheave and key (400). If the coupling half is
interference fit, heat may be necessary to remove it
from the shaft. Drive instructions are included with
the data package. Follow the manufacturer’s
instructions for coupling or sheave removal.
Fig. 32
500
500
500
Fig. 33
SHIFT
SLIDE
BASE
REMOVE
BELTS
Fig. 34
327V
327V
315A
134C
Fig. 35
400
122
6
