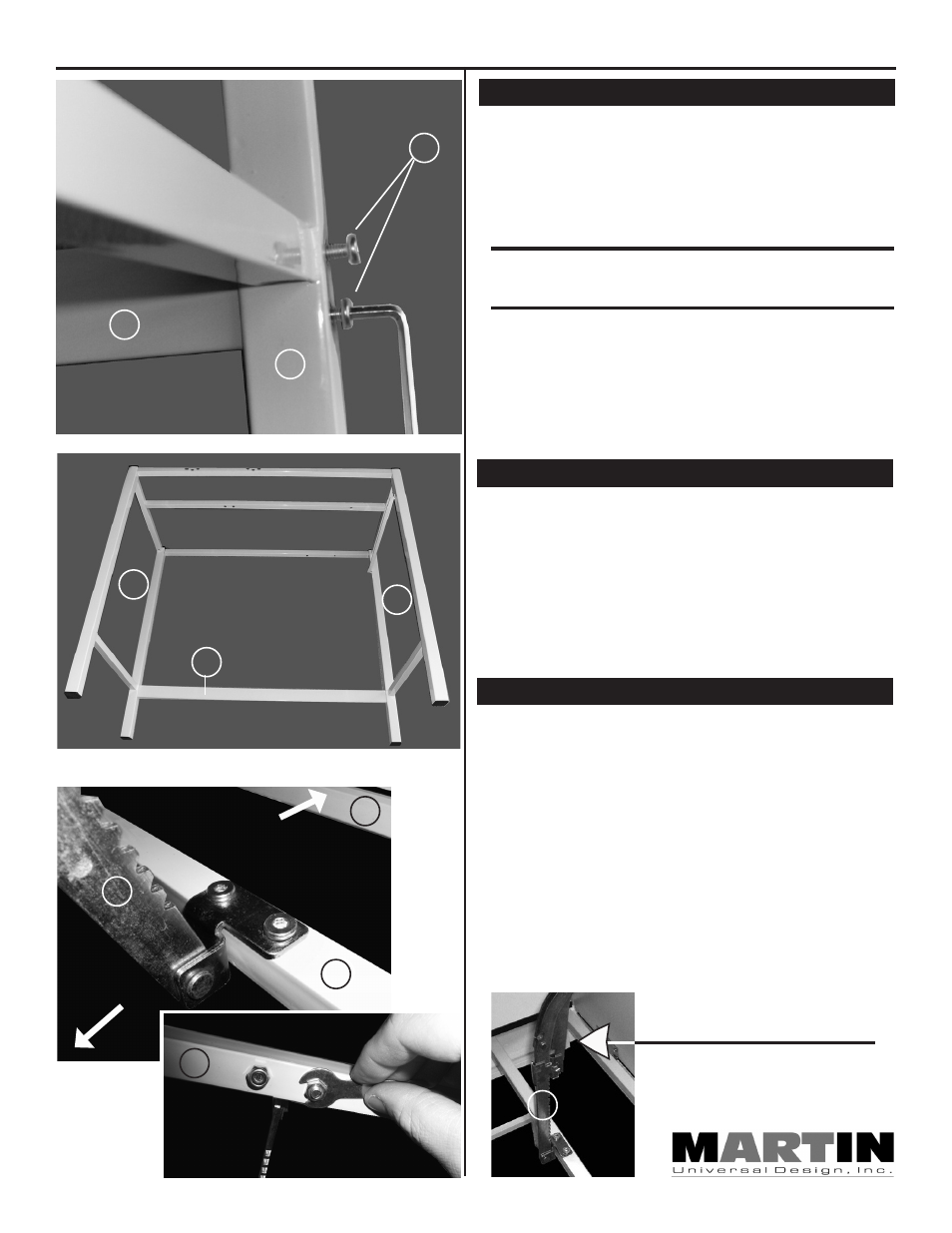

Manchester Split-top Table Assembly Instructions
Attach lower wider Cross Support (part F) to lower
portion of base by lining up the two holes on each end
of Part A & B with the two holes found in each end of
Part F. Secure by using two each 6x50mm Hex Bolts
in each end.
SEE FIG 9.
PLEASE NOTE: DO NOT OVERTIGHTEN HEX BOLT
to cause frame to bend.
B
F
N
FIG 9
STEP 5] Attach Lower Cross support
If you assembled the base correctly, the assembled
base should now look like FIG 10.
STEP 6] Assembly Base of Table, cont’d
FIG 10
F
B
A
This step involves attaching the Tilt Mechanism (Part
J) to the Base. Find the 2 holes on top side of cross
support (part D). Secure Tilt Mechanism to this cross
support using 2 each 6x30mm Hex Bolts (Part O) & 2
each Hex Nuts (Part U). The Nuts are to be positioned
on the underside of cross support D. Use wrench (part
D1) to hold nuts while tightening down Hex bolts. See
FIG 11 & FIG 11B for proper positioning.
PLEASE NOTE: The elbow of the Tilt Mechanism is
to be pointed to the rear of the table Base.
See below for Photo that shows this.
STEP 7] Attach Tilt Mechanism to Base
FIG 11
FIG 11B
This is the underside
of Part D
Front of Table
Rear of Table
Elbow of the Tilt Mechanism
faces the rear of the table
J
D
D
E
J
