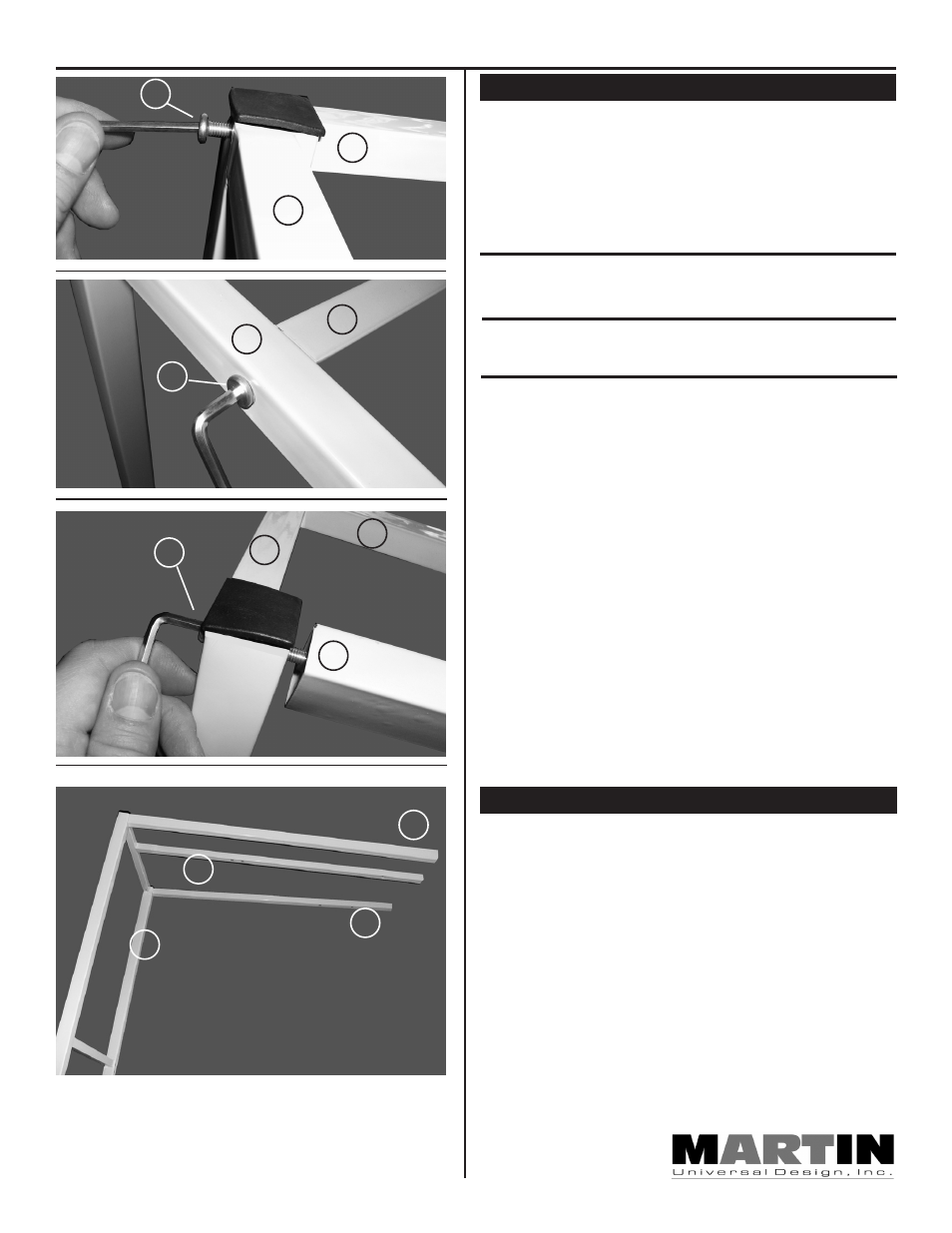

STEP 1] Assembly Base of Table
Begin by assembling the base by taking the left side
(part A) and attaching the three cross supports (part
C, D & E) using 1 each 6x50mm hex bolts (part N) into
each hole found on the outside side edge of Part A and
lining that hole up with the hole in the end of each cross
support. Tighten hex bolt with Allen Wrench (part C1).
SEE FIG 1,2 & 3
PLEASE NOTE: The Black square caps as shown in
FIG 1 indicate the top side of Parts A & B
PLEASE NOTE: DO NOT OVERTIGHTEN HEX BOLT
to cause frame to bend.
Pg. 5
FIG 3
Manchester Split-top Table Assembly Instructions
A
C
N
A
D
N
FIG 1
FIG 2
N A
D
E
This is what your partial assembled base should now
look like. See FIG 4.
D
E
C
A
STEP 2] Assembly Base of Table, cont’d
FIG 4
May 08- RPI
Attach cross support (part D) to Side A
FIG 2.
Attach cross support (part E) to Side A
FIG 3.
