Team Associated RC8.2e - Manual (Page 30)

30

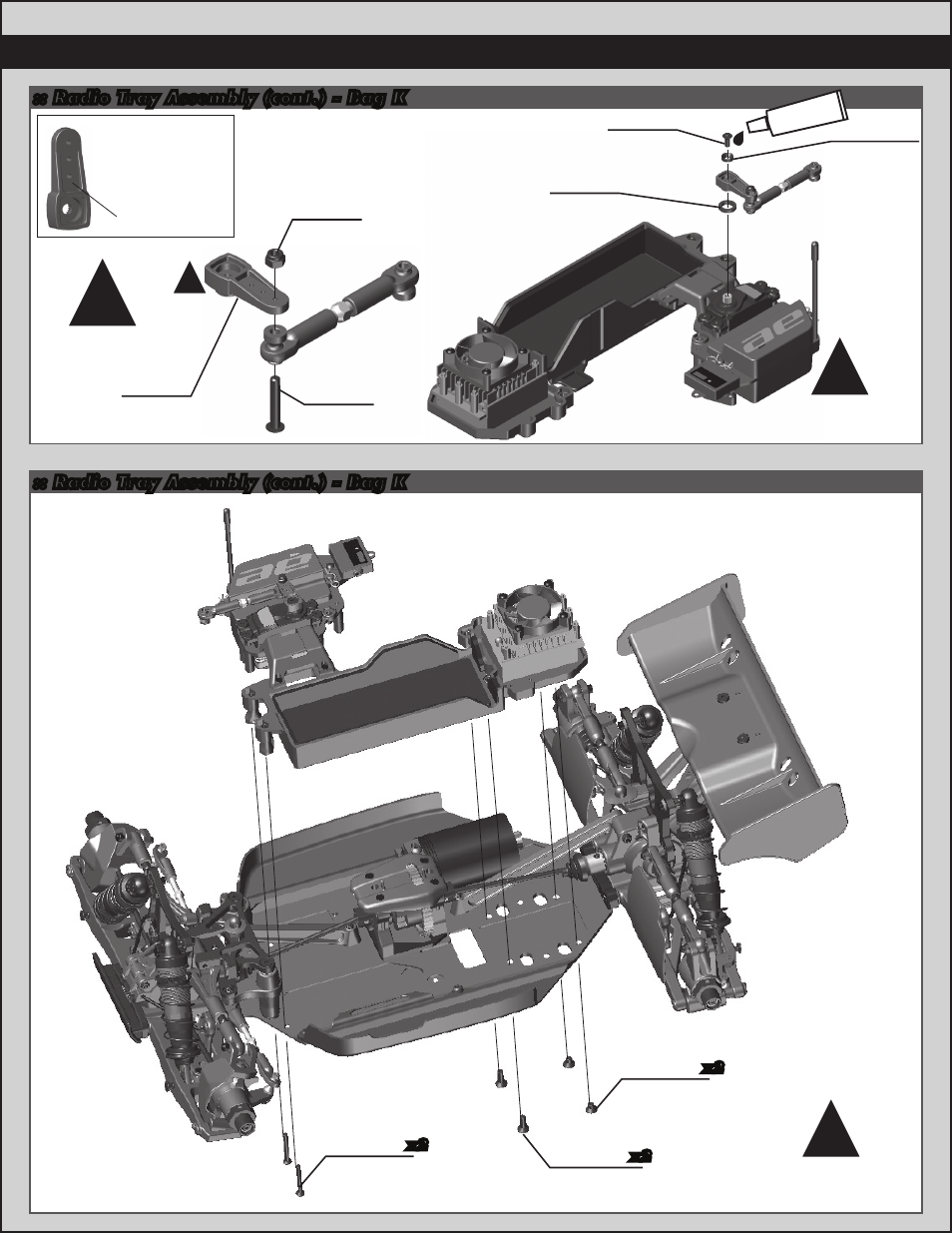

:: Radio Tray Assembly (cont.) - Bag K
:: Radio Tray Assembly (cont.) - Bag K
Enlarge holes
in servo horn!
!
A - Airtronics
F - Futaba
H - Hitec
J - JR
Printed here
!
2308
3x18mm
bhcs
25201
3x8mm
fhcs
89007
Servo
horn ring
89007
Steering
servo horn
89007
Servo cone
washer
#1596
thread lock
25215
M3
locknut
89213
4x6mm
fhcs
89211
3x26mm
fhcs
x2
x2
89214
4x12mm
fhcs
x2
Note: hook and loop
straps are removed
for view clarity.
!
Note: hook and loop
straps are removed
for view clarity.
!
