Team Associated RC8.2e - Manual (Page 24)

24

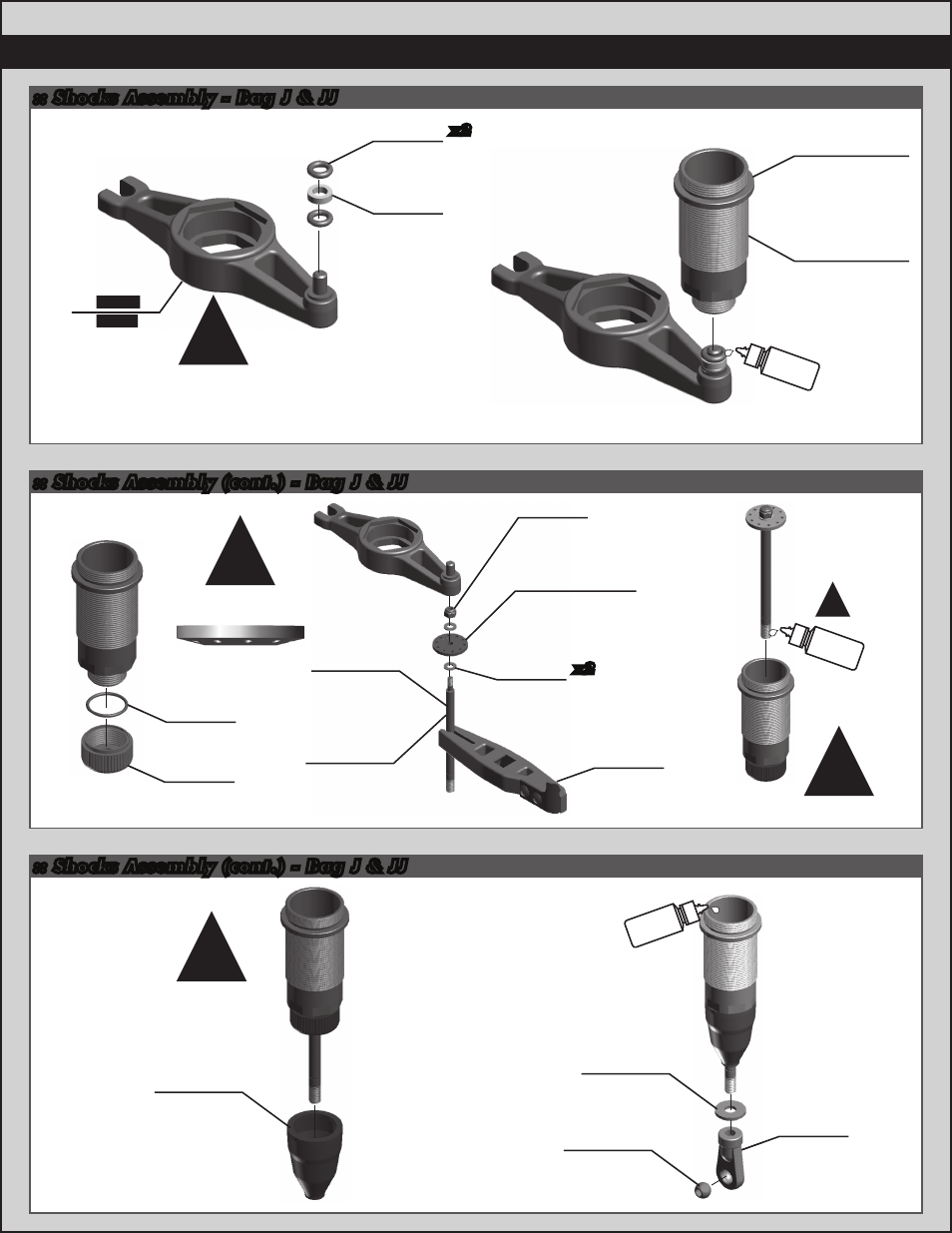

:: Shocks Assembly - Bag J & JJ
:: Shocks Assembly (cont.) - Bag J & JJ
:: Shocks Assembly (cont.) - Bag J & JJ
89358
Lower
shock tool
x2
x2
89066
Shock
O-rings
89278
2.5mm
piston
washer
89492
16mm piston
5x1.1 + 5x1.2
89215
Locknut
(piston)
89352
Spacer
89352
O-Ring
89352
Bottom
nut
89358
Upper
shock
tool
89469
HD shock
ends
89291
16x29mm
FT shock body
(front)
89344
16x38mm
FT shock body
(rear)
!
Shock
fluid
Shock
fluid
Use the lower shock tool
to load the two o-rings
and spacer for easy
lubing and installation
into the shock body
One drop of shock
fluid on threads.
Install piston tapered
side down.
Short boots for
front shocks.
Long boots for
rear shocks.
RACERS TIP:
Try 35 wt or 40wt
shock fluid in the
front shocks for
less agressive
steering.
!
!
!
!
89555
4x36mm
HD shock
shaft, rear
89554
4x26mm
HD shock
shaft, front
89556
RC8.2
shock boots
(fr/rr)
89352
Shock boot
washer
89469
Shock rod
end ball
Fill to top with
shock fluid:
Front: 30wt
Rear 30 wt
Shock
fluid
