Team Associated RC8.2e - Manual (Page 27)

27

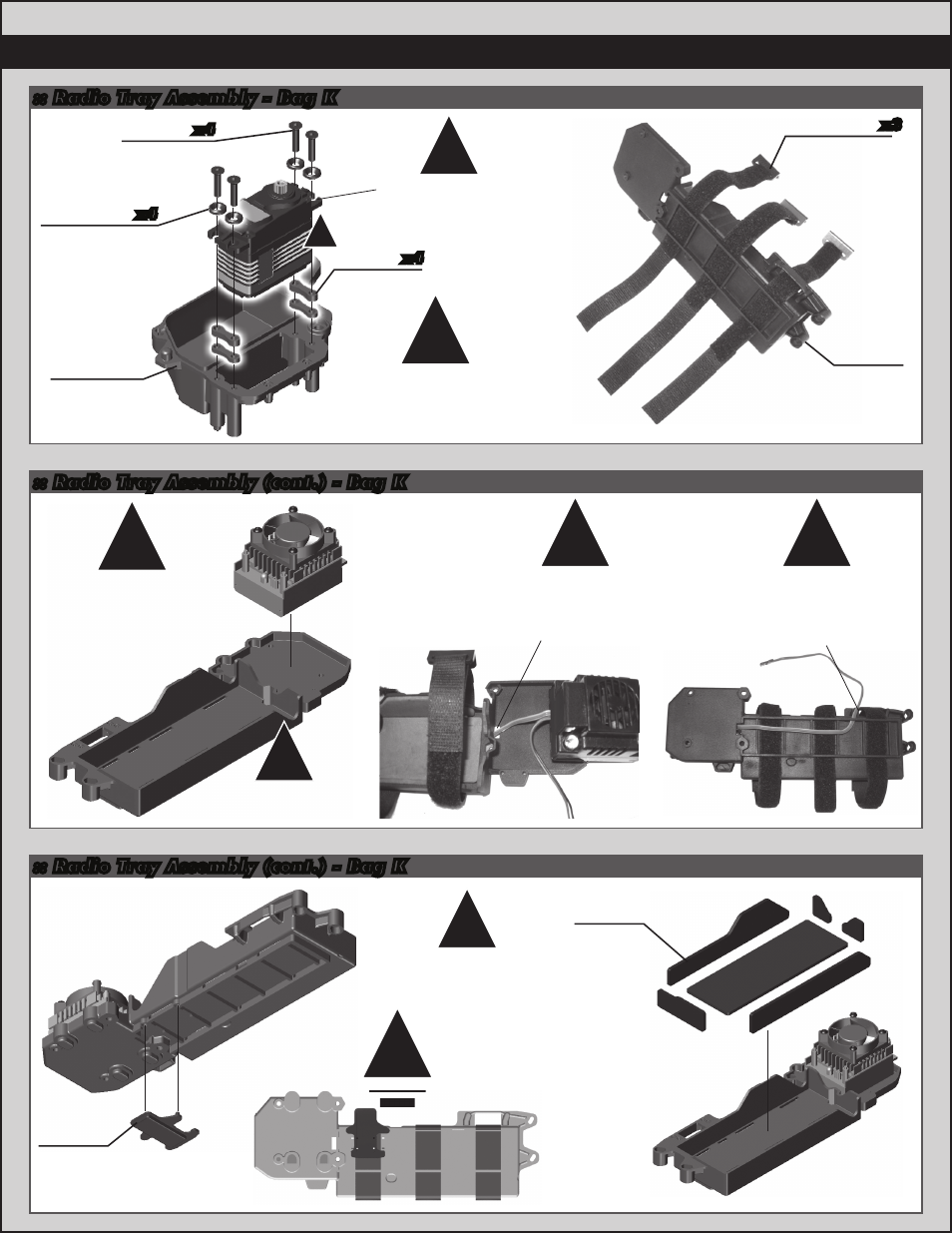

:: Radio Tray Assembly - Bag K
:: Radio Tray Assembly (cont.) - Bag K
:: Radio Tray Assembly (cont.) - Bag K
89208
3x14mm
fhcs
89504
Radio
tray
(bottom)
x4
89006
Servo
spacers
89229
Countersunk
washers
(blue)
89506
Hook and
loop battery
straps
89505
RC8e
battery
tray
x3
x4
x4
Servo mounts vary per
servo manufacturer.
Space your servos low
to the chassis without
touching the bottom.
Note: speed control
not included.
Attatch with servo
tape #6727.
Note: hook and loop
straps are removed
for view clarity.
Note: hook and loop
straps are removed
for view clarity.
Note: route the
speed control
receiver wire
through this
opening.
Note: route the
speed control
receiver wire
through this
opening.
!
!
!
!
! !
!
89509
Flywheel
opening
cover
89507
Battery
tray pads
Bottom
View
!
Note: servo
not included.
!
