Team Associated RC8.2e - Manual (Page 26)

26

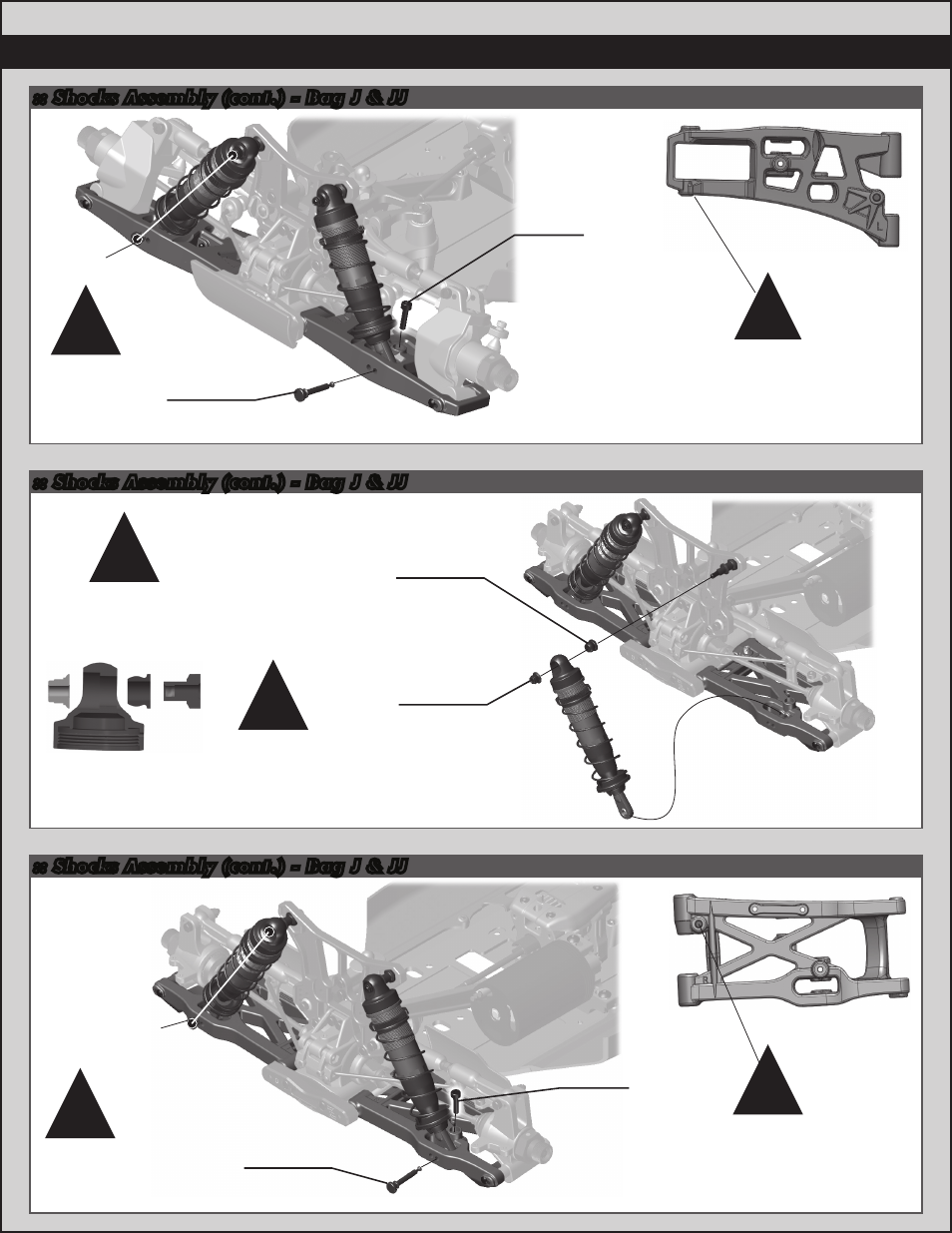

:: Shocks Assembly (cont.) - Bag J & JJ
:: Shocks Assembly (cont.) - Bag J & JJ
:: Shocks Assembly (cont.) - Bag J & JJ
Install
two rear
shocks.
Install
two rear
shocks.
!
!
Note the direction
of the shock cap
when installing onto
shock standoffs
!
After installation, adjust droop
screw to get a front shock length of
106mm measured center to center
on the shock cap / eyelet.
After installation, adjust droop
screw to get a rear shock length of
122mm measured center to center
on the shock cap / eyelet.
!
!
91069
Shock mount
pin, steel
25612
M3 locknut
with flange
89083
Shock
bushing
89454
3x12mm
shcs
89454
3x12mm
shcs
Install
two front
shocks.
106mm
!
91069
Shock mount
pin, steel
122mm
