Team Associated RC8.2e - Manual (Page 15)

15

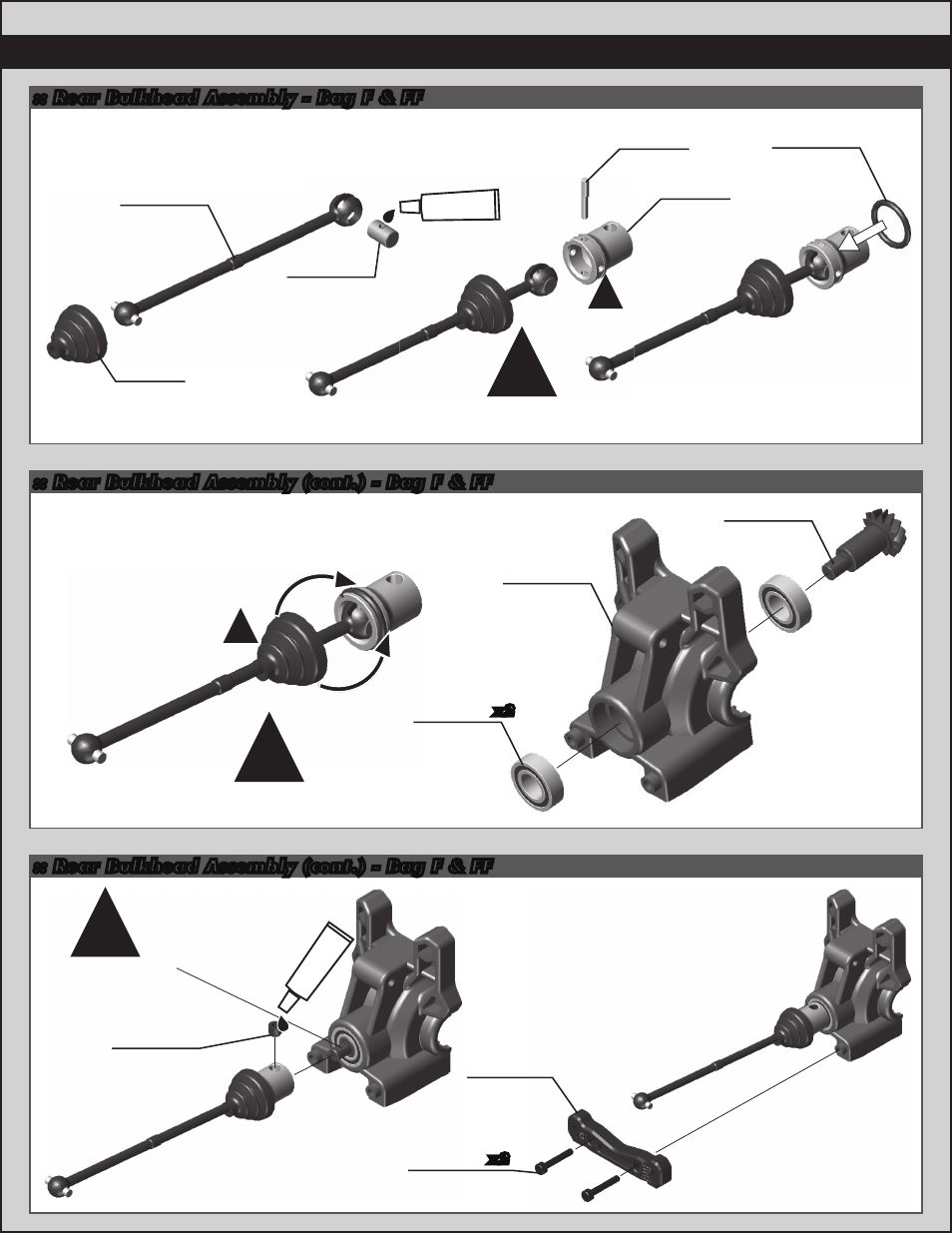

:: Rear Bulkhead Assembly - Bag F & FF
:: Rear Bulkhead Assembly (cont.) - Bag F & FF
:: Rear Bulkhead Assembly (cont.) - Bag F & FF
#6588
black grease
89560
Center CVA
bone +3mm
(rear)
89557
Pin
retainer
O-ring
89106
CVA
u-joint
coupler
89106
CVA pin
89286
Gearbox
input cup
(aluminum)
89557
Pin
retainer
boot
25236
8x16mm
bearing
25191
3x18mm
shcs
89462
Aluminum
C-plate
89017
Inner
gearbox
89114
Diff pinion
gear
x2
x2
89221
5x4mm
setscrew
Key setscrew onto
flat side of shaft.
Tighten with no
endplay.
!
Wrap boot over the O-Ring.
!
!
Input cup has additional holes
for crosspin to extend the life of
the input cup.
!
!
#1596
thread lock
