Team Associated RC8.2e - Manual (Page 29)

29

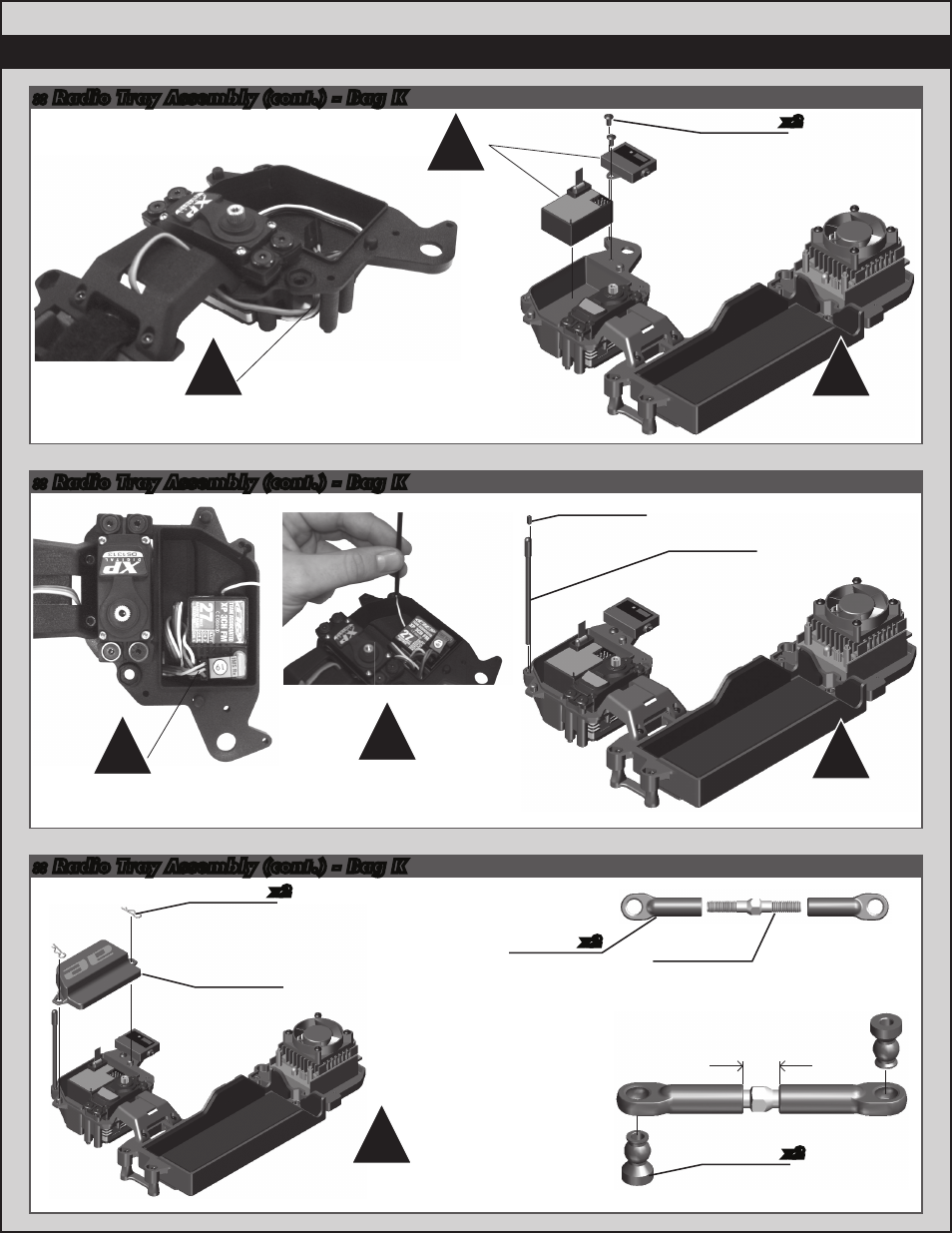

:: Radio Tray Assembly (cont.) - Bag K
:: Radio Tray Assembly (cont.) - Bag K
:: Radio Tray Assembly (cont.) - Bag K
31531
3x6mm
bhcs
21173
Small
body clip
89078
balljoint
8mm
89504
Radio tray
(top)
89219
3x5mm
setscrew 6338
Antenna
tube and
cap
x2
x2
x2
Note: route the servo
wire to the receiver
through this opening.
Note: plug in your
speed control and
servo to your receiver.
Note: route your receiver’s
antenna wire through the
slot in the radio tray, and
through your antenna tube.
Note: receiver and
transponder not
included.
Note: hook and loop
straps are removed
for view clarity.
Note: hook and loop
straps are removed
for view clarity.
Note: hook and loop
straps are removed
for view clarity.
!
!
!
!
!
!
!
89078
Straight
eyelet
89267
32mm steel
turnbuckle
x2
