28
RC8Te
SC8e
RC8Te
SC8e

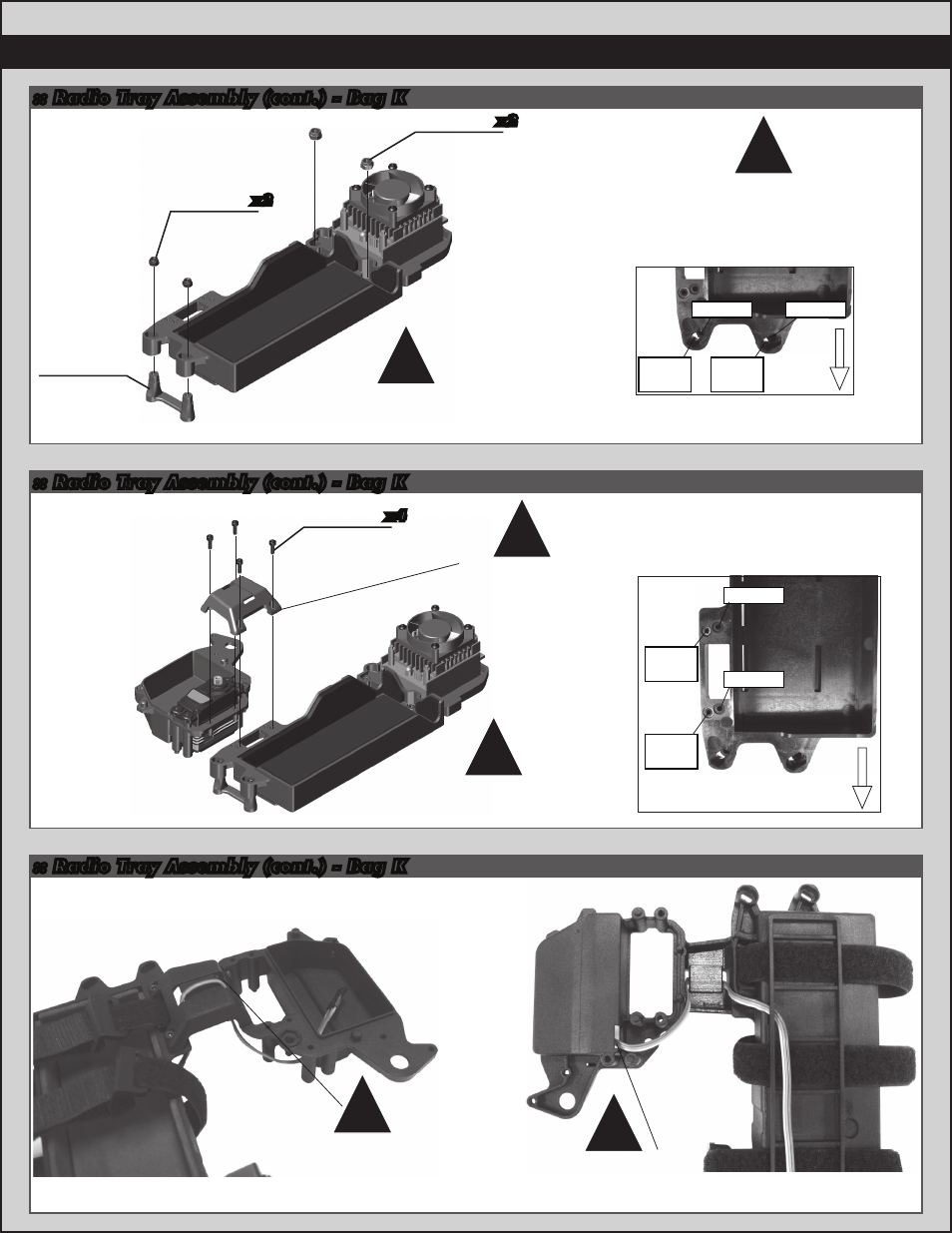

:: Radio Tray Assembly (cont.) - Bag K
:: Radio Tray Assembly (cont.) - Bag K
:: Radio Tray Assembly (cont.) - Bag K
25215
M3
locknut
89222
2.5x8mm
shcs
89216
M4
locknut
Front
Front
x2
x4
x2
89509
Battery
tray post
Note: hook and loop
straps are removed
for view clarity.
Note: there are two
different positions
for the locknuts
depending on what
vehicle you have.
Note: hook and loop
straps are removed
for view clarity.
Note: route the speed
control receiver wire up
and over the bridge
Note: route the speed
control receiver wire
through the radio box
hole.
Note: the cutout
on the battery tray
bridge is facing the
battery tray!
!
!
!
!
!
!
RC8.2e
RC8.2e
RC8.2e
RC8.2e
RC8Te
SC8e
RC8Te
SC8e
