DMX Repeater Pro User’s Guide
5
C
ONFIGURATION

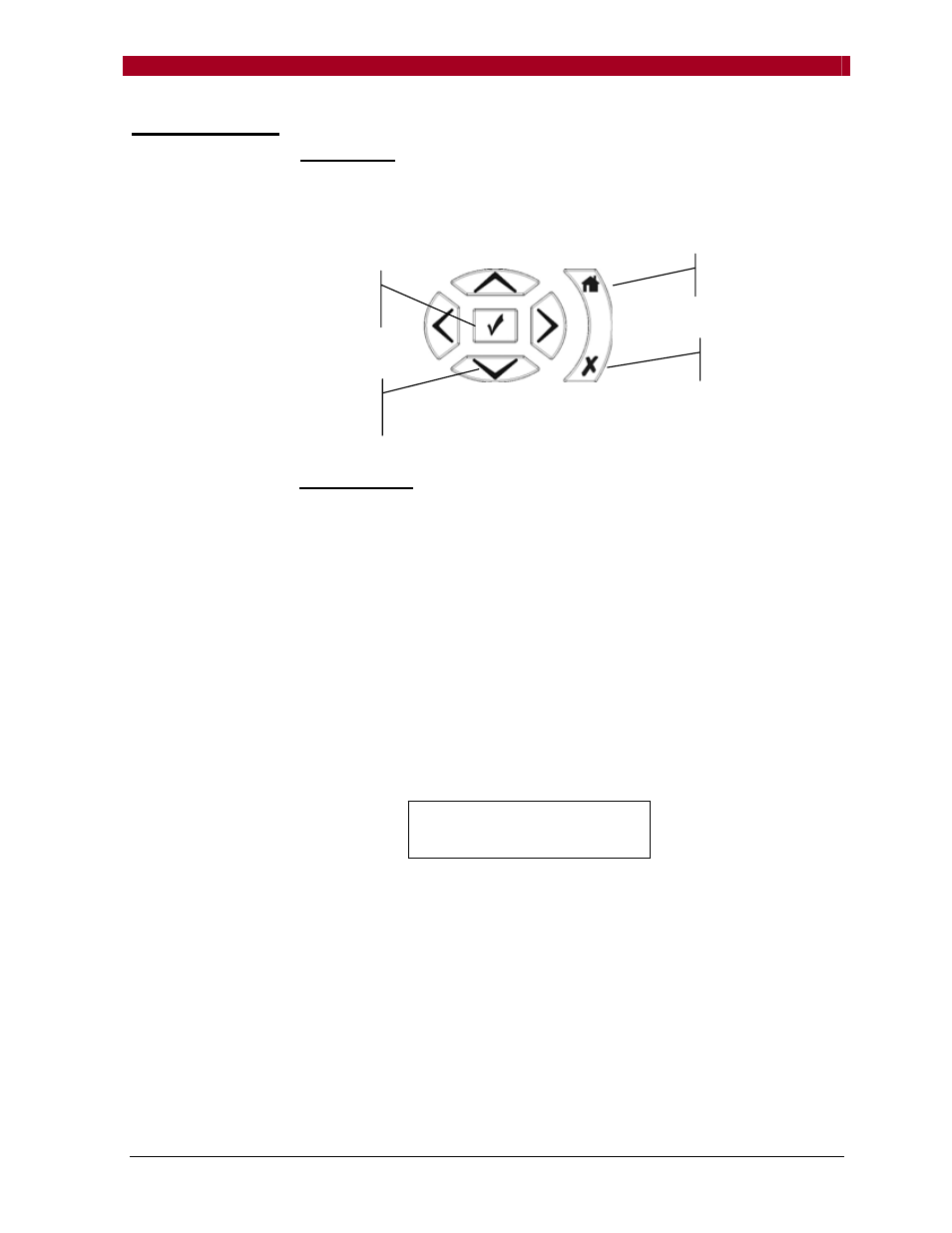

Navigation
The functions for the DMX Repeater Pro are configured using the
menu keypad to the right of the LCD.
Basic Modes
The DMX Repeater Pro operates in one of three basic modes.
Individual ports can be further customized, as described in “Port
Customization Options” below. Certain DMX parameters and the
LCD backlight can also be modified.
To begin, press the Home button. The screen will read “Pathway
DMX Repeater Pro” (some older firmware may say “Pathway
RDM Repeater”) and the check-mark will light up green. Press
the up/down arrows to cycle through the following screens: “DMX
Monitor & Console”, “Status Information” and “Repeater
Configuration”. When that last choice appears, press the check-
mark to select. Press the up/down arrows until this screen
appears:
Press the check-mark to select, then the up\down arrows to cycle
through the choices which will appear on the lower line. Use the
check-mark to accept the mode you require. Setting a basic
mode will clear any port-by-port customization.
Repeater: A one-in/eight-out opto-splitter with RDM talk-back
enabled on all ports. This is the factory default mode. RDM can
be disabled on a port-by-port basis to accommodate some older
equipment that may misinterpret RDM requests as DMX level
changes. See “Port Customization Options”.
Home
Cancel
Navigation
Buttons
OK
Button
▲Personality ▲
▼Repeater
▼
