DMX Repeater Pro User’s Guide
13

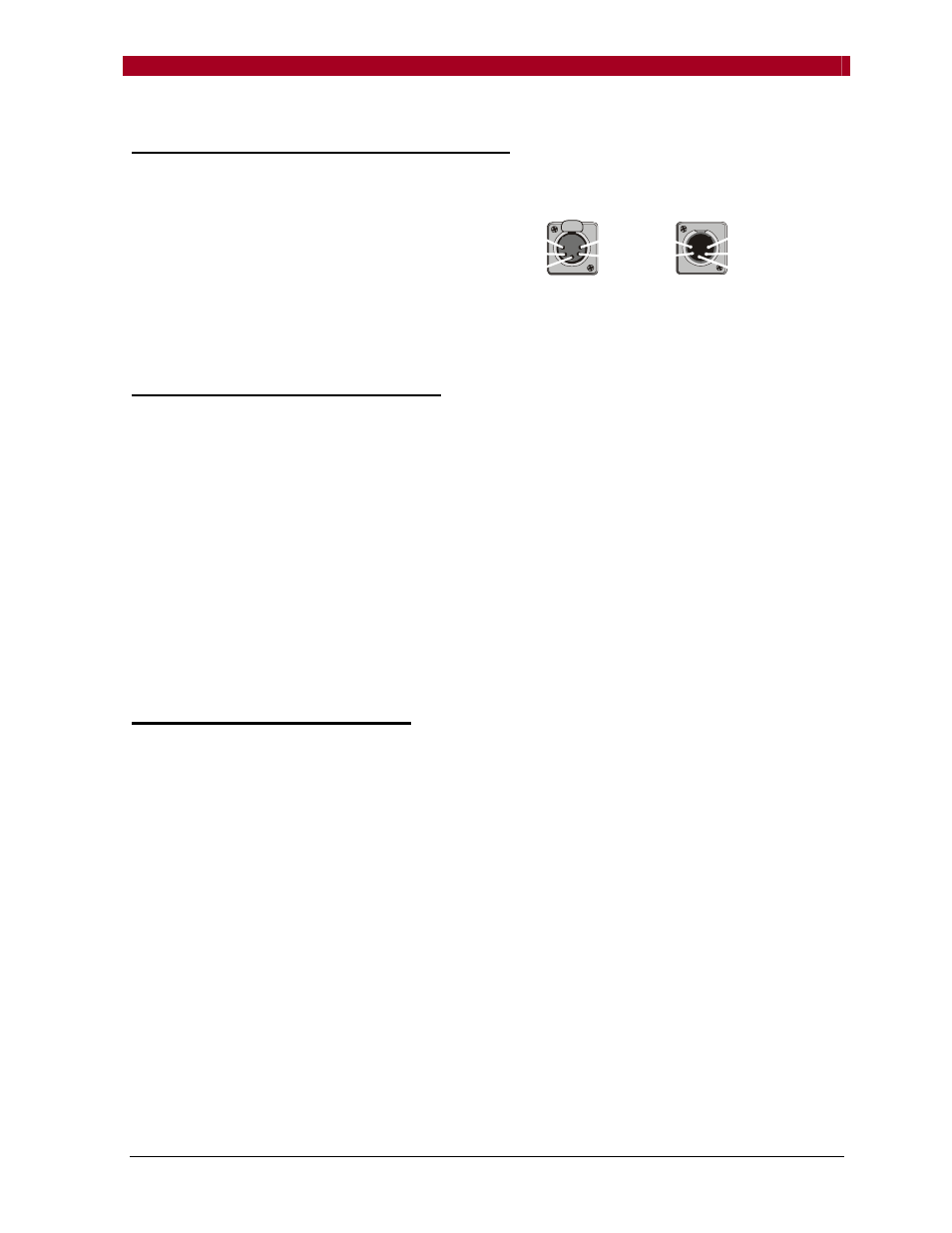

A
PPENDIX
A – XLR C
ONNECTOR
P
INOUTS
DMX512A
1 – Common
2 – Data –
3 – Data +
4 – Aux Data -
5 – Aux Data +
A
PPENDIX
B – D
EFAULT
S
ETTINGS
There is no global method of returning the DMX Repeater Pro to its factory settings.
If you need to manually reset the configuration, use the following as a checklist:
Personality: Repeater
DMX Hold Time: 0 seconds
DMX Speed: Fast
LCD Backlight: Full
Port x Source: Input (RDM)
- as it is possible to configure each port separately, you will need to check that
all eight are set to “I” (input) on the Port Status screen.
A
PPENDIX
C – S
PECIFICATIONS
Protocol Compliance: ANSI E1.11 DMX512-A and ANSI E1.20 RDM
Connectors: 1 – Male 5-pin XLR (normal input)
8 – Female 5-pin XLR (normal output)
or 9 – Phoenix-style 5-position terminal blocks
Protection: 2500V opto-isolation per port, 250V fault protection on DMX connectors
Data Link Fuses: Self-resetting thermal fuse
Power: 100-240VAC, 50-60Hz
Size: 432 x 152 x 44mm (17 x 6 x 1.75in)
Weight: 1.6kg (3.5lb)
Operating Temperature: 0°C - 40°C (32° to 104° F)
Operating Humidity: 10%-95% relative humidity, non-condensing
OUT (F) IN (M)
5
4
3
2
1
PUSH
5
4
3
2
1
