Glass Channels must be at
least 4” shorter than rail.

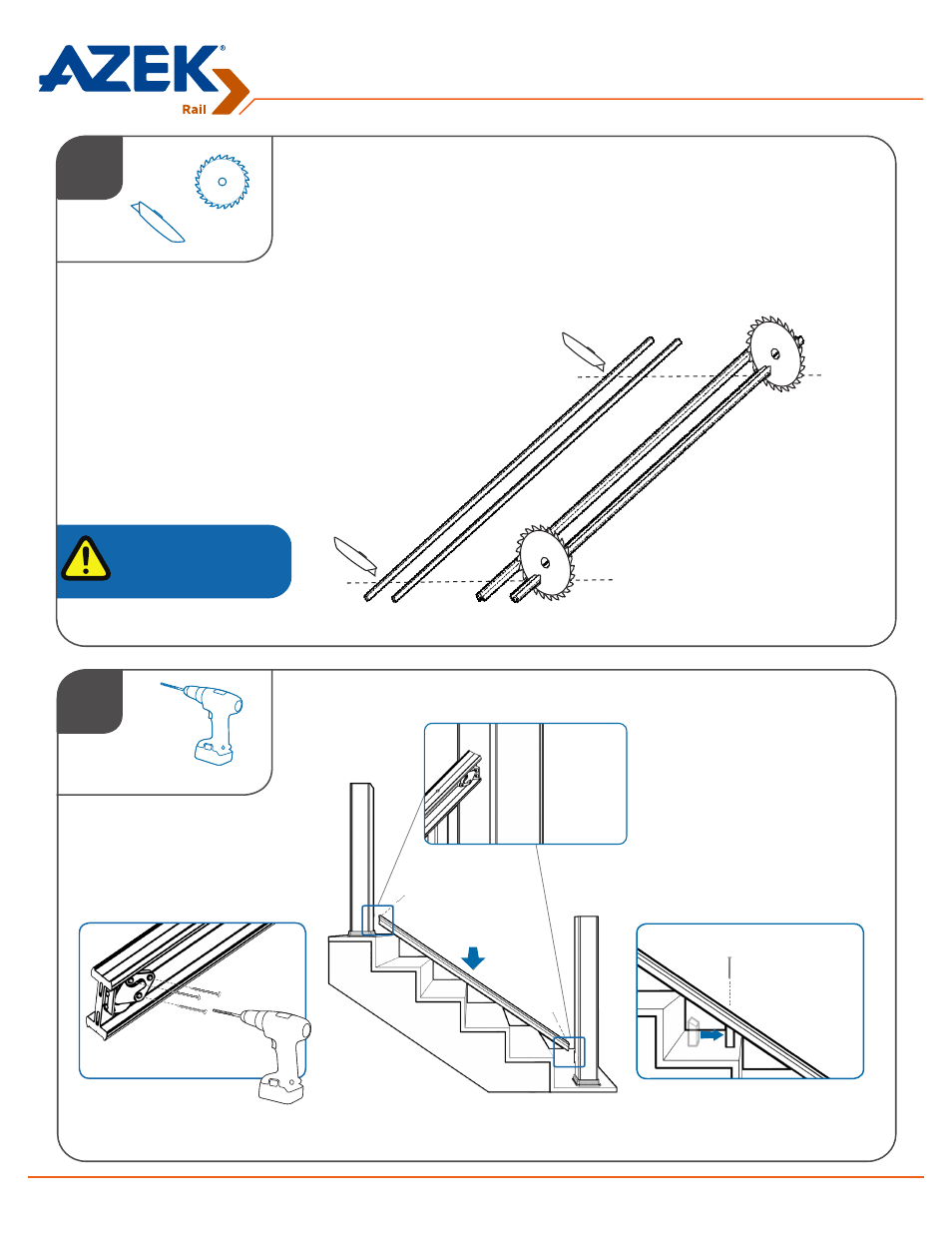

Installing AZEK Rail Stairs with Glass Infill

• Using lengths in Step 3 as a reference, measure and cut Top

and Bottom Glass Channels, as well as both Rubber Gaskets
at appropriate angle.

TRIM GLASS CHANNELS AND GASKETS

Pre-drill

7/64”

#8 x 3” Green

Coated
Screws

• Attach Mounting

Brackets to Top AND
Bottom Support Rails.

• Position Bottom Support Rail on the

center of the posts and secure Mounting
Brackets to posts.

• Trim Foot Block and wedge

under Support Rail & Attach.

Pre-drill through

Bottom Support

Rail ONLY with

3/16” bit

Bottom

Support Rail

#8 x 3”
Coated

Screw

INSTALL BOTTOM SUPPORT RAIL

Pre-drill 7/64”

#8 x 3/4” Coated

Screws

Center screw

aligned with

rail centerline
