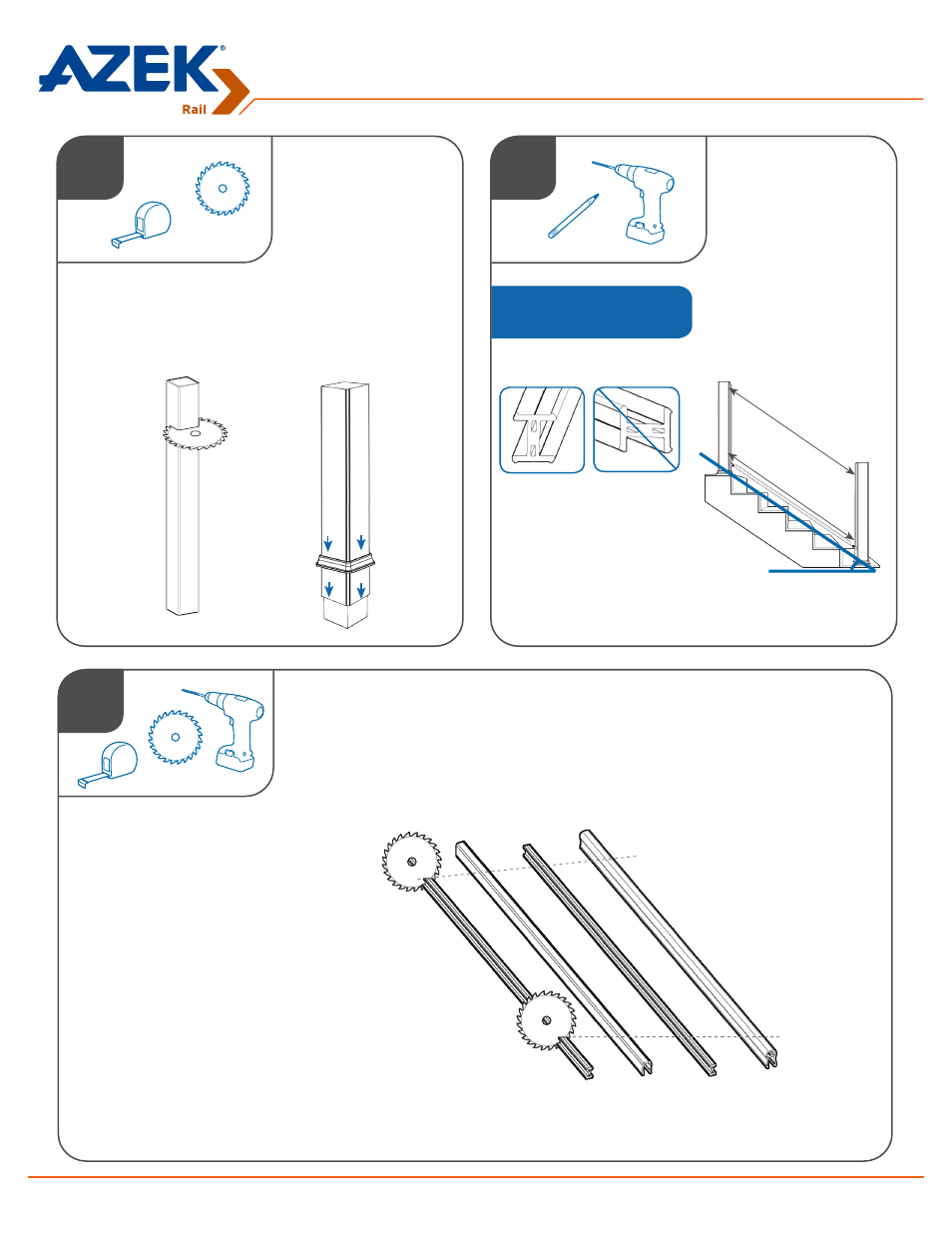

Installing AZEK Rail Stairs with CableRail by Feeney
®
ATTACH QUICK-CONNECT AND QUICK-CONNECT CABLE FITTINGS
MEASURE
SUPPORT RAILS
Support Rails are rotated 90° for
stair rail applications.
3
1
2
Top Rail Length
Bottom Rail Length
Stair Angle
Right
Wrong
• Trim Post Sleeve to
desired length.
INSTALL POST
SLEEVES
• Slide Post Sleeve and
Post Skirt over post
(do not force).
• Ensure posts are
square and plumb.
TRIM RAILS
• Transfer measurement from both Support Rails to Bottom Rail and Top Rail.
• Trim Top Rail and Bottom Rail to match the Support Rails at the appropriate
angle.
• Determine
measurements
and angle as shown.
• Trim both the Top
Support Rail and the
Bottom Support Rail
to those dimensions.
• Test fit rails to check
for accuracy.
Bottom
Rail
Top Rail
Top
Support
Rail
Bottom
Support
Rail
