AZEK Rail - Manual

Aluminum
Side Rails
The Universal Gate Kit is a convenient way to add a premium
gate to your railing system.
Consult your local building codes for gate requirements
Important Information
• The Universal Gate Kit is designed to work with RadianceRail, AZEK Premier
and AZEK Trademark only.
• The maximum width of a gate built with a Gate Kit is 48”.
• Gates should always swing away from the stairs when opening.
• Be sure to install on a post that is plumb; this is critical for the gate to operate properly.
• Installation is easiest with two people.

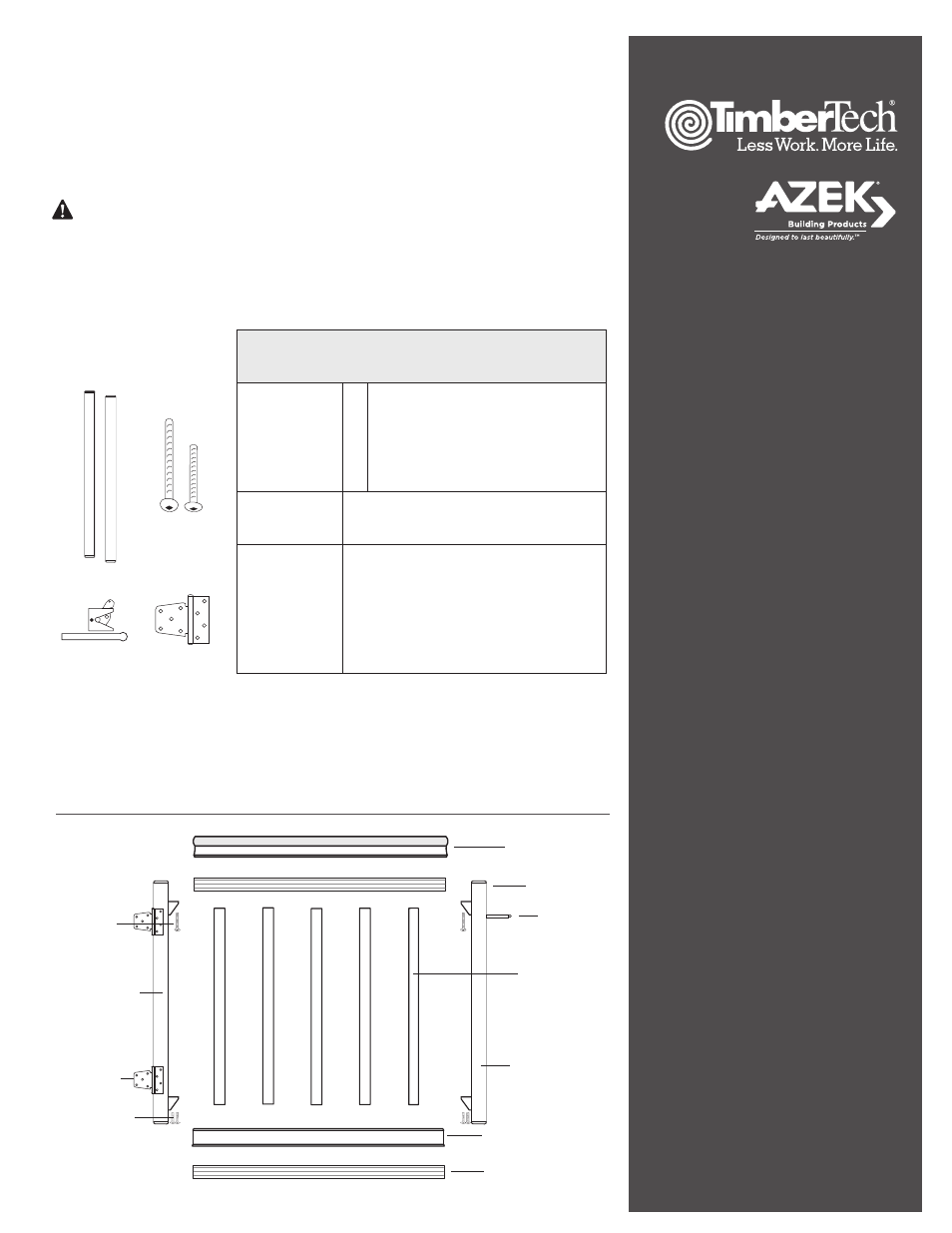

Component
Dimensions
Square Balusters
18 in 8’ Kits
Baluster Screw Kit
RadianceRail
Gate Kit
Components Needed For Installing
One Gate with the Universal Gate Kit
Tools
Recommended
• Ratchet
1 - Top Rail
1 - Bottom Rail
2 - Support Rails
T-20 Torx driver bit
*Additional items are included but are
not needed.
Rail Pack
Rail Pack
Baluster Pack
2 - Aluminum Side Rails (Brackets Attached)
2 - 4” Black Butt Hinges
1 - Gate Latch and Stop
8 - 1/4” x 1” Self-Drilling Flat Head Screws (black)
10 - 1/4” x 2” Flat Head Screws (black)
2 - 3/16” x 3/4” Self-Drilling Screws (black)
4 - 1/4” x 1” Screws (frame color)
2 - 1/4” x 1-3/4” Screws (frame color)
Aluminum Side Rails
Tools Required
• Miter Saw
(blade designed
for finish cuts)
• Drill
• Level
• Tape
Measure
Baluster Screw Kit-8’ Kits
18 - #8x2” Coated Screws
18 - #8x3” Coated Screws
Butt hinges Gate Latch & Stop
Assorted Screws
Top Rail
Support Rail
Baluster
Gate Latch
Aluminum
Side Rails
Bottom Rail
Support Rail
Screws
Black
Butt
Hinges
Screws
Manufactured for use with:
TIMBERTECH.COM
AZEK.COM
UNIVERSAL GATE KIT
• 7/64” and 11/64”
drill bits
• #2 Phillips Driver Bit
