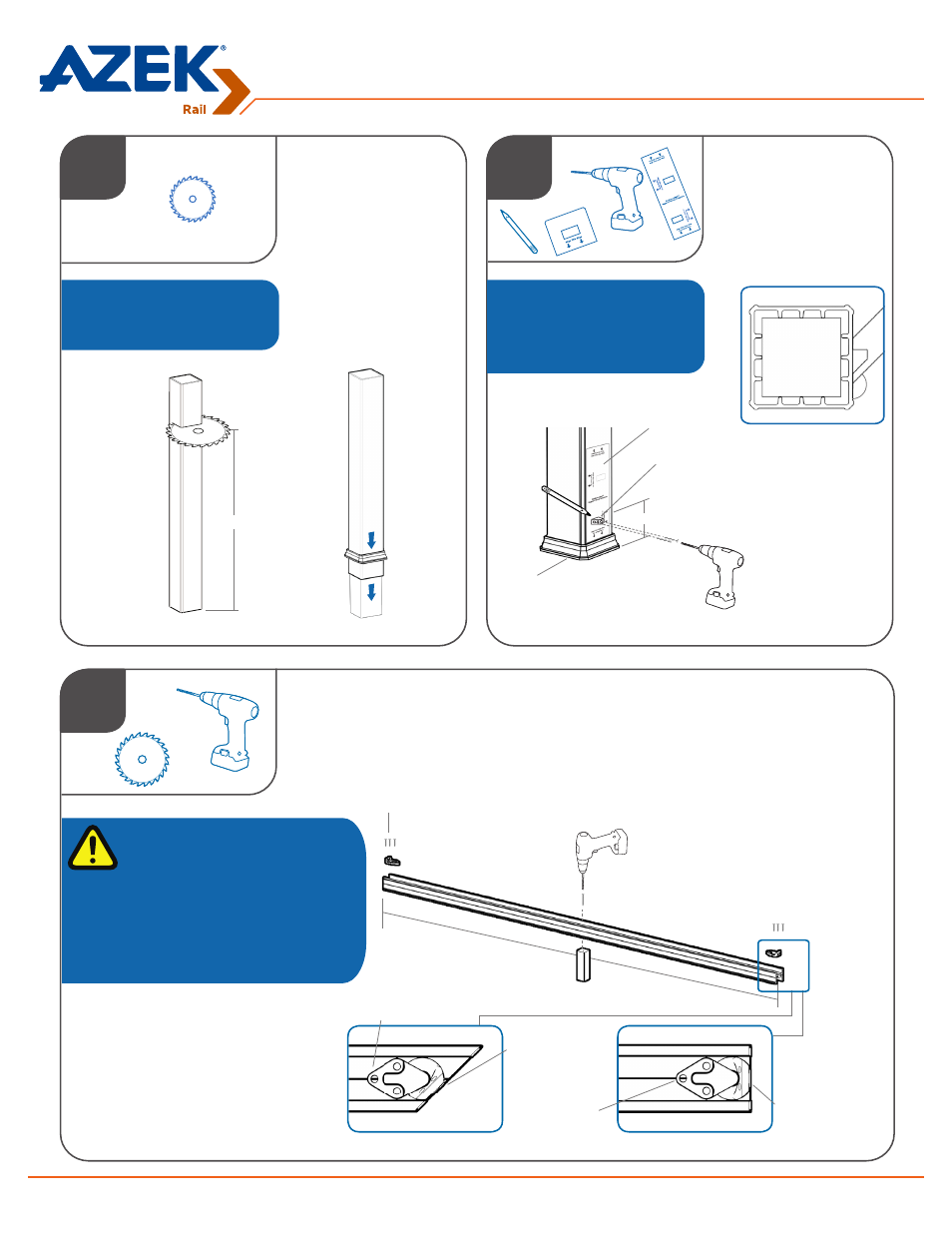

Installing AZEK Rail with CableRail by Feeney ®
40” above deck surface is
optimal for 36” railing heights. If you do not have a the
template, position
the top of the Support Block 4”
above the deck.
INSTALL LOWER
SUPPORT BLOCK
• Position template at
bottom of post
sleeve above post
skirt.
• Trim Post Sleeve to
desired length.
INSTALL POST
SLEEVE
• Slide Post Sleeve and
Post Skirt over post
(do not force).
• Ensure posts are
square and plumb.
Optimal 40”
45°
For angled rail installations
- align angled face of Support
Block parallel to rail section.
CUT AND ASSEMBLE BOTTOM SUPPORT RAIL
•Cut the Bottom Support Rail to length.
3
1 2
Straight Section Angled Section
Center screw aligned
to rail centerline
Center screw
aligned to rail
centerline Bracket set
flush to rail
face
Bracket set
flush to rail
face
Foot Block
7/64” Pre-drill
#8 x 3” Coated
Screws
7/64” Pre-drill
#8 x 3/4” Coated Screws
1/2
1/2
4”
Template
Support
Block
Post
Skirt
7/64” Pre-drill
#8 x 3” Green
Coated Screws
For sections up to 6’: Place one Foot
Block in the center of the rail.
For sections 6’ to 8’: Space two Foot
Blocks approximately at 1/3 intervals on
the rail.
For sections 8’ to 10’: Space three Foot
Blocks approximately at 1/4 intervals on
the rail.
