Stand-alone installation – Vaddio HE120 Operating Instructions User Manual
Page 16
16
Stand-alone installation
(when the mount bracket is going to be used) (continued)
5
Check the mounting.
6

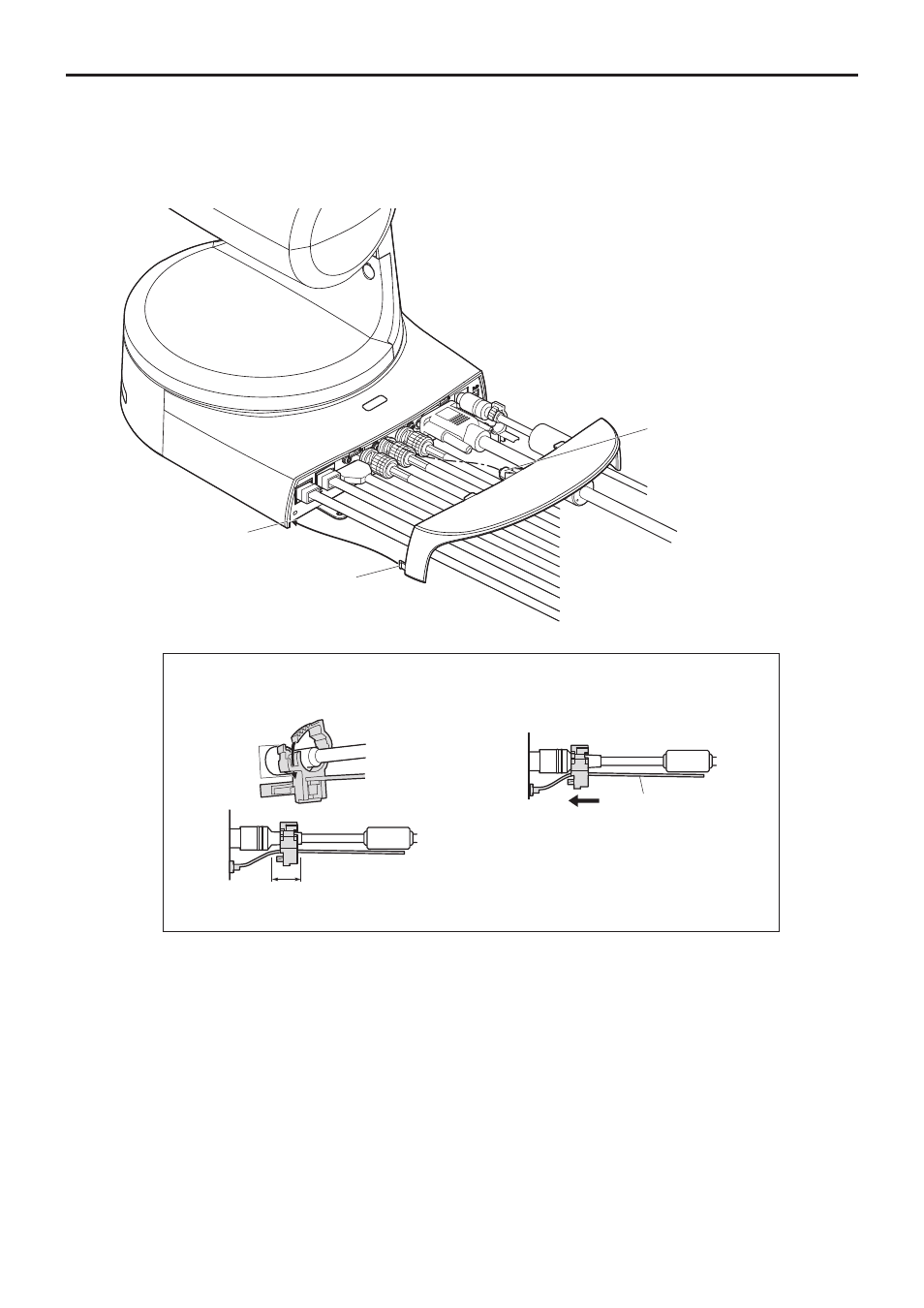

Connect the rear panel connectors.
Coaxial cable
Coaxial cable
Coaxial cable
VGA cable
HDMI cable
AC adaptor cable
Square hole
(one at either side)
Tab (one at either side)
Screw for cable cover (M3 screw)
(with flat washer, spring washer)
LAN cable
LAN cable
How to secure the DC plug
Loosely secure the cable clamp.
Cable clamp
Loosely secure the cable clamp
in the area shown above.
Fasten the cable clamp.
Strap part
Take hold of the strap part, slide
the cable clamp until it stops
moving, and then secure it tightly.
7
Attach the cable cover.
