Installation Instructions
How to install and connect the unit
(continued)
6

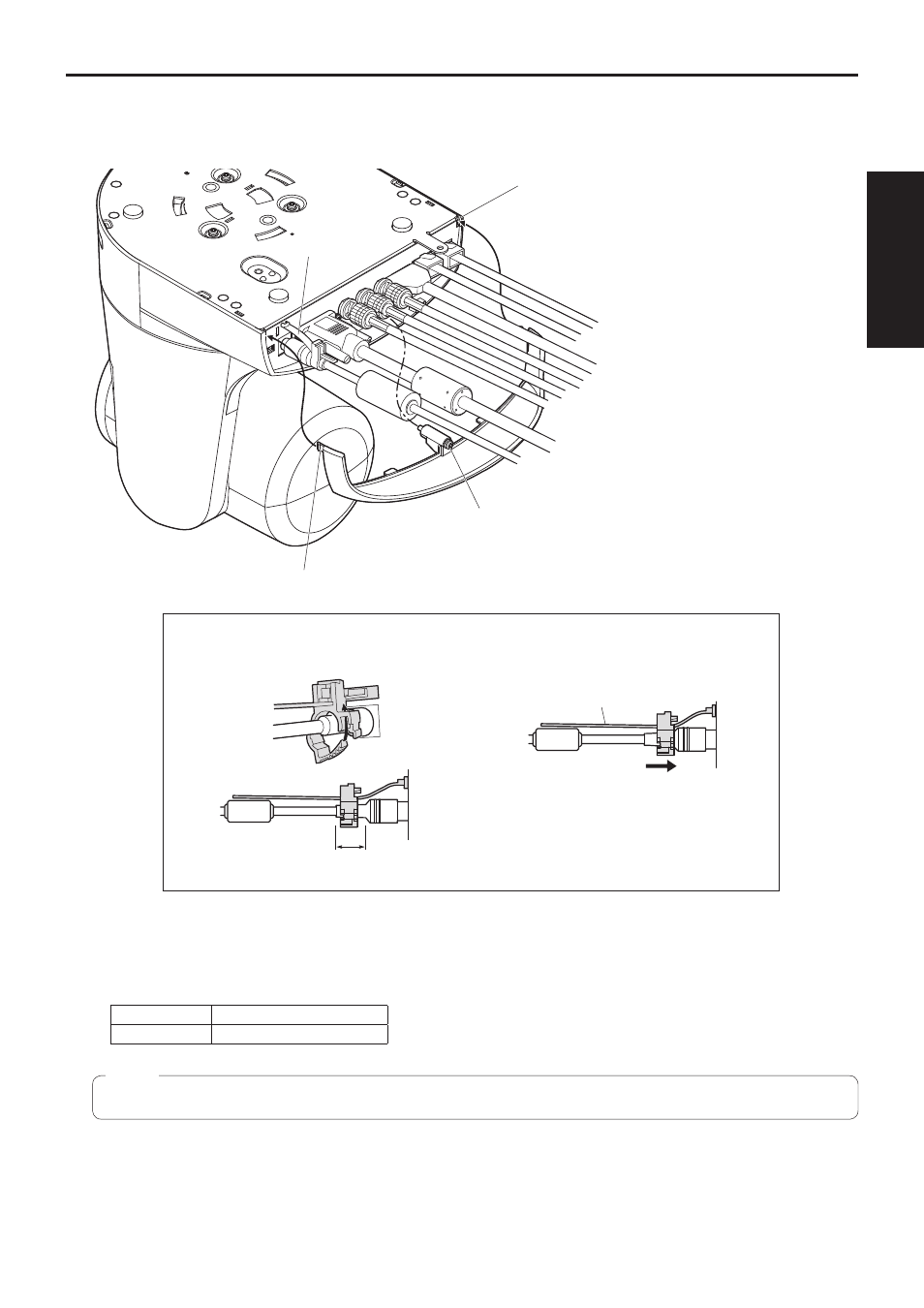

Connect the rear panel connectors.
Anchor the AC adaptor cable in place using the cable clamp.
LAN cable
LAN cable
VGA cable
HDMI cable
Coaxial cable
AC adaptor cable
Square hole (one at either side)
Tab (one at either side)
Screw for cable cover (M3 screw)
(with flat washer, spring washer)
Cable clamp
Coaxial cable
Coaxial cable
  How to secure the DC plug
 Loosely secure the cable clamp.
Cable clamp
Loosely secure the cable clamp
in the area shown above.
 Fasten the cable clamp.
Strap part
Take hold of the strap part, slide
the cable clamp until it stops
moving, and then secure it tightly.
7
Attach the cable cover.
  Fit the two tabs on the cable cover into the square mounting hole at either side of the rear panel.
  Secure the cable cover using the screw (M3  20 mm) provided.
Screw diameter Clamping torque
M3 0.78 N · m {8 kgf · cm}
  Engage the tabs on the cable cover so they fit into place perfectly, and check that the cover is not rickety.
Note
