Removing the camera
1
Turn off the circuit breaker and power.
2
Remove the cable cover.
  Remove the screw (M3) for the cable cover used to secure the cover.
  Push the tab parts of the cover to disengage the cover.
3
Disconnect the cables.
Disconnect the power cable, video cable, and control cable, etc.
4
Remove the main unit mounting screw used to secure the unit and mount bracket.
5

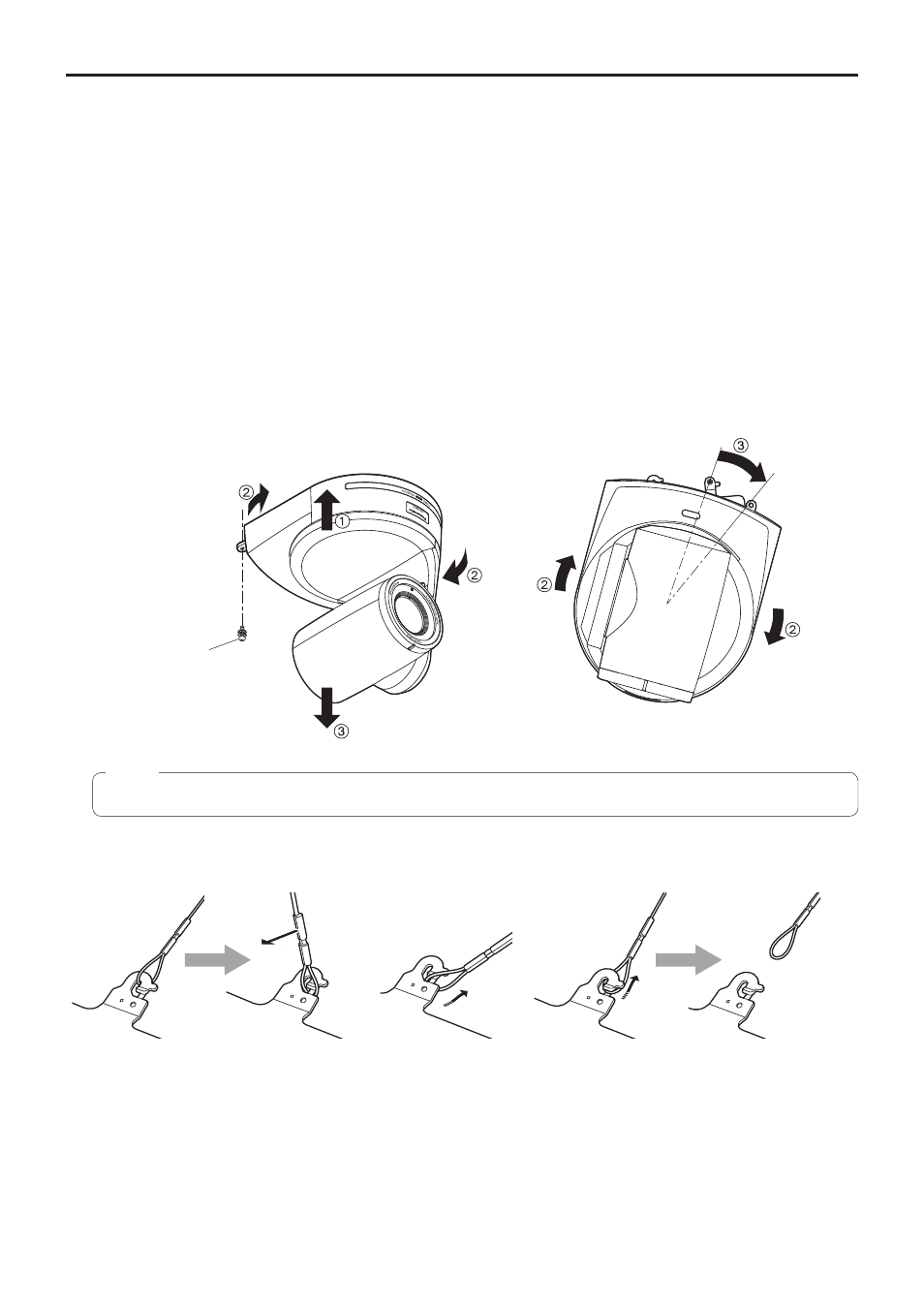

Push the unit (  ). Turn it approximately 20 degrees away from the installed position (  ),
and remove it (  ).
Main unit mounting
screw (M3 screw)
(with flat washer, spring
washer)
Approx.
20°
  Do not do this work while holding the camera head since doing so may result in malfunctioning of the unit.
Note
6
Disengage the drop-prevention wire from the mount bracket.
 Pull the drop-
prevention wire in the
direction shown by the
arrow above.
 Twist the wire, and
remove the wire loop
through the opening in
the hook.
 Pull the wire in the
direction shown by the
arrow above, and simply
pull it out.
