REV. A PN J63143 - 8 -

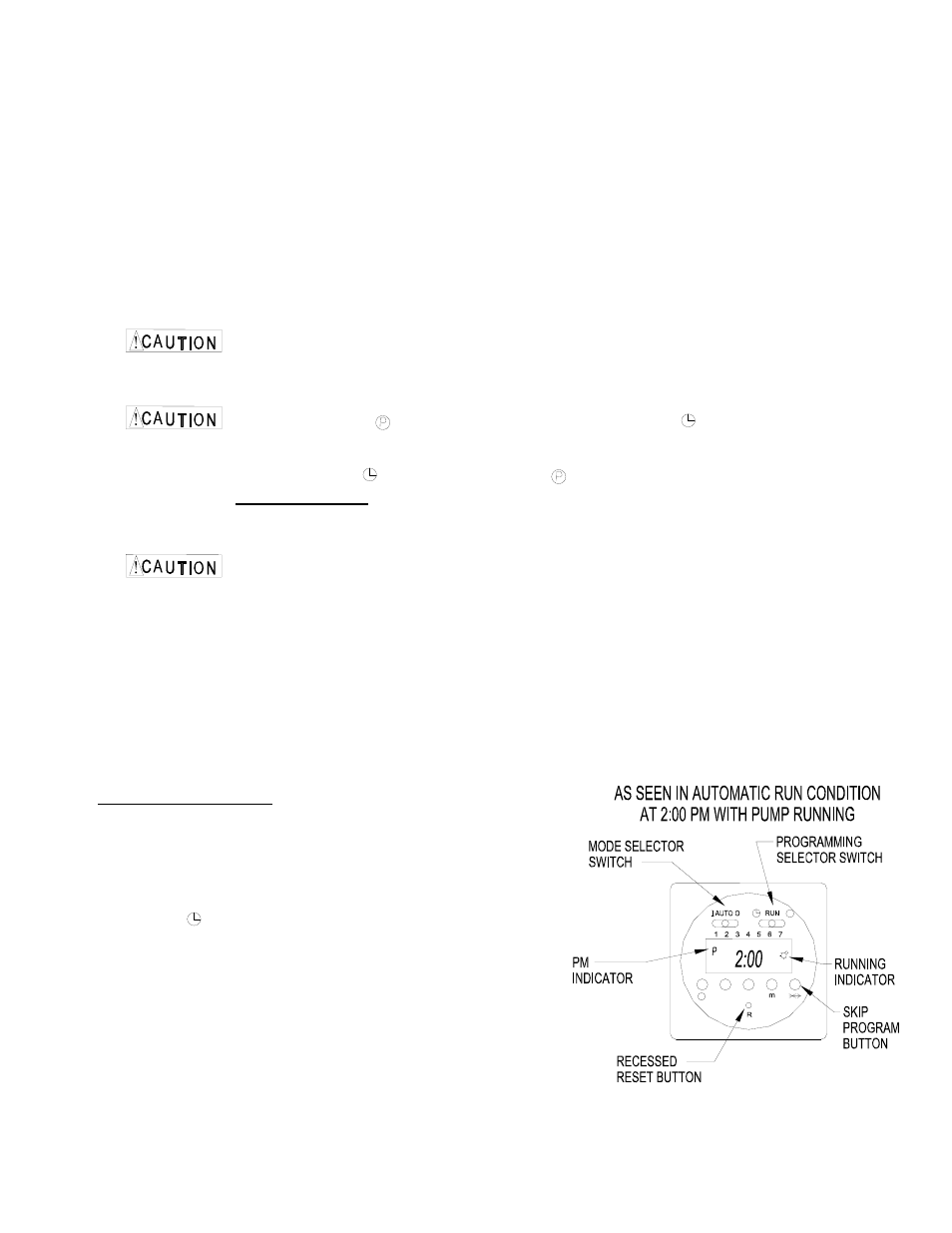

PUMP TIMER PROGRAMMING INSTRUCTIONS
1. Read all instructions first.
2. When programming or re-programming, use the program work sheet to set up the desired
program before entering the steps into the timer. Seeing the program on paper may avoid
errors and will make it easier to put the correct steps into the timer.
3. When re-programming, it is always best to use the ‘R’ reset button and re-program all cycles.
4. Avoid program sequences which overlap another program. Programs which start while
another program is in the ‘ON’ sequence will not activate.
5. An ‘EEE’ on the screen indicates an error in program sequence. To correct, push the ‘R’
reset button; reset time of day and day of week; then re-program.
6. Do not attempt to re-program while the timer is in the ‘ON’ sequence
unless the ‘R’ recessed reset button is pressed first and all sequences
are reprogrammed.
7. Do not press the ‘ ’ button while in the ‘time of day’ ( ) set mode. This may
cause an error in the time keeping program which will cause hours: minutes to
count in seconds. If this condition occurs, slide the programming selector
switch to the ‘ ’ position, press the ‘ ’ button and the ‘h’ button
at the sametime, then use the ‘h’ button to correct the time. When the time
of day is corrected, slide the programming selector switch back to the ‘RUN’
position.
8. Do not reset the time of day during an active cycle.
Wait to reset during an ‘OFF’
cycle or use ‘R’ reset button and follow the complete
instruction from the beginning.
9. All programming errors may be corrected by moving the right side button to the ‘RUN’
position and depressing the ‘R’ reset button. This will clear all memory, both ‘time of day’
and all programs. All desired programs and ‘time of day’ must be re-entered. Begin again at
step #1.
Setting Time of Day:
1. With the programming selector switch in ‘RUN’
position, push recessed reset button, ‘R’
(0:00 will flash on the display).
2. Slide the programming selector switch to the left
to the ‘ ’ time of day’ position, (0:00 will appear
on the display).
2a. Use the ‘ 1..7’ button to set ‘day of week’ using
‘1' as Monday. Put the day indicator ‘▲’ under
the day of week.
2b. Use the ‘h’ button to set hour. ‘P’ will appear on
the left side of the display to indicate P.M.
2c .Use the ‘m’ button to set minutes.
1..
P
h
