Atlantis Land 111U - Manual (Page 60)

60
Ordering your rules is important because the ADSL Router applies the rules in the
order that you specify. When a rule matches the current packet, the ADSL Router
takes the corresponding action and the remaining rules are ignored. If there are any
empty rules before your new configured rule, your configured rule will be pushed up
by that number of empty rules. For example, if you have already configured rules 1 to
6 in your current set and now you configure rule number 9. In the set summary
screen, the new rule will be rule 7, not 9. Now if you delete rule 4, rules 5 to 7 will be
pushed up by 1 rule, so old rules 5, 6 and 7 become new rules 4, 5 and 6.

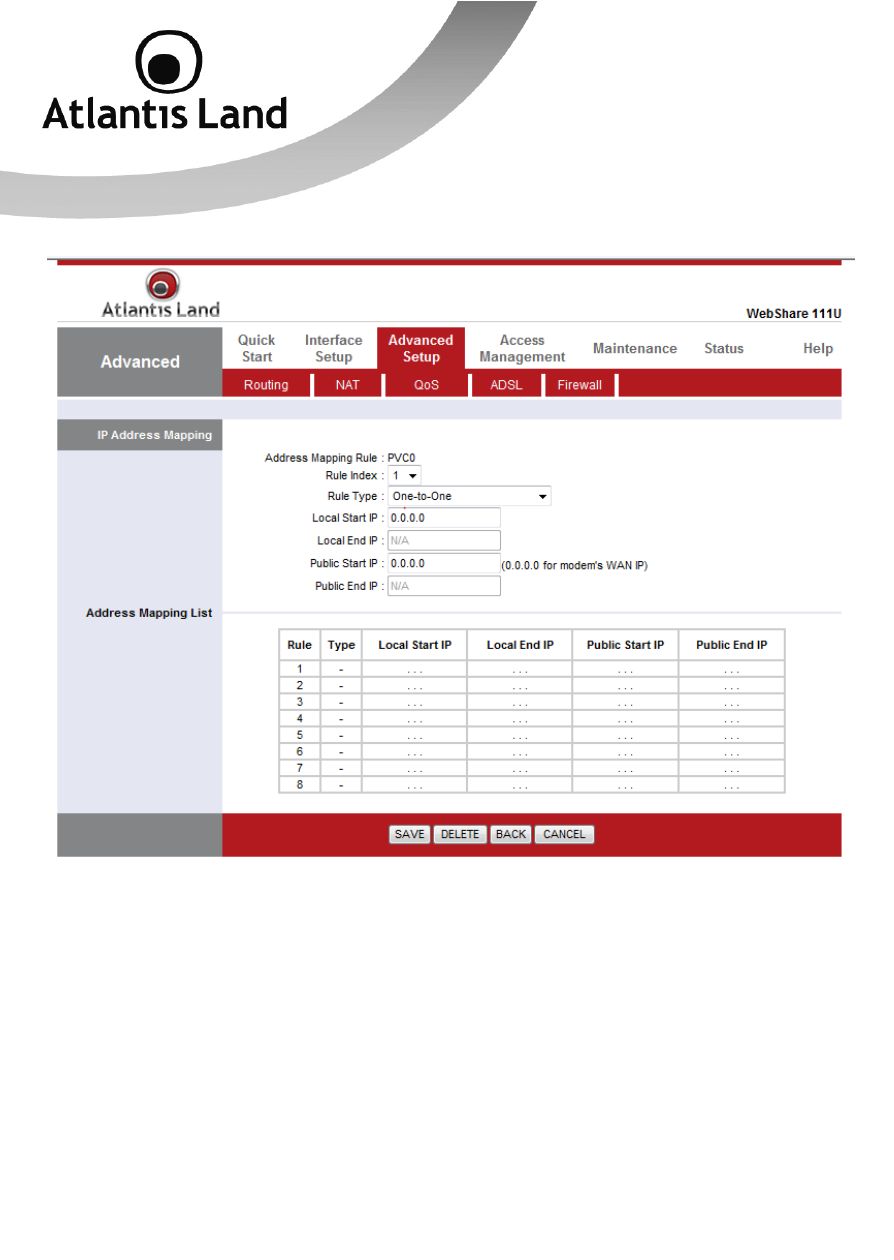

To change the ADSL Router’s address mapping settings.
