2.4 Cabling

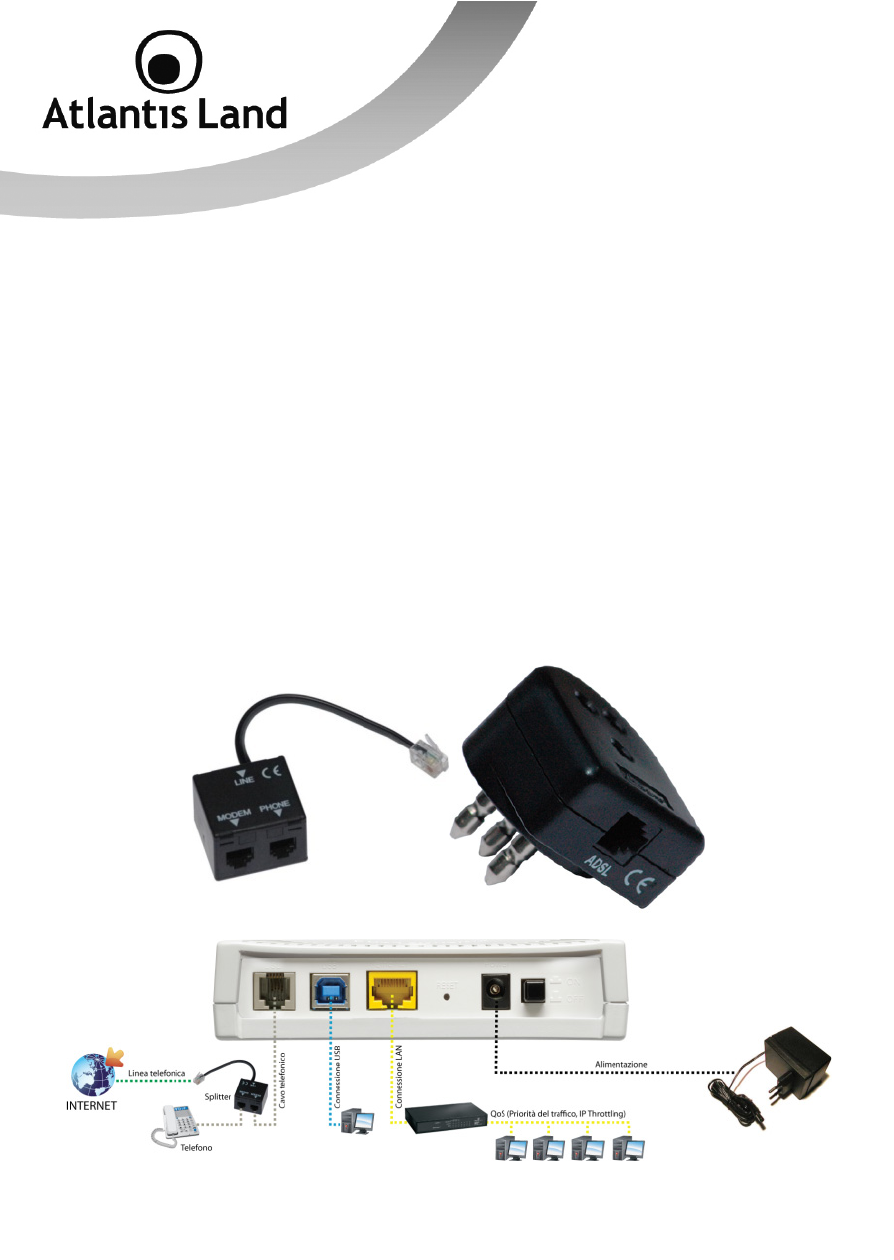

First you must connect the product to the ADSL line through the RJ11 cable you have

in equipment (in the port LINE) and connect the AC Adapter to the WebShare 111U

and then to the socket. Once you’ve checked all the connections and you’ve switched

on the Router the product will carry on immediately a diagnosis (about 10 seconds).

Finished this, the Led PWR will be fixed green and Led PPP will be fixed red; DSL will

blink during sinchonization, and will be fixed when ADSL line is synchronized with

WebShare 111U. If Led DSL blink continuously, please contact Your ISP in order to

check ADSL line state.

Ensure that all other devices connected to the same telephone line as your WebShare

(e.g. telephones, fax machines, analog modems) have a line filter (A01-AF2)

connected between them and the wall socket (unless you are using a Central Splitter

or Central Filter installed by a qualified and licensed electrician), and ensure that all

line filters are correctly installed and the right way around.
