ASUS M2N-Plus SLI Vista Edition 2-27

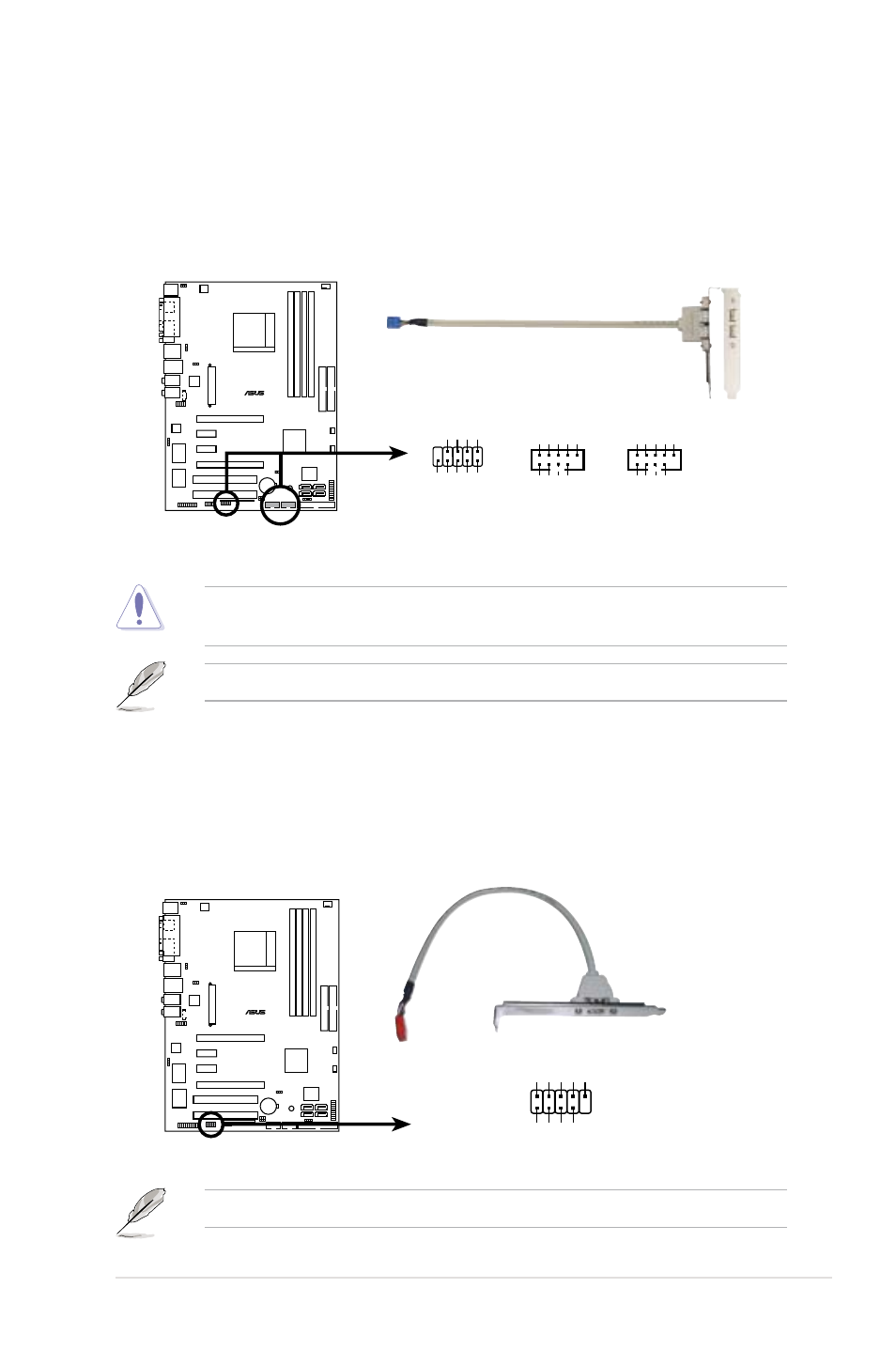

5. USB connectors (10-1 pin USB56, USB 78, ASAP)
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specification that supports up to 480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
6. IEEE 1394a port connector (10-1 pin IE1394_2)
This connector is for a IEEE 1394a port. Connect the IEEE 1394a module
cable to this connector, then install the module to a slot opening at the back
of the system chassis.
M2N-PLUS SLI
®
M2N-PLUS SLI IEEE 1394a connector
1
TP
A2
-
GN
D
TPB2
-
+12V GN
D
TP
A2
+
GN
D
TPB2
+
+12V
IE1394_2
M2N-PLUS SLI
®
M2N-PLUS SLI USB 2.0 connectors
ASAP
USB+5
V
USB_P6- USB_P6+ GN
D
NC
USB+5V USB_P5- USB_P5
+
GN
D
PIN1
NC
GND
USB_P10
+
USB_P10-
USB+5V
GND USB_P9+ USB_P9- USB+5V
PIN1
USB+5
V
USB_P6- USB_P6+ GN
D
NC
USB+5V USB_P5- USB_P5
+
GN
D
PIN1
USB56 USB78
The IEEE 1394a module is purchased separately.
The USB module is purchased separately.
