2-22 Chapter 2: Hardware information
2.7 Connectors

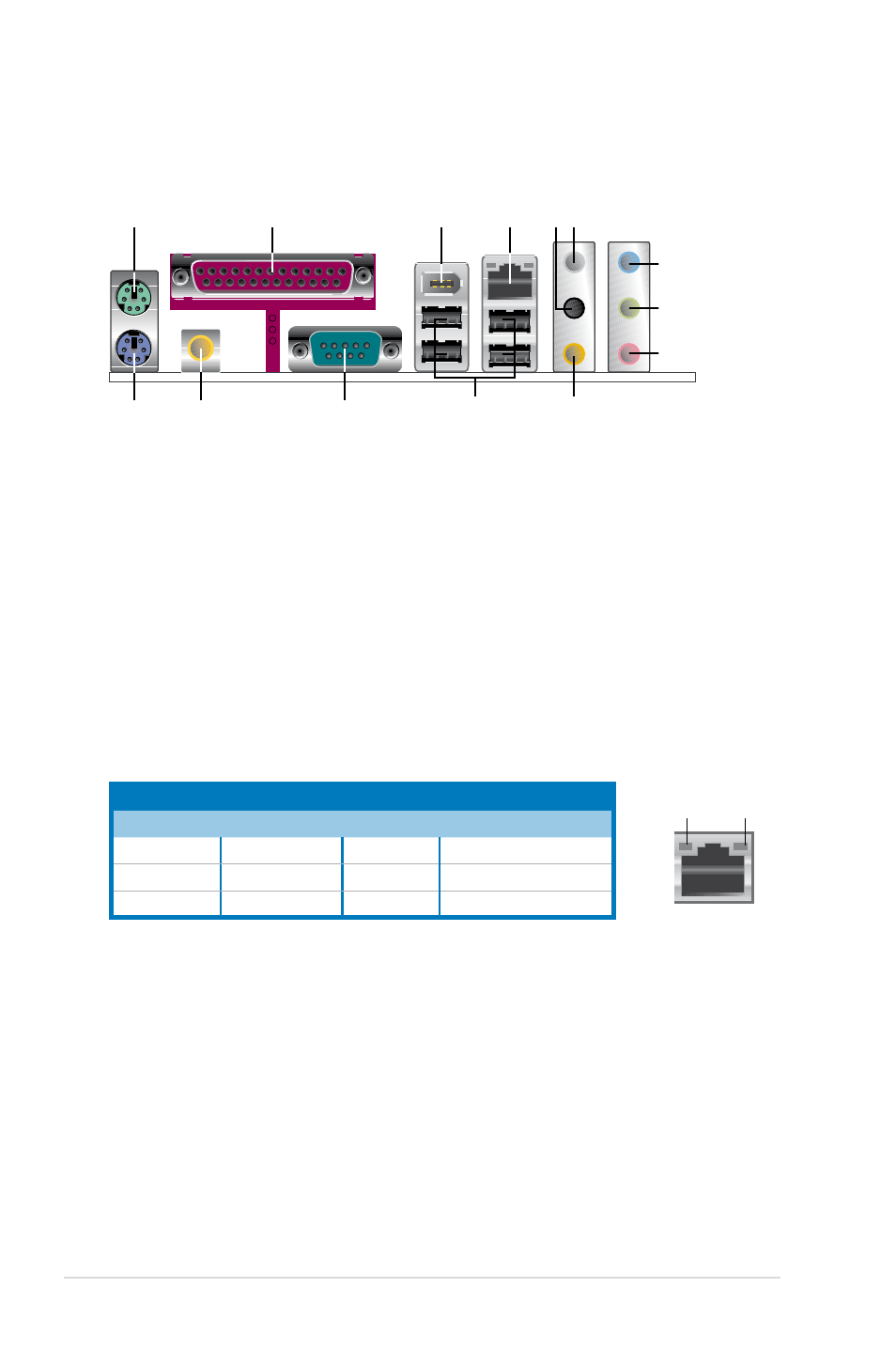

2.7.1 Rear panel connectors
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. IEEE 1394a port. This 6-pin IEEE 1394a port provides high-speed
connectivity for audio/video devices, storage peripherals, PCs, or portable
devices.
4. LAN (RJ-45) port. Supported by the NVIDIA ® nForce ™ 500 Gigabit MAC with
external Attansic PHY, this port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for the LAN
port LED indications.
5 1
14
2 4
12 13
7
8
9
3 6
10 11
LAN port LED indications
5. Rear Speaker Out port (black). This port connects the rear speakers in an
8-channel audio configuration.
6. Side Speaker Out port (gray). This port connects the side speakers in a
4-channel, 6-channel, or 8-channel audio configuration.
7. Line In port (light blue). This port connects the tape, CD, DVD player, or
other audio sources.
8. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this port
becomes Front Speaker Out.
SPEED
LED
ACT/LINK
LED
LAN port
Activity/Link Speed LED
Status
Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
