7 Testing the media server installation
LED indicators
74 Installing and Configuring the Avaya S8700 or S8710 Media Server
June 2004
S8710 Media Server LEDs
The S8710 Media Server has the LEDs shown in Figure 7, LEDs on front panel of S8710 Media Server,
on page 74 and Figure 8, LEDs on back panel of S8710 Media Server, on page 75.
Currently, there is no method to test the LEDs on the S8710 Media Server.

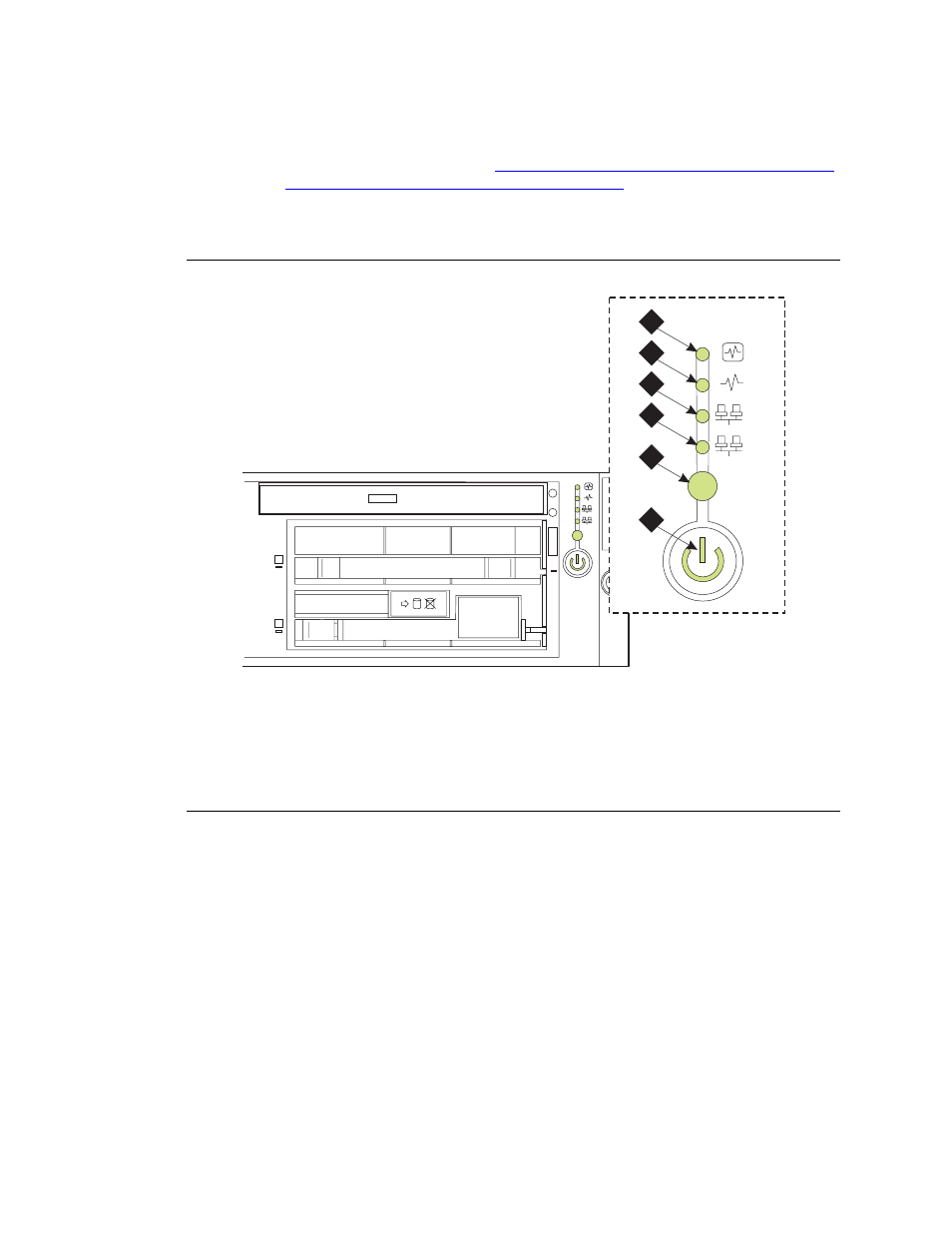

Figure 7: LEDs on front panel of S8710 Media Server
Figure notes
1 Internal health
2 Power supply
3 NIC 1 (Eth0) link/activity (GREEN)
4 NIC 2 (Eth1) link/activity (GREEN)
5 Active/Standby mode (BLUE)
6 Power on/standby button/system power
