3 Plug the other end of the video cable into the S-video input port (
æ
) or the composite
video input port (
˜
) on your computer.
If the connector doesn’t slide easily into the port, realign it and try again.
Don’t use force, which could damage the computer or cable.
4 Plug one end of the dual RCA plug cable into the left and right Audio Out ports on
the VCR.
5 Plug the other end of the dual RCA plug cable into the left and right audio input ports on
the back of your computer.
6 Plug the stereo miniplug cable into the sound input port (marked by
≈
) on the left side of
your AppleVision 850 AV Display.
7 Plug the RCA plug end of the stereo miniplug cable into the audio output ports of
your computer.

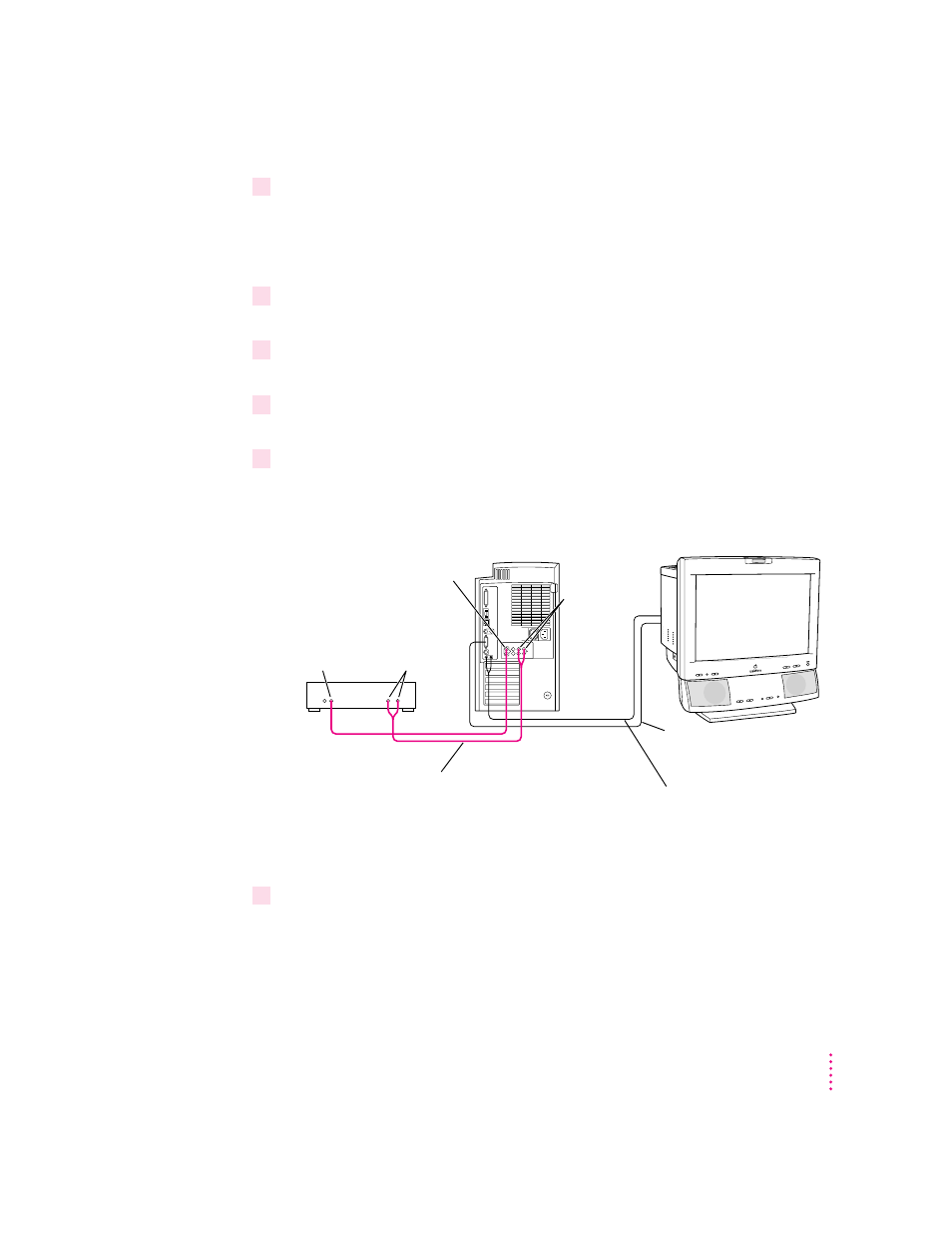

Your finished S-video connections should look like this:
If you use composite video connections, your finished connections will
be similar.
8 Turn on the computer, the monitor, and the VCR.
Dual RCA-plug cable
(available at most electronics supply stores)
Audio Out ports
(left and right)
VCR
Video Out
port
S-video
input port
æ
Audio
input ports
(left and right)
-
Sound cable
Monitor cable
(includes monitor connector
and ADB connector)
51 Using Sound and Video With Your AppleVision 850 A V Display
