7
VERTICAL CONTACT TOASTER
P/N 1010719 Rev. E 02/13

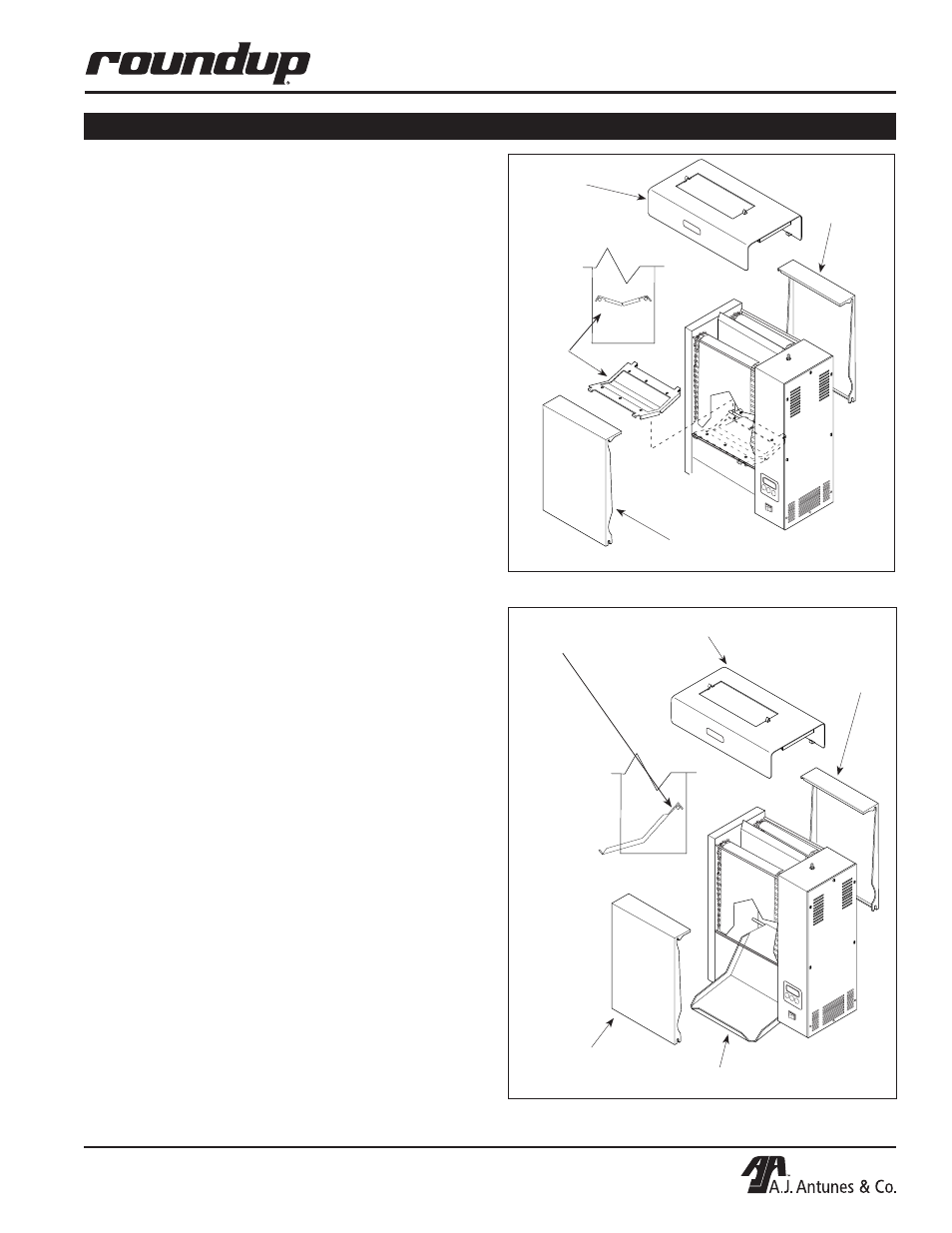

Figure 2. Installing Bun Chute
Bun Chute
Hook Bun Chute over rear
Conveyor Cover Rod
Figure 1. Installing Damper Assy.
Damper
Assy.
Heat Shield
Heat Shield
Conveyor
Cover Assy.
Conveyor
Cover Assy.
Conveyor
Cover Assy.
Conveyor
Cover Assy.
Unpacking
1. Remove unit and all packing materials from ship-
ping carton.
2. Open the large box. It should contain the follow-
ing items
• damper assembly (Figure 1).
• bun chute (Figure 2)
• plastic bag containing the
release sheet (Figure 4)
3. Remove all packing materials and protective cov-
erings from the unit and parts.
NOTE: If any parts are missing or damaged, con-
tact Antunes Technical Service IMMEDIATELY at
1-877-392-7854.
Assembling the Unit
1. Remove heat shield from top of the unit. Remove
the front and rear conveyor covers.
2. Install the damper assy. (Figure 1).
3. Install the bun chute (Figure 2).
4. Remove the release sheet from the plastic bag
and lay it on a clean, flat surface. Fold the sheet
exactly in half (Figure 3).
5. Crease the sheet at the fold using only your fin-
ger (Figure 3).
IMPORTANT: Do not use metal tools to crease the
sheet.
6. Install the release sheet by draping it over both
sides of the platen surface. The crease should
be centered directly on top of the platen (Figure
4).
7. Re-install the front and rear conveyor covers
(Figure 4).
8. Install the heat shield assy. The heat shield clips
fit over the top of the platen and retains the
release sheet (Figure 4).
IMPORTANT: Make sure heat shield assy. is acti-
vating (depressing) the conveyor interlock switch
(see Figure 4). The conveyors will not rotate
unless the heat shield is in place and interlock
switch is activated (depressed).
NOTE: Check the release sheet to make sure it is
not caught in the conveyor. Additional release
sheets can be obtained through your authorized
service agency under part no. 7000110 (3 pack) or
7000111 (10 pack).
INSTALLATION
